One Way Needle Roller Bearing
>
|
| Place of Origin | CHINA |
| Brand Name | SUMA |
| Certification | ISO SGS |
| Model Number | HFL3530 |

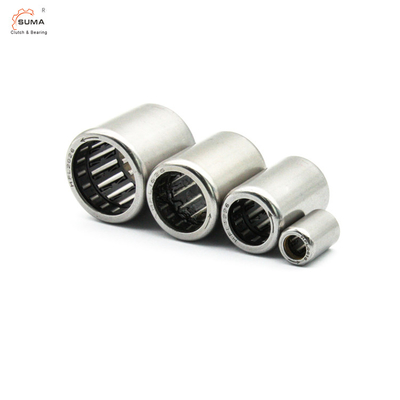

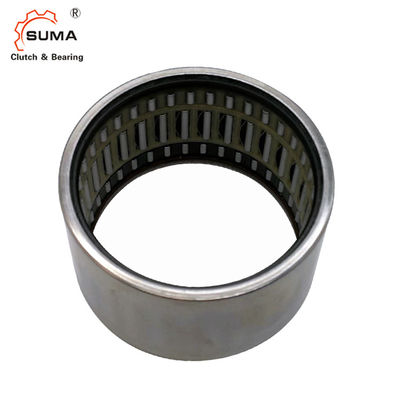

HFL3530 35*42*30mm Drawn Cup Bearing One Way Needle Clutch
Technical Datas
Drawn Cup Needle Roller Bearing - Roller Clutch with Bearing Assembly,
Can transmit torque in only one direction, with high lock accuracy .
HFL One way needle clutch use rolling elements to maintain a separation between moving parts to reduce rotational friction and support radial loads.
Despite having a small cross-section, the bearing still has a high load bearing capacity, needle roller bearings are equipped with thin and long rollers (roller diameter D≤5mm, L/D≥2.5, L is the roller length), so The radial structure is compact, and its inner diameter and load capacity are the same as those of other types of bearings, and the outer diameter is the smallest.
| Raceway Ring Shape | One Way Clutch | Load Direction | Radial |
|---|---|---|---|
| I.D.(Ø) | 35 | O.D.(Ø) | 42 |
| Width(mm) | 30 | Precision (JIS) | Grade 0 |
| Specifications | Standard | Allowable Torque(Nm) | 121 |
| Permissible speed in the case that the shaft is rotated | 3900 | Allowable Rotational Speed When the Outer Ring Rotates | 3900 |
Dimensions and Capacities
|
Shaft Dia. |
Clutch Designation | Mass |
Borndary Dimensions |
Torque | Limiting Speed |
Basic Load Ratings |
|||||
| Fw | D | C | Shaft | Outer Ring | C | Co | |||||
| Min-1 | Min-1 |
KN | |||||||||
| mm | Plastic Springs | Steel Springs | g | mm | Nm | rpm | |||||
| 3 | HFL0308KF | -- | 3 | 3 | 3.6 | 8 | 1 | -- | -- | -- | -- |
| 4 | HFL0408KF | -- | 3.5 | 4 | 8 | 8 | 1.5 | -- | -- | -- | -- |
| 6 | HFL0615KF | HFK0615 | 4 | 6 | 10 | 15 | 1.76 | 23000 | 13000 | -- | -- |
| HFL0615KFR | HFL0615R | 4 | 6 | 10 | 15 | 0.5 | 23000 | 13000 | -- | -- | |
| -- | HFL061012K | 5 | 6 | 10 | 12 | -- | 21000 | 12000 | -- | -- | |
| 8 | -- | HFL081212K | 6 | 8 | 12 | 12 | -- | 20000 | 12000 | -- | -- |
| -- | HFL081412K | 7 | 8 | 14 | 12 | -- | 19000 | 12000 | -- | -- | |
| HFL0822KF | HFL0822 | 7 | 8 | 12 | 22 | 3.15 | 17000 | 12000 | 4.05 | 4.15 | |
| HFL0822KFR | HFL0822R | 7 | 8 | 12 | 22 | 1 | 17000 | 12000 | -- | -- | |
| 10 | HFL1022KF | HFL1022 | 8 | 10 | 14 | 22 | 5.3 | 14000 | 11000 | 4.3 | 4.65 |
| HFL1022KFR | HFL1022R | 8 | 10 | 14 | 22 | 1.5 | 14000 | 11000 | -- | -- | |
| 12 | -- | HFL1226 | 18 | 12 | 18 | 26 | 12.2 | 11000 | 8000 | 6.3 | 6.5 |
| 14 | -- | HFL1426 | 20 | 14 | 20 | 26 | 17.3 | 9500 | 8000 | 7.1 | 7.7 |
| 16 | -- | HFL1626 | 22 | 16 | 22 | 26 | 20.5 | 8500 | 7500 | 7.7 | 9 |
| 18 | -- | HFL1826 | 25 | 18 | 24 | 26 | 24.1 | 7500 | 7500 | 8.3 | 10.3 |
| 20 | -- | HFL2026 | 27 | 20 | 26 | 26 | 28.5 | 7000 | 6500 | 8.9 | 11.5 |
| 25 | -- | HFL2530 | 44 | 25 | 32 | 30 | 66 | 5500 | 5500 | 10.9 | 14.1 |
| 30 | -- | HFL3030 | 51 | 30 | 37 | 30 | 90 | 4500 | 4500 | 12.6 | 17.6 |
| 35 | -- | HFL3530 | 58 | 35 | 42 | 30 | 121 | 3900 | 3900 | 13 | 19.3 |
