One Way Needle Roller Bearing
>
|
| Place of Origin | CHINA |
| Brand Name | SUMA |
| Certification | ISO SGS |
| Model Number | 1WC0809 EWC0809 |

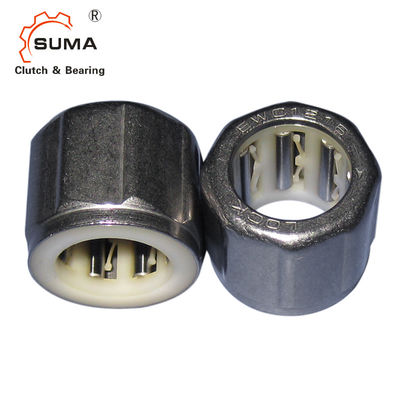

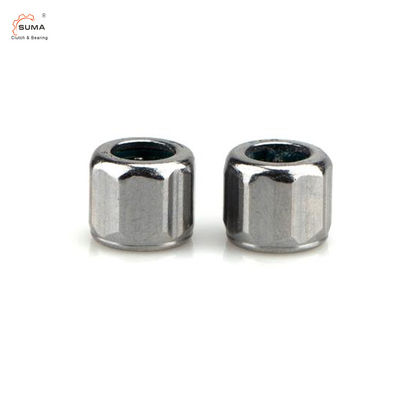

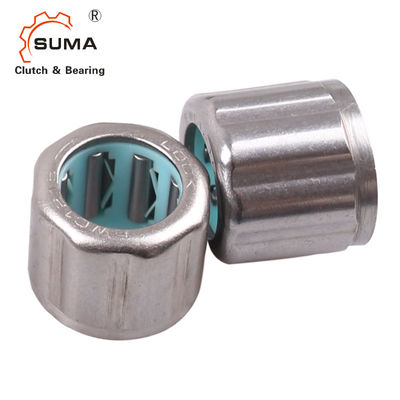

1WC0809 EWC0809 Fishing Reel One Way Needle Roller Bearing
Usage Life: Over Thousands times ( endurable torque capacity)
Material: ST14 Degree up to JGMA 6
Application: Fishing Reels, Juice extractor, Printer , Copier, etc
Remarks
Outer race: ST14 / Stainless Steel 304
Needle: Stainless steel 304
Cage: Nylon
Technical Datas of EWC one way needle roller bearings
| Item | EWC( Plastic Spring ) | 1WC ( Metal Spring ) | |
| Heavy Type | Light Type | Heavy Type | |
| EWC...C | EWC...A | 1WC | |
| Load | Heavy Load | Light Load | Heavy Load |
| Working Temperature | 10-700C | 10-900C | |
Dimensions and Capacities
|
Shaft Dia. MM |
Model | Weight | DIMENSION | Torque Capacity | |||
| g | Inner Dia. FW |
Outer Dia. D1-D2 |
Height B |
(N.m) | (kgf.cm) | ||
| 4 | EWC0406 | 1.2 | 4 | 8-8.4 | 6 | 0.08 | 0.8 |
| 1WC0406 | 1.5 | 4 | 8-8.4 | 6 | 0.15 | 1.5 | |
| 6 | EWC0606 | 2 | 6 | 8-8.4 | 6 | 0.19 | 1.9 |
| 1WC0606 | 2.2 | 6 | 8-8.4 | 6 | 0.33 | 3.5 | |
| EWC0608 | 2.2 | 6 | 10-10.4 | 8 | 0.25 | 2.5 | |
| 1WC0608 | 2.5 | 6 | 10-10.4 | 8 | 0.45 | 4.5 | |
| 1WC0612 | 3 | 6 | 10-10.4 | 12 | 0.9 | 9.5 | |
| 8 | EWC088.5 | 2.5 | 8 | 12-12.4 | 8.5 | 0.5 | 5.5 |
| EWC0809 | 2.5 | 8 | 12-12.4 | 9 | 0.88 | 9 | |
| EWC0812 | 5.5 | 8 | 14.2-15 | 12 | 1.18 | 12 | |
| 1WC0812 | 6 | 8 | 14.2-15 | 12 | 1.96 | 20 | |
| 1WC0815 | 8 | 8 | 14.2-15 | 15 | 2.65 | 27 | |
| 10 | EWC1007 | 7 | 10 | 16-17 | 7 | 1.2 | 10 |
| EWC1008 | 8 | 10 | 16-17 | 8 | 1.85 | 19 | |
| 1WC1009 | 8.5 | 10 | 14-14.4 | 9 | 2.25 | 23 | |
| EWC1010 | 8 | 10 | 16-17 | 10 | 1.18 | 12 | |
| 1WC1010 | 9 | 10 | 16-17 | 10 | 1.98 | 20 | |
| EWC1012 | 10 | 10 | 16-17 | 12 | 1.37 | 14 | |
| 1WC1012 | 11 | 10 | 16-17 | 12 | 2.35 | 24 | |
| 12 | EWC1209 | 10 | 12 | 18-19 | 9 | 3.04 | 31 |
| EWC1216 | 12 | 12 | 18-19 | 16 | 6.29 | 64 | |
| 1WC1216 | 13 | 12 | 18-19 | 16 | 7.3 | 75 | |
