RC040708 Drawn Cup One Way Needle Roller Clutch Bearing

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: RC040708
Minimum Order Quantity: 1
Price: USD0.25-USD0.3 PER PIECE
Packaging Details: Carton Box
Delivery Time: 2 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 100000PCS Per Month
Product Name: Needle Roller Bearing RC040708 Material: GCr15 Bearing Steel
Unit Weight: 0.0035Kg Torque Capacity: 1.9Nm
OEM: Accept Port: Shanghai Ningbo
Size: 6.35*11.112*12.7mm
High Light:

RC040708

,

One Way Needle Roller Clutch Bearing

,

Drawn Cup Needle Roller Clutch Bearing

            RC040708 Drawn Cup One Way Needle Roller Clutch Bearing

Technical Datas



RC040708 bearing is One Way Clutch Shell Cup Caged Needle Roller Bearing with Plastic Springs

Sizes: ID 1/4" x OD 7/16" x L 1/2" Inches

This RC040708 drawn cup roller clutch with a plastic cage transmits torque between the shaft and housing in one direction and allows free overrun in the opposite direction. The drawn cup outer steel shell provides a small cross-section for use in restricted spaces, and serves as a raceway for the rollers.

 This drawn cup roller clutch is used in various applications, such as athletic equipment, paper towel dispensers, office machines, and appliances, among others.



Dimensions and Capacities

RC040708 Drawn Cup One Way Needle Roller Clutch Bearing 0

FC, FCB RC, RCB
Bearing Mass Approx



Designation

Bearing Designation Mass Approx



Designation

Fw D C Torque  Fw D C Torque
g mm Nm g mm Nm
FC4K 1 4 8 6 0.34 RC040708 3.5 6.35 11.112 12.7 1.9
FC6 3 6 10 12 1.76 RC040708-FS 3.5 6.35 11.112 12.7 1.9
FC6K 3 6 10 12 1.76 RC061008 4.7 9.525 15.875 12.7 4.83
FC8 4 8 14 12 5.3 RC061008-FC 4.7 9.525 15.875 12.7 4.83
FCL8K 3.5 8 12 12 5 RC081208 9.2 12.7 19.05 12.7 7.9
FC10 4.8 10 16 12 6 RC081208-FS 9.2 12.7 19.05 12.7 7.9
FCL10K 4 10 14 12 5.3 RC101410 14.5 15.875 22.225 15.88 15.4
FC12 11 12 18 16 12.2 RC101410-FC 14.5 15.875 22.225 15.88 15.4
FC14K 13 14 20 16 17.3 RC121610 17 19.05 25.4 15.88 20.9
FC16 14 16 22 16 20.5 RC121610-FS 17 19.05 25.4 15.88 20.9
FC20 17 20 26 16 28.5 RC162110 16.2 25.4 33.338 15.88 45
FC25 30 25 32 20 66 RC162110-FC 16.2 25.4 33.338 15.88 45
FC30 36 30 37 20 90 RCB061014 12 9.525 15.875 22.22 4.83
FC35 40 35 42 20 121 RCB061014-FS 12 9.525 15.875 22.22 4.83
FCB8 10 14 14 20 5 RCB081214 16 12.7 19.05 22.22 7.9
FCB10 15 16 16 20 10 RCB081214-FC 16 12.7 19.05 22.22 7.9
FCB12 18 18 18 26 12.2 RCB101416 21.3 15.875 22.225 25.4 15.4
FCB16 22 22 22 26 20.5 RCB101416-FS 21.3 15.875 22.225 25.4 15.4
FCB20 27 26 26 26 28.5 RCB121616 26.5 19.05 25.4 25.4 20.9
FCB25 44 32 32 30 66 RCB121616-FC 26.5 19.05 25.4 25.4 20.9
FCB30 51 37 37 30 90 RCB162117 44.8 25.4 33.338 26.99 45
FCB35 58 42 42 30 121 RCB162117-FS 44.8 25.4 33.338 26.99 45
Pictures

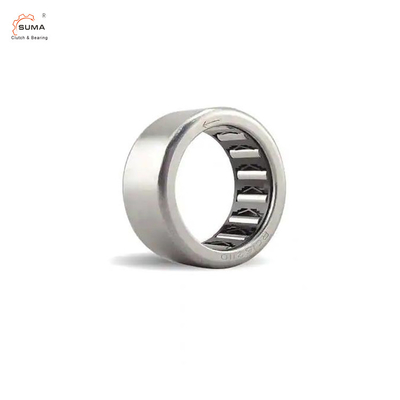

RC040708 Drawn Cup One Way Needle Roller Clutch Bearing 1

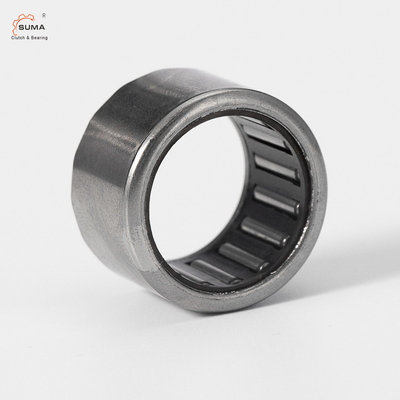

RC040708 Drawn Cup One Way Needle Roller Clutch Bearing 2

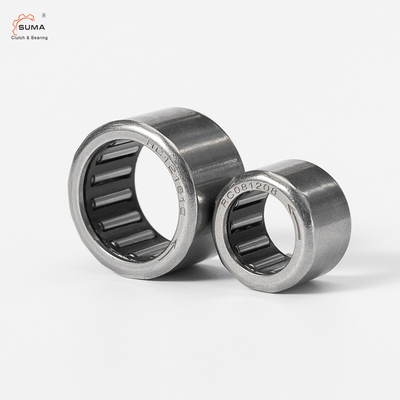

RC040708 Drawn Cup One Way Needle Roller Clutch Bearing 3

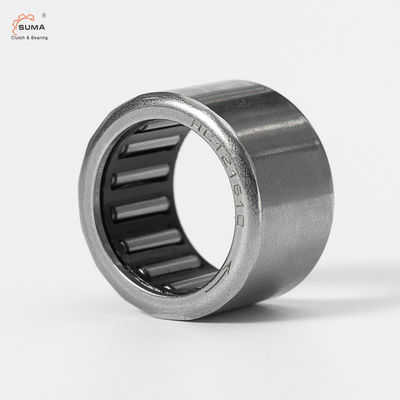

RC040708 Drawn Cup One Way Needle Roller Clutch Bearing 4
