OWC814GXRZ / OWC814RXLZ Powder Metallurgy Needle Roller Bearing
  • OWC814GXRZ / OWC814RXLZ Powder Metallurgy Needle Roller Bearing
  • OWC814GXRZ / OWC814RXLZ Powder Metallurgy Needle Roller Bearing
  • OWC814GXRZ / OWC814RXLZ Powder Metallurgy Needle Roller Bearing

OWC814GXRZ / OWC814RXLZ Powder Metallurgy Needle Roller Bearing

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number OWC612GXRZ / OWC612RXLZ
Product Details
Product Name:
OWC814GXRZ / OWC814RXLZ
Material:
Powder Metallurgy
Size:
8*14*5.4MM
Torque:
5.2Nm
Package:
Roll Pack + Carton Box
Warranty:
3 Months
Port:
ShangHai / NingBo
OEM:
Accept
High Light:

Powder Metallurgy Needle Roller Bearing

,

5.2Nm Needle Roller Bearing

,

ISO One Way Needle Roller Bearing

Payment & Shipping Terms
Minimum Order Quantity
10
Price
USD0.4-USD0.48 PER PIECE
Packaging Details
Roll pack + Carton Box
Delivery Time
2-5 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability
100000 PCS PER MONTH
Product Description

OWC814GXRZ / OWC814RXLZ Powder Metallurgy Needle Roller Bearing



Features

  OWC is a one way needle clutch which applied flexibly of the technology of small bearings ,and make the structure more compact as well as higher performance.

Material

The outer ring of OWC one-way clutch is made by sintered metal , and the spring is made by stainless steel . As the basic part of the clutch does not use resin , it is hard to be affected by external environment.

Characterristic

1. the structure is all metal ,which gives full play to the excellent heat resistant characteristic.

2. Short in diameter and thin in depth ,which makes the miniaturization of machine become possible.

3. Two standard : clockwise (R type) and anticlockwise (L type)

4. Because of the protection of protective layer, OWC needle roller clutch can provide the performance of single functional components.

5. The gears and pulleys (made by resin) are easily pushed ,which makes one way clutch easily to assemble.



Application

1. currency counting machine

2. automatic fishing device



Dimensions and Capacities

OWC814GXRZ / OWC814RXLZ Powder Metallurgy Needle Roller Bearing 0

Model Weight DIMENSION (mm) Driving Torque
g Inner Dia. Outer Dia. Height ( Nm )
OWC406GXRZ 1.6 4 8 6.0 2.5
OWC406GXRZ
OWC408GXRZ 1.8 4 8 8.0 3.1
OWC408GXLZ
OWC410GXRZ 1.8 4 10 5.4 2.8
OWC410GXLZ
OWC511GXRZ 2 5 11 5.4 3.5
OWC511GXLZ
OWC610GXRZ 2.38 6 10.2 8.0 4.6
OWC610GXLZ
OWC612GXRZ 2.3 6 12 5.4 5.2
OWC612GXLZ
OWC612GXRZ-8.4 2.3 6 12 8.4 5.2
OWC612GXLZ-8.4
OWC812GXRZ 2.8 8 12

5.0



5.8
OWC812GXLZ
OWC814GXRZ 2.8 8 14 5.4 6.1
OWC814GXLZ
OWC814GXRZ-8.4 2.8 8 14.3 8.4 6.1
OWC814GXLZ-8.4
OWC1016GXRZ 3 10 16 5.4 9.5
OWC1016GXLZ
OWC1019GXRZ 8.5 10 19 11.0 19.8
OWC1019GXLZ
OWC173512 22.5 17 35 12.0 78
OWC173516 25.5 17 35 16.0 95
OWC203316 23 20 33 16.0 108



Pictures

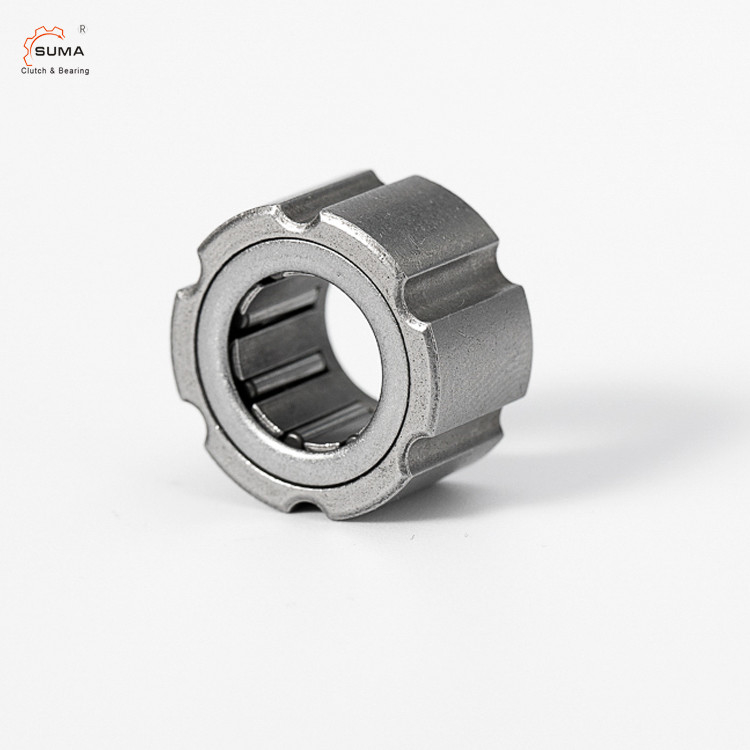

OWC814GXRZ / OWC814RXLZ Powder Metallurgy Needle Roller Bearing 1

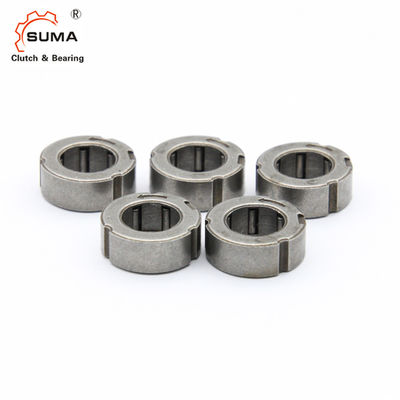

OWC814GXRZ / OWC814RXLZ Powder Metallurgy Needle Roller Bearing 2

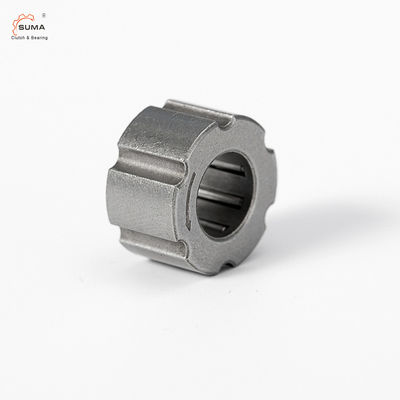

OWC814GXRZ / OWC814RXLZ Powder Metallurgy Needle Roller Bearing 3
