ASNU8 ASNU12 ASNU15 Freewheel Roller Clutch Bearing One Way
for Printing Machinery
Features
ASNU NFS TFS is a roller type freewheel non-bearing supported. Bearing are supporte axil and radial load. Lubrication and sealing must be also provided by installation.
Since ASNU NFS type one way clutch is a roller type without bearing supported, bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. The inner race is keyed to the shaft.
The outer race has positive n6 tolerance, to give a press fitin a H7 housing.
Dimensions and Capacities
Type | Size |
TKN1) |
Overrunning Speeds |
Weight
|
Drag torque | |||||||||
ASNU (NFS) |
dH7 | nimax2) | namax3) | Dn6 | D5 | L | b | t | s | e | f | TR | ||
[mm] | [Nm] | [min-1] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | [Ncm] | |
8 | 12 | 3300 | 5000 | 35 | 28 | 13 | 4 | 1.4 | 2.4 | 0.6 | 0.3 | 0.07 | 1.6 | |
12 | 12 | 3300 | 5000 | 35 | 28 | 13 | 4 | 1.4 | 2.4 | 0.6 | 0.3 | 0.06 | 1.6 | |
15 | 30 | 2400 | 3600 | 42 | 37 | 18 | 5 | 1.8 | 2.4 | 0.8 | 0.3 | 0.11 | 1.9 | |
17 | 49 | 2300 | 3400 | 47 | 40 | 19 | 5 | 2.3 | 2.4 | 1.2 | 0.8 | 0.15 | 1.9 | |
20 | 78 | 2100 | 3100 | 52 | 42 | 21 | 6 | 2.3 | 2.4 | 1.2 | 0.8 | 0.19 | 1.9 | |
25 | 125 | 1700 | 2600 | 62 | 51 | 24 | 8 | 2.8 | 2.4 | 1.2 | 0.8 | 0.38 | 5.6 | |
30 | 255 | 1400 | 2200 | 72 | 60 | 27 | 10 | 2.5 | 2.4 | 1.8 | 1 | 0.54 | 14 | |
35 | 383 | 1200 | 1900 | 80 | 70 | 31 | 12 | 3.5 | 2.4 | 1.8 | 1 | 0.74 | 16 | |
40 | 538 | 1100 | 1700 | 90 | 78 | 33 | 12 | 4.1 | 2.5 | 1.8 | 1 | 0.92 | 38 | |
45 | 780 | 1000 | 1600 | 100 | 85 | 36 | 14 | 4.6 | 2.5 | 1.8 | 1 | 1.31 | 43 | |
50 | 1013 | 850 | 1350 | 110 | 92 | 40 | 14 | 5.6 | 2.5 | 1.8 | 1 | 1.74 | 55 | |
60 | 1825 | 750 | 1050 | 130 | 110 | 46 | 18 | 5.5 | 3.6 | 2.6 | 1.5 | 2.77 | 110 | |
70 | 2300 | 600 | 950 | 150 | 125 | 51 | 20 | 6.9 | 3.6 | 2.6 | 1.5 | 4.16 | 140 | |
80 | 3275 | 550 | 850 | 170 | 140 | 58 | 20 | 7.5 | 3.6 | 2.6 | 1.5 | 6.09 | 180 | |
90 | 5325 | 500 | 750 | 190 | 160 | 64 | 20 | 8 | 3.6 | 2.6 | 2 | 8.2 | 230 | |
100 | 7250 | 450 | 680 | 215 | 175 | 73 | 24 | 8.5 | 3.6 | 2.6 | 2 | 12.6 | 380 | |
120 | 13500 | 370 | 550 | 260 | 215 | 86 | 28 | 10 | 3.6 | 2.6 | 2.5 | 22 | 650 | |
150 | 26625 | 300 | 460 | 320 | 260 | 108 | 32 | 12 | 3.6 | 3.6 | 2.5 | 42 | 1000 | |
200 | 44500 | 230 | 350 | 420 | 350 | 138 | 45 | 16 | 7.6 | 3.6 | 3 | 93 | 2000 |
NOTES
ASNU8-12, ASNU200 keyway to DIN 6885. 1,
other sizes to DIN 6885.3
1) T max = 2 X T KN
2) Inner race overruns
3) Outer race overruns
Mounting Example

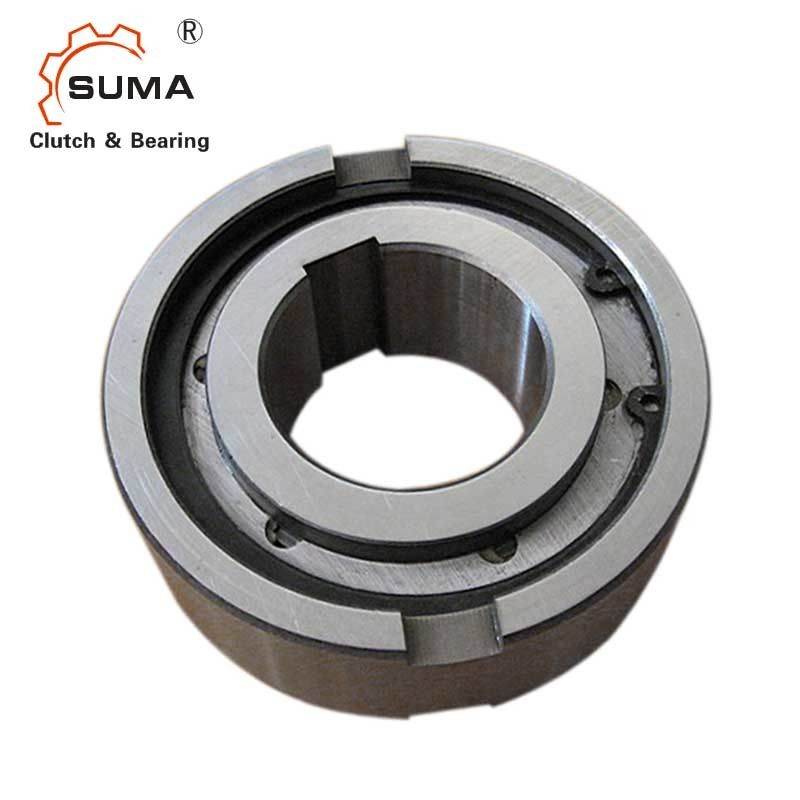

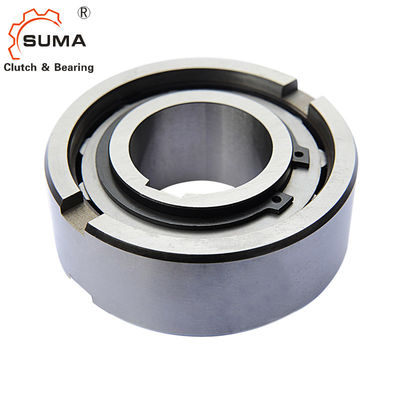

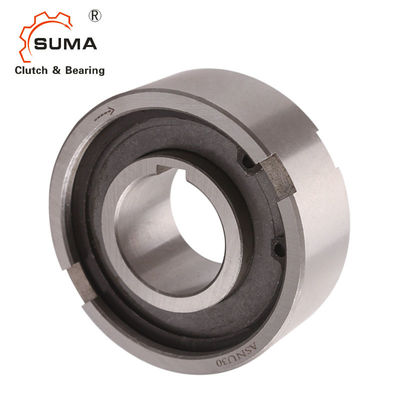

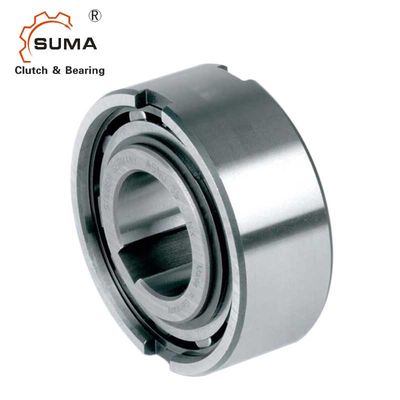

Pictures
