| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SUMA |
| Certification: | ISO SGS |
| Model Number: | AA12 AA15 |
| Minimum Order Quantity: | 1 |
| Price: | USD40-USD60PER PIECE |
| Packaging Details: | Carton Box |
| Delivery Time: | 10-15 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, Paypal |
| Supply Ability: | 1000PCS Per Month |
| Product Name: | Roller Type Freewheel AA12 / AA15 | Material: | GCr15 Bearing Steel |
|---|---|---|---|
| Torque Capacity: | 17Nm / 55Nm | Rotation Speed: | 3100 RPM / 2500RPM |
| Unit Weight: | 0.21 Kg / 0.44Kg | Warranty: | 1 Year |
| Size: | 12*47*20 / 15* 55*30 | OEM: | Accept |
| High Light: | AA12 Roller type Freewheel,Non Bearing Supported Roller type Freewheel,AA12 non bearing freewheel |
||

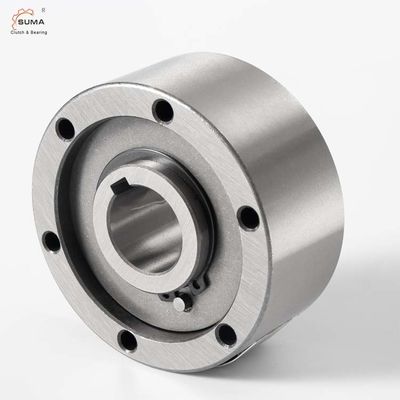

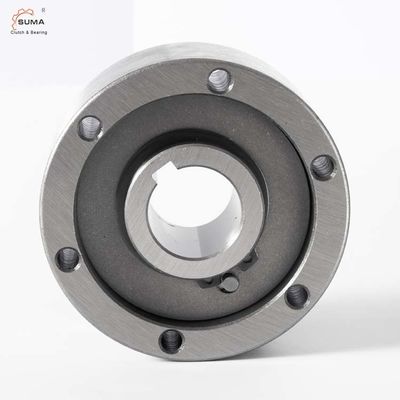

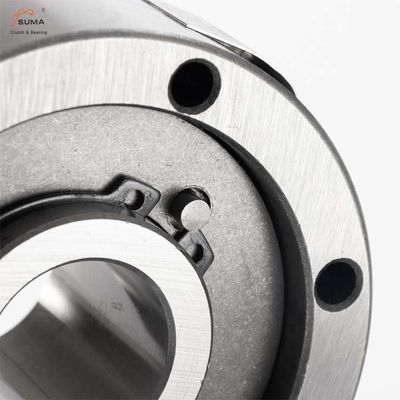

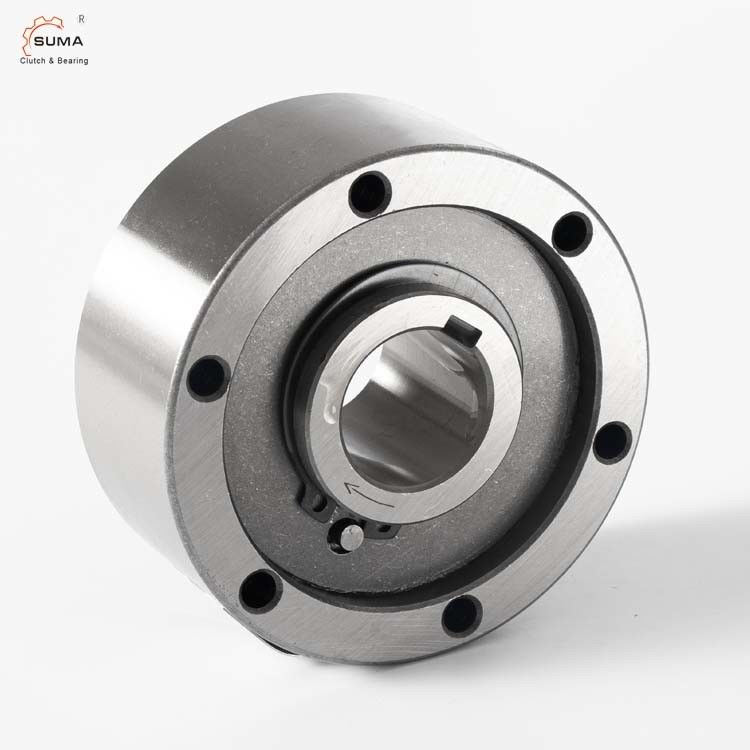

AA12 AA15 Non-Bearing Supported One Way Roller Type Freewheel
Technical Datas
| SPECIFICATION | |
| Model | AA12 / AA15 |
| Material | GCr15 |
| Inner diameter | 12 mm / 15mm |
| Outer diameter | 47 mm / 55mm |
| Thickness | 20mm / 30mm |
| Torque capacity | 17Nm / 55Nm |
| Drag Torque | 0.7 Ncm / 3.5Ncm |
| Inner race overrunning speed | 3100r/min |
| Outer race overrunning speed | 6000r/min |
| Weight | 0.21 kg / 0.44kg |
| Structure | Roller type |
| Application | Textile machine, fans, ventilators, printing machine |
| Package | Carton Box, Wooden Box or Customized |
| Payment terms | TT. L/C, D/A,D/P,Western Union, Paypal |
| Delivery time | 2-4 days for the sample, 7 days for big order |
Features
Type AA is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads.
This design can accept an axial misalignment of inner and outer race of ± S/2.
Lubrication and sealing must also be provided by the installation.
Standard lubrication is oil.
The inner race is keyed to the shaft. The fit for centering of the outer race must be to H7 tolerance.
Connection of the outer race is via through bolts to grade 10.9 or better.
Dimensions and Capacities
| Size | TK1 | Overrunning speeds | Weight |
Drag torque |
||||||||||
| dH7 | Nimax2) | Namax3) | Dh7 | D5 | D6 | D3 | Z | O | L | f | s | (kg) | TR | |
| (mm) | (Nm ) | (min-1) | (min-1) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (Ncm) | |
| 12 | 17 | 3100 | 6000 | 47 | 28 | 20 | 38 | 3 | 5.5 | 20 | 0.5 | 4.5 | 0.21 | 0.7 |
| 15 | 55 | 2300 | 5400 | 55 | 37 | 26 | 45 | 3 | 5.5 | 30 | 0.8 | 4.5 | 0.44 | 3.5 |
| 20 | 146 | 2000 | 3600 | 68 | 50 | 35 | 58 | 4 | 5.5 | 34 | 0.8 | 5.5 | 0.7 | 8.4 |
| 25 | 285 | 1700 | 2600 | 90 | 68 | 45 | 7 | 6 | 5.5 | 37 | 1 | 6.5 | 1.3 | 14 |
| 30 | 500 | 1500 | 2100 | 100 | 75 | 50 | 87 | 6 | 6.6 | 44 | 1 | 6.5 | 2 | 23 |
| 35 | 720 | 1300 | 1950 | 110 | 80 | 55 | 96 | 6 | 6.6 | 48 | 1 | 6.5 | 2.6 | 60 |
| 40 | 1030 | 1200 | 1700 | 125 | 90 | 60 | 108 | 6 | 9 | 56 | 1.5 | 7.6 | 3.9 | 72 |
| 45 | 1125 | 1050 | 1500 | 130 | 95 | 65 | 112 | 8 | 9 | 56 | 1.5 | 7.6 | 4 | 140 |
| 50 | 2150 | 950 | 1300 | 150 | 110 | 75 | 132 | 8 | 9 | 63 | 1.5 | 7.6 | 6 | 180 |
| 55 | 2675 | 850 | 1200 | 160 | 115 | 82 | 138 | 8 | 11 | 67 | 2 | 7.6 | 7.2 | 190 |
| 60 | 3500 | 800 | 1100 | 170 | 125 | 90 | 150 | 10 | 11 | 78 | 2 | 7.6 | 9.2 | 240 |
| 70 | 5813 | 650 | 900 | 190 | 140 | 100 | 165 | 10 | 11 | 95 | 2.5 | 7.6 | 11.8 | 320 |
NOTES
1) T max = 2 x T KN
2) Inner race overruns
3) Outer race overruns
Keyway to DIN 6885.1
