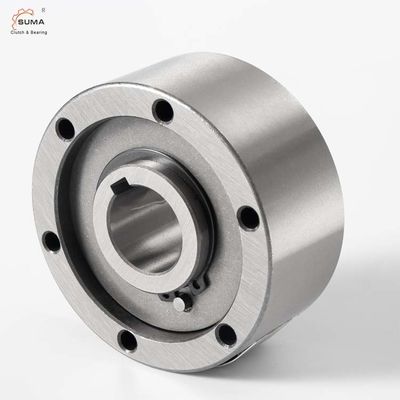

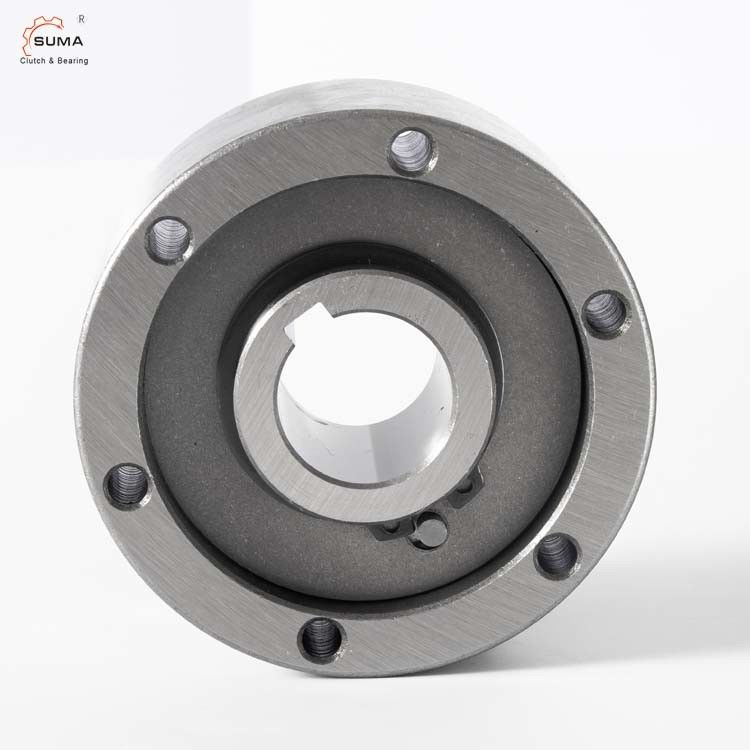

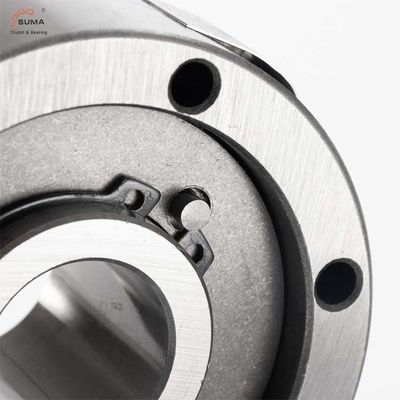

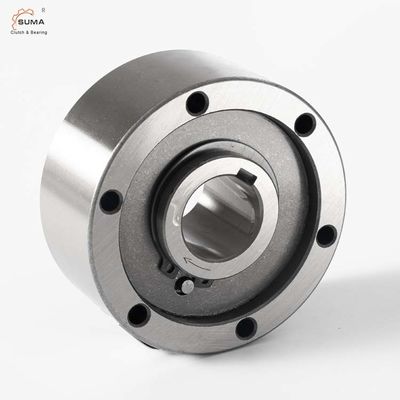

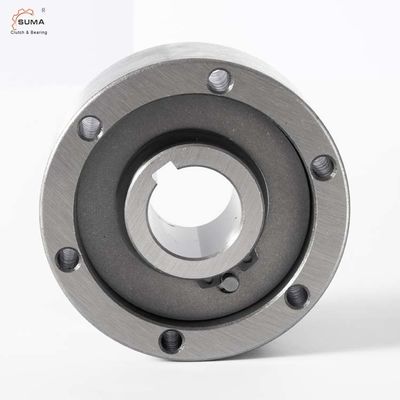

AA45 45*130*56MM Roller Type One Way Clutch Freewheel Indexing Bearing
Features
Type AA is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads.
This design can accept an axial misalignment of inner and outer race of ± S/2.
Lubrication and sealing must also be provided by the installation.
Standard lubrication is oil.
The inner race is keyed to the shaft. The fit for centering of the outer race must be to H7 tolerance.
Connection of the outer race is via through bolts to grade 10.9 or better.
Technical Datas
| SPECIFICATION | |
| Model | AA45 |
| Material | GCr15 |
| Inner diameter | 45mm |
| Outer diameter | 130mm |
| Thickness | 56mm |
| Torque capacity | 1125Nm |
| Drag Torque | 140Ncm |
| Inner race overrunning speed | 1050r/min |
| Outer race overrunning speed | 1500r/min |
| Weight | 4 kg |
| Structure | Roller type |
| Application | Textile machine, fans, ventilators, printing machine |
| Package | Carton Box, Wooden Box or Customized |
| Payment terms | TT. L/C, D/A,D/P,Western Union, Paypal |
| Delivery time | 2-4 days for the sample, 7 days for big order |
Dimensions and Capacities
| Size | TK1 | Overrunning speeds | Weight |
Drag torque |
||||||||||
| dH7 | Nimax2) | Namax3) | Dh7 | D5 | D6 | D3 | Z | O | L | f | s | (kg) | TR | |
| (mm) | (Nm ) | (min-1) | (min-1) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (Ncm) | |
| 12 | 17 | 3100 | 6000 | 47 | 28 | 20 | 38 | 3 | 5.5 | 20 | 0.5 | 4.5 | 0.21 | 0.7 |
| 15 | 55 | 2300 | 5400 | 55 | 37 | 26 | 45 | 3 | 5.5 | 30 | 0.8 | 4.5 | 0.44 | 3.5 |
| 20 | 146 | 2000 | 3600 | 68 | 50 | 35 | 58 | 4 | 5.5 | 34 | 0.8 | 5.5 | 0.7 | 8.4 |
| 25 | 285 | 1700 | 2600 | 90 | 68 | 45 | 7 | 6 | 5.5 | 37 | 1 | 6.5 | 1.3 | 14 |
| 30 | 500 | 1500 | 2100 | 100 | 75 | 50 | 87 | 6 | 6.6 | 44 | 1 | 6.5 | 2 | 23 |
| 35 | 720 | 1300 | 1950 | 110 | 80 | 55 | 96 | 6 | 6.6 | 48 | 1 | 6.5 | 2.6 | 60 |
| 40 | 1030 | 1200 | 1700 | 125 | 90 | 60 | 108 | 6 | 9 | 56 | 1.5 | 7.6 | 3.9 | 72 |
| 45 | 1125 | 1050 | 1500 | 130 | 95 | 65 | 112 | 8 | 9 | 56 | 1.5 | 7.6 | 4 | 140 |
| 50 | 2150 | 950 | 1300 | 150 | 110 | 75 | 132 | 8 | 9 | 63 | 1.5 | 7.6 | 6 | 180 |
| 55 | 2675 | 850 | 1200 | 160 | 115 | 82 | 138 | 8 | 11 | 67 | 2 | 7.6 | 7.2 | 190 |
| 60 | 3500 | 800 | 1100 | 170 | 125 | 90 | 150 | 10 | 11 | 78 | 2 | 7.6 | 9.2 | 240 |
| 70 | 5813 | 650 | 900 | 190 | 140 | 100 | 165 | 10 | 11 | 95 | 2.5 | 7.6 | 11.8 | 320 |
NOTES
1) T max = 2 x T KN
2) Inner race overruns
3) Outer race overruns
Keyway to DIN 6885.1
