| Place of Origin | CHINA |
| Brand Name | SUMA |
| Certification | ISO SGS |
| Model Number | ASNU50 NFS50 TFS50 |

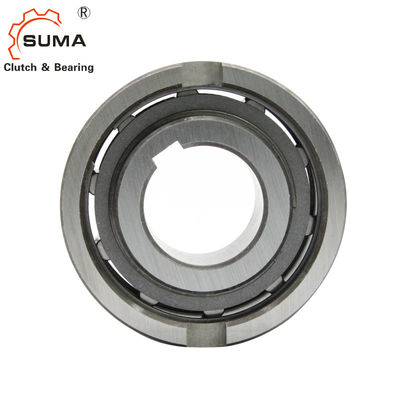

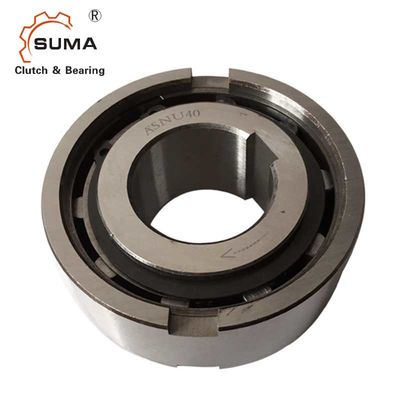

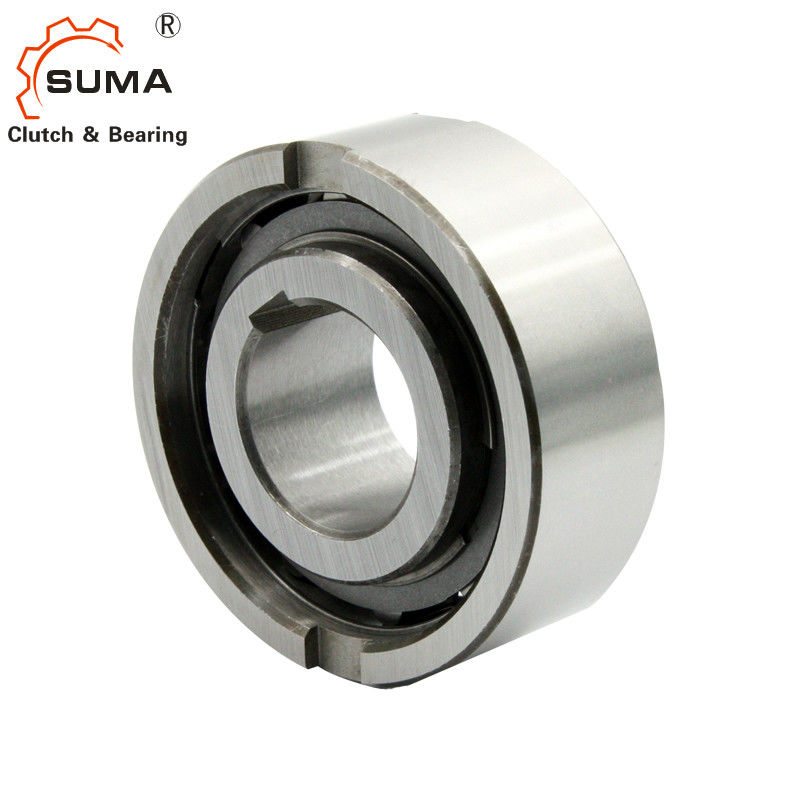

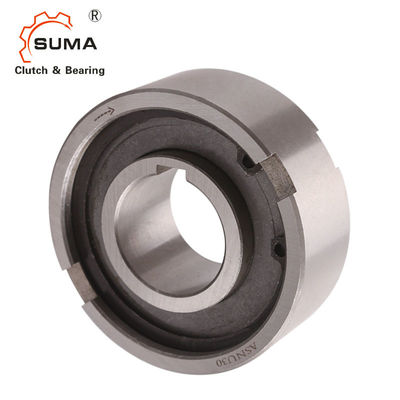

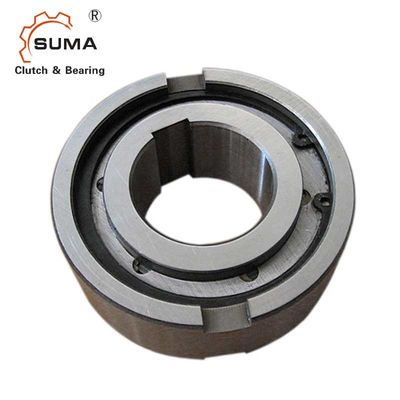

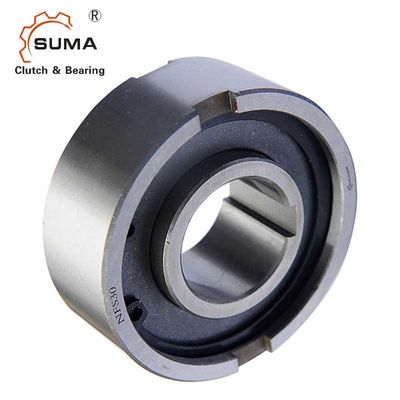

ASNU50 NFS50 TFS50 One-Way Freewheel Clutch Wedge Type Bearings
Features of Roller One Way Clutch Bearings
ASNU NFS TFS is a roller type freewheel non-bearing supported. Bearing are supporte axil and radial load.
Lubrication and sealing must be also provided by installation.
Since ASNU NFS type one way clutch is a roller type without bearing supported, bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation.
The inner race is keyed to the shaft.
The outer race has positive n6 tolerance, to give a press fitin a H7 housing.
Technical Datas of ASNU25 Roller One Way Clutch Bearings
| Product name | One way clutch bearing |
| Model | ASNU50 NFS50 TFS50 |
| Material | Chrome Steel GCr15 |
| Inner diameter | 50mm |
| Outer diameter | 110mm |
| Thickness | 40mm |
| Torque capacity | 125Nm |
| Rotation Speed | 1013RPM |
| Weight | 1.74kg |
| Package | Carton Box / Wooden box |
Dimensions and Capacities of ASNU25 Roller One Way Clutch Bearings
| Type | Size |
TKN1) |
Overrunning Speeds |
Weight
|
Drag torque | |||||||||
|
ASNU (NFS) |
dH7 | nimax2) | namax3) | Dn6 | D5 | L | b | t | s | e | f | TR | ||
| [mm] | [Nm] | [min-1] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | [Ncm] | |
| 8 | 12 | 3300 | 5000 | 35 | 28 | 13 | 4 | 1.4 | 2.4 | 0.6 | 0.3 | 0.07 | 1.6 | |
| 12 | 12 | 3300 | 5000 | 35 | 28 | 13 | 4 | 1.4 | 2.4 | 0.6 | 0.3 | 0.06 | 1.6 | |
| 15 | 30 | 2400 | 3600 | 42 | 37 | 18 | 5 | 1.8 | 2.4 | 0.8 | 0.3 | 0.11 | 1.9 | |
| 17 | 49 | 2300 | 3400 | 47 | 40 | 19 | 5 | 2.3 | 2.4 | 1.2 | 0.8 | 0.15 | 1.9 | |
| 20 | 78 | 2100 | 3100 | 52 | 42 | 21 | 6 | 2.3 | 2.4 | 1.2 | 0.8 | 0.19 | 1.9 | |
| 25 | 125 | 1700 | 2600 | 62 | 51 | 24 | 8 | 2.8 | 2.4 | 1.2 | 0.8 | 0.38 | 5.6 | |
| 30 | 255 | 1400 | 2200 | 72 | 60 | 27 | 10 | 2.5 | 2.4 | 1.8 | 1 | 0.54 | 14 | |
| 35 | 383 | 1200 | 1900 | 80 | 70 | 31 | 12 | 3.5 | 2.4 | 1.8 | 1 | 0.74 | 16 | |
| 40 | 538 | 1100 | 1700 | 90 | 78 | 33 | 12 | 4.1 | 2.5 | 1.8 | 1 | 0.92 | 38 | |
| 45 | 780 | 1000 | 1600 | 100 | 85 | 36 | 14 | 4.6 | 2.5 | 1.8 | 1 | 1.31 | 43 | |
| 50 | 1013 | 850 | 1350 | 110 | 92 | 40 | 14 | 5.6 | 2.5 | 1.8 | 1 | 1.74 | 55 | |
| 60 | 1825 | 750 | 1050 | 130 | 110 | 46 | 18 | 5.5 | 3.6 | 2.6 | 1.5 | 2.77 | 110 | |
| 70 | 2300 | 600 | 950 | 150 | 125 | 51 | 20 | 6.9 | 3.6 | 2.6 | 1.5 | 4.16 | 140 | |
| 80 | 3275 | 550 | 850 | 170 | 140 | 58 | 20 | 7.5 | 3.6 | 2.6 | 1.5 | 6.09 | 180 | |
| 90 | 5325 | 500 | 750 | 190 | 160 | 64 | 20 | 8 | 3.6 | 2.6 | 2 | 8.2 | 230 | |
| 100 | 7250 | 450 | 680 | 215 | 175 | 73 | 24 | 8.5 | 3.6 | 2.6 | 2 | 12.6 | 380 | |
| 120 | 13500 | 370 | 550 | 260 | 215 | 86 | 28 | 10 | 3.6 | 2.6 | 2.5 | 22 | 650 | |
| 150 | 26625 | 300 | 460 | 320 | 260 | 108 | 32 | 12 | 3.6 | 3.6 | 2.5 | 42 | 1000 | |
| 200 | 44500 | 230 | 350 | 420 | 350 | 138 | 45 | 16 | 7.6 | 3.6 | 3 | 93 | 2000 | |
NOTES
ASNU8-12, ASNU200 keyway to DIN 6885. 1,
other sizes to DIN 6885.3
1) T max = 2 times; T KN
2) Inner race overruns
3) Outer race overruns
Mounting Example
