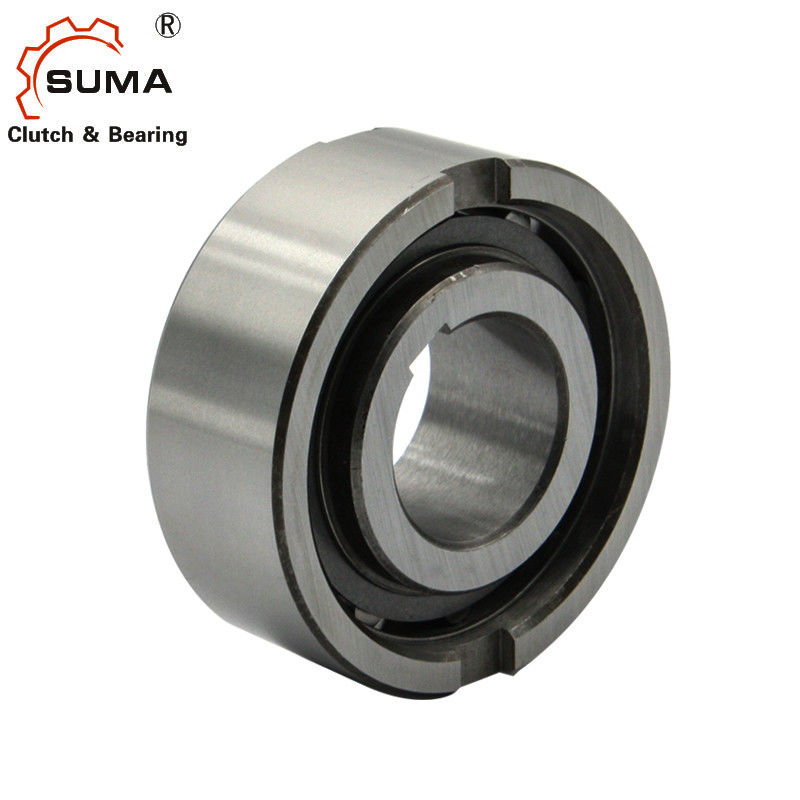

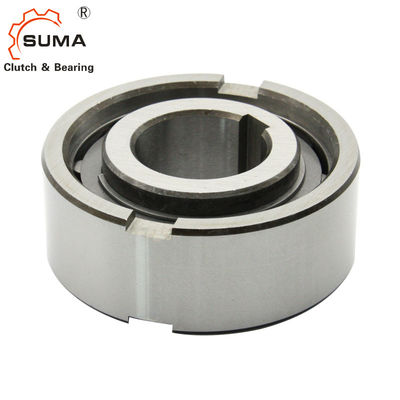

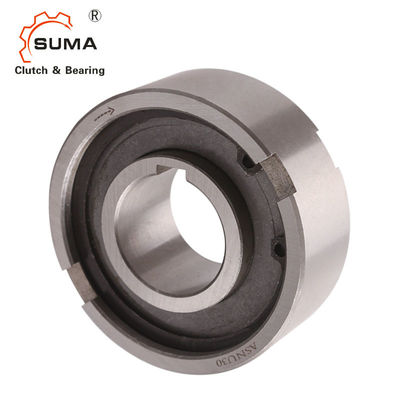

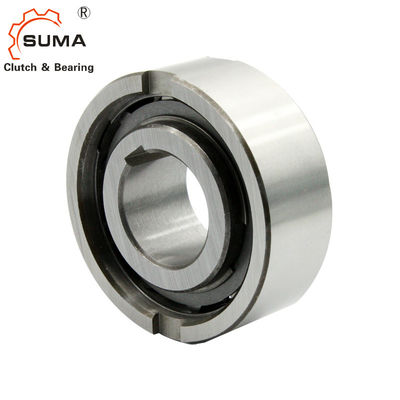

ASNU30 NFS30 TFS30 Freewheel Bearing Replacement One Way Clutch
  • ASNU30 NFS30 TFS30 Freewheel Bearing Replacement One Way Clutch
  • ASNU30 NFS30 TFS30 Freewheel Bearing Replacement One Way Clutch
  • ASNU30 NFS30 TFS30 Freewheel Bearing Replacement One Way Clutch
  • ASNU30 NFS30 TFS30 Freewheel Bearing Replacement One Way Clutch
  • ASNU30 NFS30 TFS30 Freewheel Bearing Replacement One Way Clutch
  • ASNU30 NFS30 TFS30 Freewheel Bearing Replacement One Way Clutch
  • ASNU30 NFS30 TFS30 Freewheel Bearing Replacement One Way Clutch

ASNU30 NFS30 TFS30 Freewheel Bearing Replacement One Way Clutch

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number ASNU30 NFS30 TFS30
Product Details
Product Name:
One Way Clutch Bearing ASNU30 NFS30 TFS30
Material:
GCr15 Bearing Steel
Torque Capacity:
255Nm
Rotation Speed:
1100RPM
Unit Weight:
0.54Kg
Warranty:
1 Year
Size:
30*72*27mm
OEM:
Accept
High Light:

TFS30 freewheel bearing replacement

,

SGS freewheel one way clutch

,

GCr15 freewheel bearing replacement

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD13-USD15PER PIECE
Packaging Details
Carton Box
Delivery Time
3-5Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability
1000PCS Per Month
Product Description

ASNU30 NFS30 TFS30 Freewheel Backstop One Way Sprag Bearings Factory



Features of ASNU30 One Way Clutch Bearings



  ASNU NFS TFS is a roller type freewheel non-bearing supported. Bearing are supporte axil and radial load.

 Lubrication and sealing must be also provided by installation.

Since ASNU NFS type one way clutch is a roller type without bearing supported, bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation.

The inner race is keyed to the shaft.

The outer race has positive n6 tolerance, to give a press fitin a H7 housing.



Technical Datas of ASNU30 One Way Roller Clutch Bearings

Product name One way clutch bearing
Model ASNU30 / NFS30 / TFS30
Material Chrome Steel GCr15
Inner diameter 30mm
Outer diameter 72mm
Thickness 27mm
Torque capacity 255Nm
Rotation Speed  1400RPM
Weight 0.54kg
Package Carton Box / Wooden box

Dimensions and Capacities of ASNU40 One Way Roller Clutch Bearings

Type Size



TKN1)

Overrunning

Speeds



Weight



Drag torque

ASNU

(NFS)

dH7 nimax2) namax3) Dn6 D5 L b t s e f TR
[mm] [Nm] [min-1] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg] [Ncm]
8 12 3300 5000 35 28 13 4 1.4 2.4 0.6 0.3 0.07 1.6
12 12 3300 5000 35 28 13 4 1.4 2.4 0.6 0.3 0.06 1.6
15 30 2400 3600 42 37 18 5 1.8 2.4 0.8 0.3 0.11 1.9
17 49 2300 3400 47 40 19 5 2.3 2.4 1.2 0.8 0.15 1.9
20 78 2100 3100 52 42 21 6 2.3 2.4 1.2 0.8 0.19 1.9
25 125 1700 2600 62 51 24 8 2.8 2.4 1.2 0.8 0.38 5.6
30 255 1400 2200 72 60 27 10 2.5 2.4 1.8 1 0.54 14
35 383 1200 1900 80 70 31 12 3.5 2.4 1.8 1 0.74 16
40 538 1100 1700 90 78 33 12 4.1 2.5 1.8 1 0.92 38
45 780 1000 1600 100 85 36 14 4.6 2.5 1.8 1 1.31 43
50 1013 850 1350 110 92 40 14 5.6 2.5 1.8 1 1.74 55
60 1825 750 1050 130 110 46 18 5.5 3.6 2.6 1.5 2.77 110
70 2300 600 950 150 125 51 20 6.9 3.6 2.6 1.5 4.16 140
80 3275 550 850 170 140 58 20 7.5 3.6 2.6 1.5 6.09 180
90 5325 500 750 190 160 64 20 8 3.6 2.6 2 8.2 230
100 7250 450 680 215 175 73 24 8.5 3.6 2.6 2 12.6 380
120 13500 370 550 260 215 86 28 10 3.6 2.6 2.5 22 650
150 26625 300 460 320 260 108 32 12 3.6 3.6 2.5 42 1000
200 44500 230 350 420 350 138 45 16 7.6 3.6 3 93 2000


NOTES

ASNU8-12, ASNU200 keyway to DIN 6885. 1,

other sizes to DIN 6885.3
1) T max = 2 times; T KN
2) Inner race overruns
3) Outer race overruns

Mounting Example


Pictures

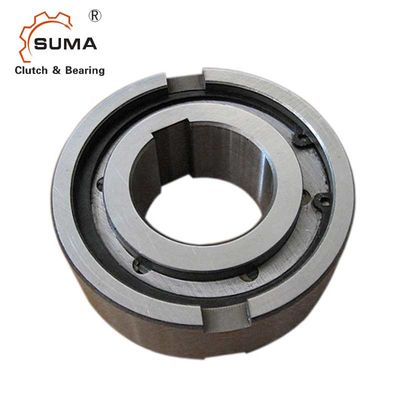

ASNU30 NFS30 TFS30 Freewheel Bearing Replacement One Way Clutch 2
