| Place of Origin | CHINA |
| Brand Name | SUMA |
| Certification | ISO SGS |
| Model Number | CK-A50110 |

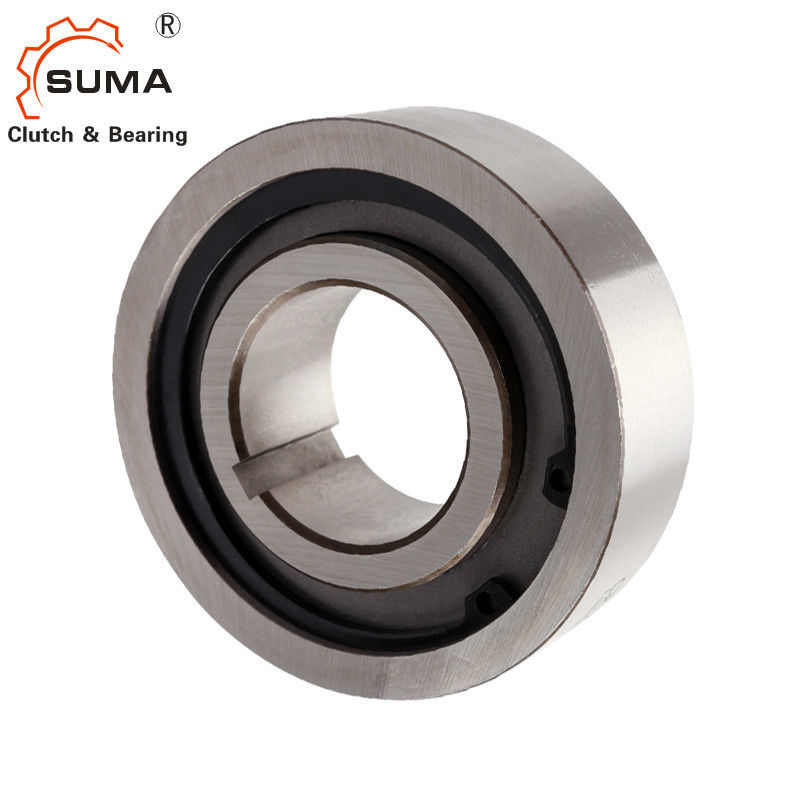

CKA50110 One Way 525 RPM Roller Freewheel Clutch
Features
Type CK-A is a sprag type freewheel non-bearing supported. Nominal dia.-Direction diameter is a standard ball bearings dimension. Bearings are required to support axial and radial loads. Units are delivered grease Iubricated.
The standard arrangement is to install this type besides a bearing with the same housing diameter tolerance. The inner race and the outer race are keyed to the shaft and hole.
This series extensive used in machinery system of conveyer, hosting, packing, printing,paper making, weaving, chemical, medical, food and so on.
Technical Datas
| Item | CK-A50110 |
| Material | GCr15 |
| Bore dia. | 50 mm |
| Outer dia. | 110 mm |
| Width (B) | 28 mm |
| Torque capacity | 850 N.m |
| Overrunning limiting speed (inner race) | 525 r/min |
| Overrunning limiting speed (outer race) | 180 r/min |
| Weight | 1.59 kg |
| Package | Carton box or as your requirements |
Dimensions and Capacities
|
Model
|
Nominal Torque
|
Overrunning Limiting Speed (r/min)
|
Dimension [mm] |
Bearing
|
Weight
|
||||||
| Outer race | Inner race | ||||||||||
| [N.m] | Inner race | Outer race | D[h7] | B | bwxtw | d[h7] | C | bnxtn | [kg] | ||
| CK-A1542 | 54 | 1750 | 500 | 42 | 23 | 3x1.8 | 15 | 24 | 3x1.4 | 6302 | 0.17 |
| CK-A1747 | 75 | 1575 | 400 | 47 | 23 | 3x1.8 | 17 | 24 | 3x1.4 | 6304 | 0.21 |
| CK-A2052 | 95 | 1400 | 400 | 52 | 23 | 3x1.8 | 20 | 24 | 3x1.4 | 6305 | 0.25 |
| CK-A2562 | 145 | 1260 | 350 | 62 | 23 | 4x2.5 | 25 | 24 | 4x1.8 | 6306 | 0.35 |
| CK-A3072 | 208 | 1050 | 300 | 72 | 23 | 5x3.0 | 30 | 24 | 5x2.3 | 6307 | 0.47 |
| CK-A3580 | 340 | 815 | 200 | 80 | 28 | 8x4.0 | 35 | 30 | 6x2.8 | 6308 | 0.69 |
| CK-A4090 | 462 | 700 | 200 | 90 | 28 | 8x4.0 | 40 | 30 | 6x2.8 | 6309 | 0.87 |
| CK-A45100 | 783 | 560 | 200 | 100 | 28 | 8x4.0 | 45 | 30 | 6x2.8 | 6310 | 1.07 |
| CK-A50110 | 850 | 525 | 180 | 110 | 28 | 10x5.0 | 50 | 30 | 8x3.3 | 6311 | 1.59 |
| CK-A60130 | 1050 | 490 | 180 | 130 | 34 | 10x5.0 | 60 | 36 | 8x3.3 | 6312 | 2.16 |
| CK-A65140 | 1224 | 490 | 180 | 140 | 34 | 10x5.0 | 65 | 36 | 10x3.3 | 6313 | 2.49 |
|
CK-A 70150 |
1850 | 455 | 150 | 150 | 40 | 10x5.0 | 70 | 42 | 10x3.3 | 6314 | 3.36 |
|
CK-A 75160 |
2140 | 455 | 150 | 160 | 40 | 12x5.0 | 75 | 42 | 12x3.3 | 6315 | 3.81 |
| CK-A80170 | 2450 | 420 | 150 | 170 | 40 | 12x5.0 | 80 | 42 | 12x3.3 | 6316 | 4.29 |
| CK-A1250 | 31.5 | 1750 | 400 | 50 | 22 | 3x1.8 | 12 | 24 | 3x1.4 | 0.24 | |
| CK-A1855 | 50.0 | 1575 | 350 | 55 | 22 | 4x2.5 | 18 | 24 | 4x1.8 | 0.28 | |
| CK-A2060 | 63.0 | 1600 | 350 | 60 | 22 | 6x3.5 | 20 | 24 | 6x2.8 | 0.33 | |
|
CK-A 2563 |
100 | 1260 | 350 | 63 | 24 | 6x3.5 | 25 | 26 | 6x2.8 | 0.37 | |
| CK-A2563T | 140 | 1260 | 350 | 63 | 30 | 6x3.5 | 25 | 32 | 8x3.3 | 0.68 | |
| CK-A2870 | 180 | 1050 | 300 | 70 | 30 | 8x4.0 | 28 | 32 | 8x3.3 | 0.60 | |
| CK-A3080T | 340 | 875 | 200 | 80 | 30 | 8x4.0 | 30 | 32 | 8x3.3 | 0.75 | |
| CK-A3585 | 400 | 815 | 200 | 85 | 30 | 8x4.0 | 35 | 32 | 8x3.3 | 1.00 | |
| CK-A35100 | 780 | 875 | 200 | 100 | 32 | 10x5.0 | 35 | 34 | 10x3.3 | 1.34 | |
| CK-A35140 | 1000 | 490 | 180 | 140 | 35 | 8x4.0 | 35 | 35 | 10x3.5 | 3.28 | |
| CK-A40100 | 780 | 560 | 200 | 100 | 34 | 10x5.0 | 40 | 34 | 10x3.3 | 1.20 | |
| CK-A40110 | 850 | 700 | 180 | 110 | 32 | 10x5.0 | 40 | 34 | 10x3.3 | 1.19 | |
| CK-A50125 | 1000 | 490 | 180 | 125 | 36 | 14x5.5 | 50 | 35 | 14x3.8 | 2.21 | |
| CK-A50130 | 1050 | 560 | 180 | 130 | 36 | 14x5.5 | 50 | 38 | 14x3.8 | 3.02 | |
| CK-A55160 | 2000 | 455 | 150 | 160 | 52 | 16x6.0 | 55 | 55 | 16x4.3 | 6.96 | |
| CK-A58130 | 1050 | 490 | 180 | 130 | 36 | 14x5.5 | 58 | 38 | 14x3.8 | 2.60 | |
| CK-A60180 | 2000 | 420 | 140 | 180 | 52 | 18x6.0 | 60 | 52 | 18x4.4 | 7.40 | |
Mounting and Coupling
