| Place of Origin | CHINA |
| Brand Name | SUMA |
| Certification | ISO SGS |
| Model Number | ASK50 |

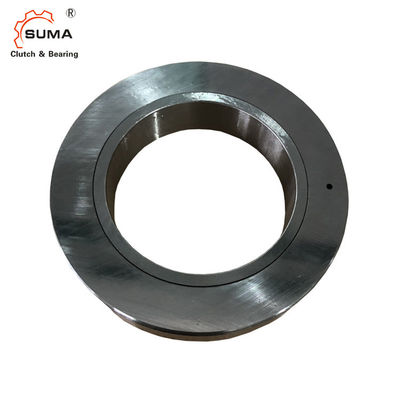

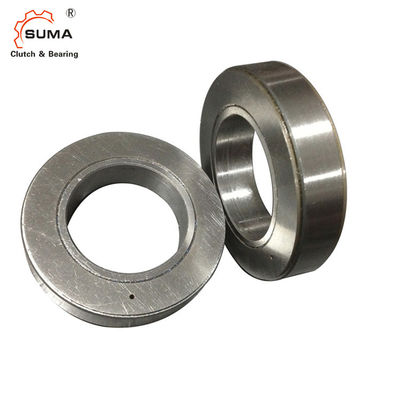

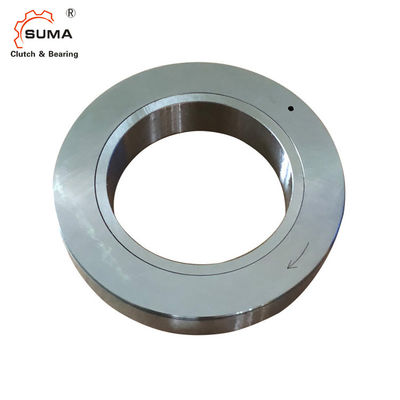

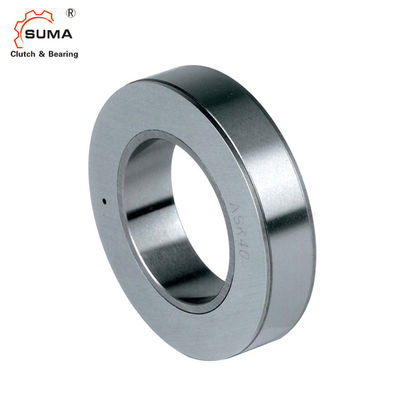

ASK50 2200RPM Freewheel Roller Bearing One Way Clutch
Features
1. Type ASK is a roller type freewheel bearing supported by two rows of roller bearings.
2. The standard radial clearance is C4
3. Shaft tolerance should be h6 or j6
4. Type ASK freewheels can not accept axial loading. In cases of such loads, thrust bearings must be provided
Technical Datas
| Model | ASK50 |
| Materail | GCr15 |
| Inner Diameter | 50mm |
| Outer diameter | 80mm |
| Thickness | 16mm |
| Torque capacity | 125Nm |
| Drag Torque | 20Ncm |
| Max overrunning speed | 2200r/min |
| Application | Backstop, Overrunning |
| Package | carton package / Wooden package |
| Delivery time | 5-7 days |
| Payment terms | TT, L/C, D/P, D/A, Western Union, Paypal |
Dimensions and Capacities
| Type | Size | Bearing Series | TKN1) | nmax | Outside Diameter | Height | Bearing loads | Weight | Drag torque | |
| Dynamic | static | |||||||||
| ASK | Dp6 (mm) |
(Nm) |
(min-1) |
D (mm) |
L (mm) |
C (kN) |
C0 (kN) |
(kg) | TR (Ncm) |
|
| 40 | 6008 | 72 | 3500 | 68 | 15 | 16 | 20.6 | 0.25 | 15 | |
| 50 | 6010 | 125 | 2200 | 80 | 16 | 19.6 | 23.5 | 0.34 | 20 | |
| 60 | 6012 | 250 | 1800 | 95 | 18 | 25.3 | 35.1 | 0.5 | 25 | |
NOTES
1) Tmax = 2 × TKN
» Refer to Selection page 10 to 13
» Refer to mounting and maintenance instructions page 16 to 19
Mounting Example
