FPD442M FPD442Z One Way Freewheel Sprag Clutch Bearing

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: FPD442M FPD442Z
Minimum Order Quantity: 1
Price: USD30-USD40 PER PIECE
Packaging Details: Carton Box
Delivery Time: 5-7 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 1000PCS Per Month
Product Name: Sprag Clutch Bearing FPD442M FPD442Z Material: GCr15 Bearing Steel
Torque Capacity: 223Nm Rotation Speed: 1500RPM
Unit Weight: 0.18Kg Warranty: 1 Year
Size: 30*46*34mm OEM: Accept
High Light:

FPD442Z Sprag Clutch Bearing

,

FPD442M Sprag Clutch Bearing

,

One Way Sprag Type Clutch

               FPD442M FPD442Z One Way Freewheel Sprag Clutch Bearing

Features

Bearing

The freewheel clutch includes ball and roller bearings.Additional external bearing support is not necessary.

Press fit pressure

Press fit pressure must not be applied to the balls.

Clamping direction

The arrow on the inner ring designates the inner ring's clamping direction.

Width:34 mm

Operating temperature:max. 100° C

Lubrication

Operative lifetime oil lubrication

Installation

Installation tolerances

Shaft h5; hub H6

Mating parts

Hardening and grinding of the mating parts is not necessary. Thoroughly clean (grease free) the mating parts in the vicinity of the freewheel clutch as well as the freewheel clutch's rings before making the press fit.

Components

Freewheel clutch
insert element* FE 400 M (meander spring)



FE 400 Z (tension spring)

+ Raceways Bearing steel, hardened and ground
inner ring Press fit



outer ring



Press fit

+ Ball bearing Integrated



+ Roller bearing



RL 400

+ Lubrication Lifetime oil lubrication

Technical Datas

Item FPD442M FPD442Z
Material ST14
Bore dia. 30 mm
Outer dia. 46 mm
Width (B) 34 mm
Torque capacity 223N.m
Overrunning limiting speed (inner race) 1500 r/min
Weight 0.18 kg
Package Carton box or as your requirements

Dimensions and Capacities


Model d D W Tnom nmax Cdyn. Cstat. Weight Item no.
[mm] [mm] [mm] [Nm] [rpm] [N] [N] [kg]
FPD 427 M 15 31 34 94 2,000 7,679 6,397 0.09 306516
FPD 427 Z 15 31 34 84 2,000 7,679 6,397 0.09 306517
FPD 432 M 20 36 34 133 1,800 8,104 7,241 0.12 306518
FPD 432 Z 20 36 34 121 1,800 8,104 7,241 0.12 306519
FPD 437 M 25 41 34 176 1,700 9,201 8,142 0.15 306520
FPD 437 Z 25 41 34 160 1,700 9,201 8,142 0.15 306521
FPD 442 M 30 46 34 223 1,500 10,247 10,708 0.18 300696
FPD 442 Z 30 46 34 208 1,500 10,247 10,708 0.18 300697
FPD 448 M 35 53 34 286 1,300 11,642 13,440 0.23 306524
FPD 448 Z 35 53 34 262 1,300 11,642 13,440 0.23 306525
FPD 453 M 40 58 34 343 1,200 11,417 13,577 0.26 300702
FPD 453 Z 40 58 34 314 1,200 11,417 13,577 0.26 300700
FPD 463 M 50 68 34 461 1,100 13,070 17,063 0.34 306534
FPD 463 Z 50 68 34 428 1,100 13,070 17,063 0.34 306535
FPD 473 M 60 78 34 588 1000 14128 19896 0.41 306536
FPD 473 Z 60 78 34 543 1000 14128 19896 0.41 306537

Pictures

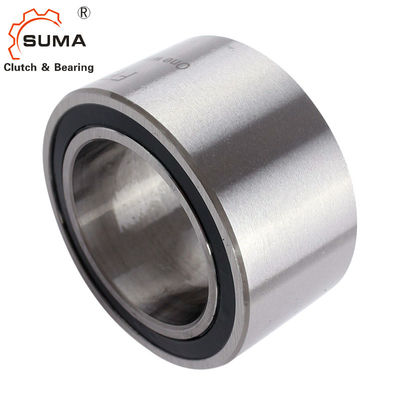

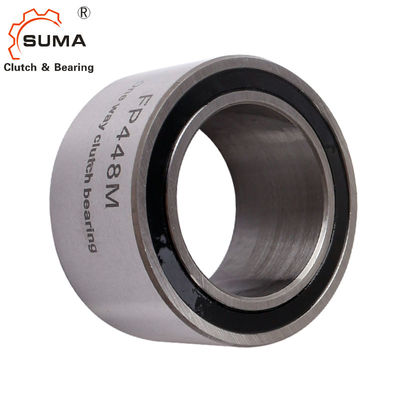

FPD442M FPD442Z One Way Freewheel Sprag Clutch Bearing 2

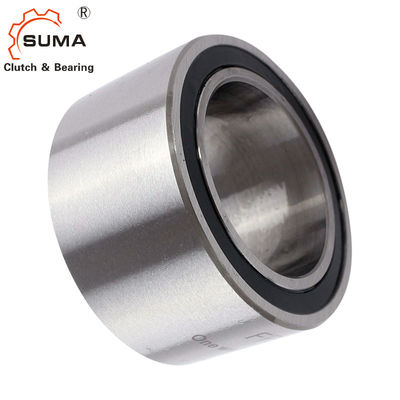

FPD442M FPD442Z One Way Freewheel Sprag Clutch Bearing 3
