CR Outer Ring Stud Type Cam Follower With Cage Guidance

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: CR
Minimum Order Quantity: 10PCS
Price: USD2.5-USD3.2 PER PIECE
Packaging Details: Carton Box / Wooden Box
Delivery Time: 2-5 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability: 100000 PCS PER MONTH
Product Name: Cam Follower Bearings CR Material: Bearing Steel GCr15
Outer Race Surface: Cylindrical Package: Each In Plastic Bag + Carton Box
Warranty: 6 Months Port: ShangHai / NingBo
OEM: Accept Delivery Time: 3-5 Days
High Light:

CR Stud Type Cam Follower

,

Outer Ring Stud Type Cam Follower

,

CR Track Roller Bearing With Stud

CR Outer Ring Stud Type Cam Follower With Cage Guidance

Features

Track Roller is a bearing unit composed of machined thick-wall outer ring, needle rollers or cylindrical roller sets, or cage guidance or full complement needle roller, inner ring or bolt and seal. Featuring multiple compact structure, high rotating accuracy, large varieties, broad adaptability and easy installation, it can bear high radial load and certain shock load and is widely used in machine tool, metallurgical, textile and printing machinery, processing lines and etc.



Technical Datas

Product name CR Stud Type Track Rollers
Model CR
Material GCr15
Package Carton Box / Wooden box, pulley, etc
Payment terms TT. L/C, D/A,D/P,Western Union
Delivery time 2-4 days for the sample, 7 days for big order



Dimensions and Capacities

INSEALED
BRG.
NO.
SEALED
BRG.
NO.
ROLLER
DIA
(RD)
ROLLER
WIDTH
(W)
STUD
DIA
(SD)
STUD
LENGTH
(SL)
MIN.
THREAD
LENGTH
(TL)
FINE
THREAD
OIL HOLE LUB
FITTING
SIZE
(F)
HOLE
CENTER
(HC)
HOLE
DIA(HD)
CFH-1/2-B CFH-1/2-B 0.500 0.375 0.250 5/8 1/4 1/4-28
CFH-9/16-B CFH-9/16-B 0.5625 0.375 0.250 5/8 1/4 1/4-28
CFH-5/8-B CFH-5/8-B 0.625 0.4375 0.3125 3/4 5/16 5/16-24
CFH-11/16-B CFH-11/16-B 0.6875 0.4375 0.3125 3/4 5/16 5/16-24
CFH-3/4-B CFH-3/4-B 0.750 0.500 0.4375 7/8 3/8 7/16-20 1/4 3/32 3/16
CFH-7/8-B CFH-7/8-B 0.875 0.500 0.4375 7/8 3/8 7/16-20 1/4 3/32 3/16
CFH-1-B CFH-1-B 1.000 0.625 0.625 1 1/2 5/8-18 1/4 3/32 3/16
CFH-1 1/8-B CFH-1 1/8-B 1.1250 0.625 0.625 1 1/2 5/8-18 1/4 3/32 3/16
CFH-1 1/4-B CFH-1 1/4-B 1.250 0.750 0.750 1 1/4 5/8 3/4-16 5/16 3/32 3/16
CFH-1 3/8-B CFH-1 3/8-B 1.375 0.750 0.750 1 1/4 5/8 3/4-16 5/16 3/32 3/16
CFH-1 1/2-B CFH-1 1/2-B 1.500 0.875 0.875 1 1/2 3/4 7/8-14 3/8 3/32 3/16
CFH-1 5/8-B CFH-1 5/8-B 1.625 0.875 0.875 1 1/2 3/4 7/8-14 3/8 3/32 3/16
CFH-1 3/4-B CFH-1 3/4-B 1.750 1.000 1.000 1 3/4 7/8 1-14 7/16 3/32 3/16
CFH-1 7/8-B CFH-1 7/8-B 1.875 1.000 1.000 1 3/4 7/8 1-14 7/16 3/32 3/16
CFH-2-B CFH-2-B 2.000 1.125 1.125 2 1 1 1/8-12 1/2 1/8 3/16
CFH-2 1/4-B CFH-2 1/4-B 2.250 1.125 1.125 2 1 1 1/8-12 1/2 1/8 3/16
CFH-2 1/2-B CFH-2 1/2-B 2.500 1.250 1.250 2 1/4 1 1/8 1 1/4-12 9/16 1/8 3/16
CFH-2 3/4-B CFH-2 3/4-B 2.750 1.250 1.250 2 1/4 1 1/8 1 1/4-12 9/16 1/8 3/16
CFH-3-B CFH-3-B 3.000 1.500 1.500 2 1/2 1 1/4 1 1/2-12 5/8 1/8 1/4
CFH-3 1/4-B CFH-3 1/4-B 3.250 1.500 1.500 2 1/2 1 1/4 1 1/2-12 5/8 1/8 1/4
CFH-3 1/2-B CFH-3 1/2-B 3.500 1.750 1.750 2 3/4 1 3/8 1 3/4-12 11/16 1/8 1/4
CFH-4-B CFH-4-B 4.000 2.000 2.000 3 1/2 1 1/2 2-12 3/4 1/8 1/4


Pictures

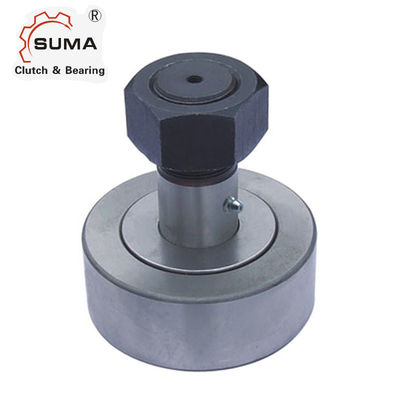

CR Outer Ring Stud Type Cam Follower With Cage Guidance 0

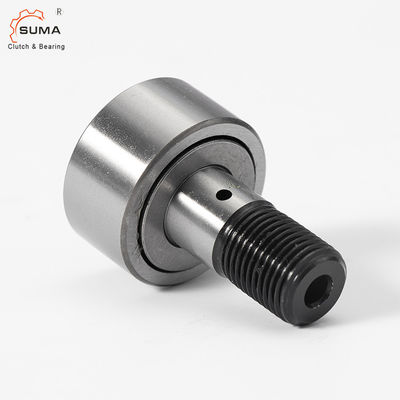

CR Outer Ring Stud Type Cam Follower With Cage Guidance 1
