HF Series HF0812 One Way Needle Bearings

HF Series HF0812 One Way Needle Bearings

HF Series HF0812 One Way Needle Bearings
HF Series HF0812 One Way Needle Bearings HF Series HF0812 One Way Needle Bearings HF Series HF0812 One Way Needle Bearings HF Series HF0812 One Way Needle Bearings
Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: HF0812
Minimum Order Quantity: 10
Price: USD0.18-USD0.35 PER PIECE
Packaging Details: Roll Pack + Carton Box
Delivery Time: 1-2 Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 100000PCS Per Month
Contact Now
Product Name: Needle Roller Bearing HF0812 Material: GCr15 Bearing Steel
Unit Weight: 3.5g Warranty: 1 Year
Overrunning Speed: 17000RPM Torque Capacity: 3.15Nm
OEM: Accept Port: Shanghai Ningbo
High Light:

HF0812 One Way Needle Bearings

,

17000RPM One Way Needle Bearings

,

HF0812 Needle Roller Bearing

             HF Series HF0812 One Way Needle Bearings HF One Way Needle Bearing.pdf



Technical Datas of HF0812 One Way Needle Bearings

HF Series One Way Needle Bearings
Outer Race Material: ST14

Needle Material: GCr15
Inner Bore Range: 3-35mm
Outer Bore Range: 6.5-42mm
Height Range: 6-20mm
Torque Range: 0.2-121Nm
Package: Roll pack + Carton Box

Dimensions and Capacities of HF0812 One Way Needle Bearings

Shaft Dia. Bearing Designation Mass Dimensions Permissible Torque Limiting Speed
Fw D C Rotating Shaft Min-1 Rotating Outer Ring Min-1
mm Plastic Springs Steel Springs g mm Nm rpm rpm
3 HF0306KF   0.9 3 6.5 6 0.2 36000 7000
4 HF0406KF -- 1 4 8 6 0.34 34000 8000
HF0406KFR -- 1 4 8 6 0.1 34000 8000
6 HF0608KF   2.8 6 10 8 1.5 20000 11000
HF0612KF HF0612 3 6 10 12 1.76 23000 13000
HF0612KFR HF0612R 3 6 10 12 1.76 23000 13000
  HF061210 3.5 6 12 10 3 20000 13000
8 HF0812KF HF0812 3.5 8 12 12 3.15 17000 12000
HF0812KFR HF0812R 3.5 8 12 12 4 17000 12000
-- HF061210 3.2 8 12 10 3 16000 12000
-- HF081410 3.6 8 14 10 4.6 15000 11000
-- HF081610 4.1 8 16 10 5.5 15000 11000
-- HF081412 4 8 14 12 5 16000 12000
10 HF1012KF HF1012 4 10 14 12 5.3 14000 11000
HF1012KFR HF1012R 4 10 14 12 1.5 14000 11000
12 -- HF1216 11 12 18 16 12.2 11000 8000
14 -- HF1416 13 14 20 16 17.3 9500 8000
16 -- HF1616 14 16 22 16 20.5 8500 7500
18 -- HF1816 16 18 24 16 24.1 7500 7500
20 -- HF2016 17 20 26 16 28.5 7000 6500
25 -- HF2520 30 25 32 20 66 5500 5500
30 -- HF3020 36 30 37 20 90 4500 4500
35 -- HF3520 40 35 42 20 121 3900 3900
HF Series HF0812 One Way Needle Bearings 0

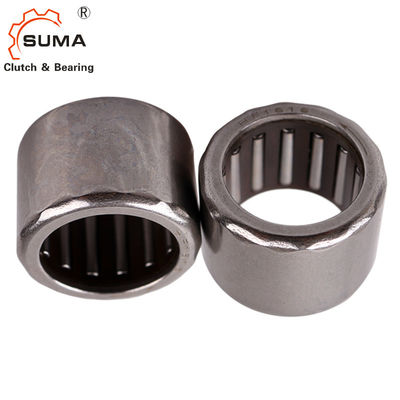

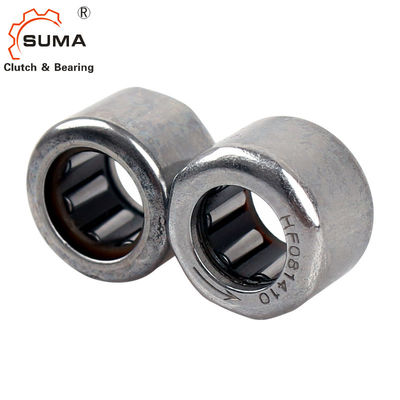

Pictures of HF0812 One Way Needle Bearings
HF Series HF0812 One Way Needle Bearings 1
HF Series HF0812 One Way Needle Bearings 2
HF Series HF0812 One Way Needle Bearings 3
HF One Way needle bearing are one-directional clutches, which transmit torques in a single path ;
are to be had without or with an incorporated bearing arrangement ;
provide very particular indexing ; permit excessive indexing frequencies ;
have a low overrunning frictional torque ；
are to be had without or with greasing ；
are specifically compact in a radial path and consequently allow extraordinarily compact designs ；
are appropriate for housing substances crafted from steel, mild steel or plastic ；
may mixed with drawn cup needle rollers bearings with open ends HK and drawn cup needle roller bearings with closed end BK ； have an in depth variety of applications, as an example as indexing clutches, back-preventing clutches and overrunning clutches .
