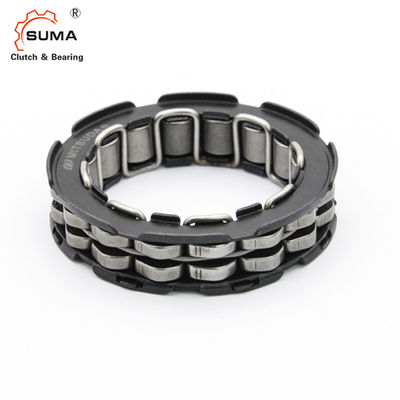

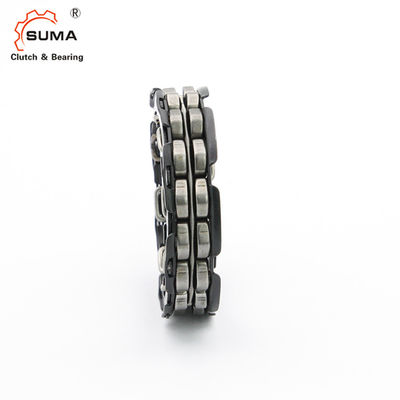

FWD331808PRB FWD331808PRS Motorcycle Bearing One Way Clutch

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: FWD331808PRB
Minimum Order Quantity: 1
Price: USD8-USD10 PER PIECE
Packaging Details: Carton Box
Delivery Time: 3-7 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 1000PCS Per Month
Product Name: Sprag Clutch Bearing FWD331808PRB Material: GCr15 Bearing Steel
Torque Capacity: 35Nm Unit Weight: 0.08Kg
Warranty: 1 Year Size: 45.665*62.332*35mm
OEM: Accept Package: Carton Box
High Light:

35Nm Motorcycle Bearing

,

Sprag Motorcycle Bearing

,

Sprag Motorcycle Wheel Bearing

              FWD331808PRB FWD331808PRS Motorcycle Bearing One Way Clutch

Features

  Application: primarily used on motorcycle starter


Dimensions and Capacities

FWD PRB .jpg



Type



Inner race



Outer race



Wmin





Wmin



D­C

Tkn



Weight

D +0.008

-0.005

DO ±0.013 (mm) W W1 (Kgf-m) (g)
(mm) (mm) (mm) (mm)
FWD331608PRB 39.627 56.294 13 11.4 45 27 70
FWD331808PRB 45.665 62.332 13.3 11.7 51 35 80
FWD332008PRB 51.71 68.377 13.3 11.7 57 45 89
FWD332211PRB 57.76 74.427 16.3 14.7 63 78 130



FWD PRS .jpg

Type



Inner race



Outer race



Wmin





Wmin





D­C



Tkn



Weight

D +0.008

-0.005

DO ±0.013 (mm) W W1 (Kgf-m) (g)
(mm) (mm) (mm) (mm)
FWD331608PRS 39.627 56.294 13 11.4 45 27 75
FWD331808PRS 45.665 62.332 13.3 11.7 51 35 85
FWD332008PRS 51.71 68.377 13.3 11.7 57 45 94
FWD332211PRS 57.76 74.427 16.3 14.7 63 78 139



FWD331808PRB FWD331808PRS Motorcycle Bearing One Way Clutch 2

Type



Inner race



Outer race



Wmin



Tkn



Weight


D +0.008

-0.005

DO ±0.013 (mm) W (Kgf-m) (g)
(mm)
(mm)
FWD331608BRB 39.627 56.294 13 27 73
FWD331808BRB 45.665 62.332 13.3 35 82
FWD332008BRB 51.71 68.377 13.3 45 91
FWD332211BRB 57.76 74.427 16.3 78 134



FWD331808PRB FWD331808PRS Motorcycle Bearing One Way Clutch 3

Type



Inner race



Outer race



Wmin



Tkn



Weight


D +0.008

-0.005

DO ±0.013 (mm) W (Kgf-m) (g)
(mm)
(mm)
FWD331608BRS 39.627 56.294 13 27 77
FWD331808BRS 45.665 62.332 13.3 35 87
FWD332008BRS 51.71 68.377 13.3 45 97
FWD332211BRS 57.76 74.427 16.3 78 134



FWD331808PRB FWD331808PRS Motorcycle Bearing One Way Clutch 4

Type



Inner race



Outer race



Wmin



Tkn



Weight


D +0.008

-0.005

DO ±0.013 (mm) W (Kgf-m) (g)
(mm)
(mm)
FWD331608CRB 39.627 56.294 13 27 73
FWD331808CRB 45.665 62.332 13.3 35 82
FWD332008CRB 51.71 68.377 13.3 45 91
FWD332211CRB 57.76 74.427 16.3 78 134



FWD331808PRB FWD331808PRS Motorcycle Bearing One Way Clutch 5

Type



Inner race



Outer race



Wmin



A B C

Tkn



Weight


D +0.008

-0.005

DO ±0.013 (mm) W (mm) (mm) (mm) (Kgf-m) (g)
(mm)
(mm)
FWD331608CRS 39.627 56.294 13 60 62 1.0 27 78
FWD331808CRS 45.665 62.332 13.3 65 68 1.0 35 88
FWD332008CRS 51.71 68.377 13.3 71 74 1.0 45 98
FWD332211CRS 57.76 74.427 16.3 76 79 1.0 78 140


Pictures

 FWD331808PRB FWD331808PRS Motorcycle Bearing One Way Clutch 6FWD331808PRB FWD331808PRS Motorcycle Bearing One Way Clutch 7





FWD331808PRB FWD331808PRS Motorcycle Bearing One Way Clutch 8
 FWD331808PRB FWD331808PRS Motorcycle Bearing One Way Clutch 9
