FE453Z FE455Z FE458Z Precision Freewheels One Way Sprag Clutch Bearing For Helicopter

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: FE453Z FE455Z FE458Z
Minimum Order Quantity: 1
Price: USD7-USD10 PER PIECE
Packaging Details: Carton Box
Delivery Time: 1-2 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 1000PCS Per Month
Product Name: Precision Sprag Clutch Bearing Material: GCr15 Bearing Steel
Torque Capacity: 293-344Nm Rotation Speed: 3100-3400RPM
Unit Weight: 0.022-0.029KG Thickness: 11mm
OEM: Accept
High Light:

helicoptor one way sprag clutch bearing

,

FE458Z one way sprag clutch bearing

,

FE458Z high precision bearings

               FE453Z FE455Z FE458Z Precision Freewheels One Way

                              Sprag Clutch Bearing for Helicopter

Features



  • Item: FE453Z One Way Clutch Bearing
  • Type: One Way Clutch Bearing
  • Dimensions :45mm x 53mm x 12mm/Metric
  • Bearing Inner Diameter: 45mm
  • Bearing Outer Diameter: 53mm
  • Bearing Width: 12mm
  •
  •

  The sprags are evenly spaced around the circumference of the insert element cage. The insert element cage does not come in contact with the inner or outer races; it remains absolutely loadfree under any application.





Dimensions and Capacities

FE453Z FE455Z FE458Z Precision Freewheels One Way Sprag Clutch Bearing For Helicopter 0

Drawing legend:

d = inner diameter D = outer diameter W = width T = torque n = rotation speed

Designation

d

[mm]

D

[mm]

W

[mm]

Tnom

[Nm]

nmax

[rpm]

Weight

[kg]

Item no.
FE 412 Z 4 12 12 4 27,000 0.003 300393
FE 416 Z 8 16 12 16 19,200 0.006 300400
FE 420 Z 12 20 12 35 12,500 0.007 306041
FE 422 Z 14 22 12 53 10,100 0.008 300405
FE 423 Z 15 23 12 62 9,200 0.009 300411
FE 425 Z 17 25 12 72 8,100 0.011 300415
FE 427 Z 19 27 12 83 7,400 0.013 300422
FE 428 Z 20 28 12 93 7,500 0.013 300430
FE 430 Z 22 30 12 107 6,300 0.014 300435
FE 432 Z 24 32 12 117 5,900 0.016 300439
FE 433 Z 25 33 12 128 6,000 0.016 300445
FE 435 Z 27 35 12 143 5,100 0.017 300448
FE 437 Z 29 37 12 154 4,800 0.018 300455
FE 438 Z 30 38 12 166 4,900 0.019 300460
FE 442 Z 34 42 12 198 4,400 0.018 300463
FE 443 Z 35 43 12 207 4,300 0.022 300469
FE 448 Z 40 48 12 248 4,200 0.024 300478
FE 453 Z 45 53 12 293 3,400 0.022 300482
FE 455 Z 47 55 12 313 3,300 0.026 300487
FE 458 Z 50 58 12 344 3,100 0.029 300489
FE 459 Z 51 59 12 353 3,000 0.030 300494
FE 463 Z 55 63 12 393 2,900 0.032 300497
FE 468 Z 60 68 12 444 2,700 0.034 300501
FE 470 Z 62 70 12 465 2,600 0.035 300505
FE 473 Z 65 73 12 495 2,500 0.037 300508
FE 478 Z 70 78 12 548 2,600 0.039 300511
FE488Z 80 88 12 657 2,100 0.045 300514
FE 508 Z 100 108 12 889 1,700 0.055 300519
FE 528 Z 120 128 12 1,127 1,300 0.066 300522
FE 648 Z 240 248 12 2,673 800 0.131 300524
Designation

d

[mm]

D

[mm]

W

[mm]

Tnom

[Nm]

nmax

[rpm]

Weight

[kg]

Item no.
FE 410 Z2 2 10 7 0,6 52,600 0.001 300390
FE 412 Z2 4 12 7 2,5 40,900 0.002 300394
FE 413 Z2 5 13 7 4 34,900 0.003 300395
FE 414 Z2 6 14 7 6 31,200 0.003 300396
FE 416 Z2 8 16 7 10 27,200 0.004 300399
FE 418 Z2 10 18 7 16 18,900 0.005 300401
FE 422 Z2 14 22 7 30 13,200 0.006 300406
FE 423 Z2 15 23 7 40 13,200 0.006 300410
FE 425 Z2 17 25 7 43 10,600 0.007 300416
FE 428 Z2 20 28 7 55 9,700 0.008 300431
FE 433 Z2 25 33 7 78 7,700 o.oio 300446
FE 437 Z2 29 37 7 97 6,100 o.oii 300457
FE 438 Z2 30 38 7 105 6,400 o.oii 300461
FE 442 Z2 34 42 7 125 5,400 0.012 300465
FE 443 Z2 35 43 7 131 5,600 0.013 300472
FE 448 Z2 40 48 7 156 5,500 0.014 300477
FE 453 Z2 45 53 7 185 4,400 0.016 300484
FE 458 Z2 50 58 7 216 4,400 0.017 300490
FE 463 Z2 55 63 7 246 3,700 0.019 300498
FE 468 Z2 60 68 7 277 3,500 0.020 300502





Pictures

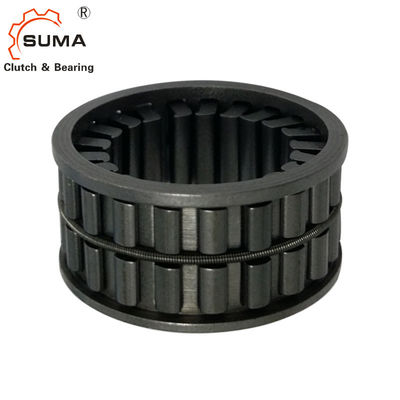

FE453Z FE455Z FE458Z Precision Freewheels One Way Sprag Clutch Bearing For Helicopter 1

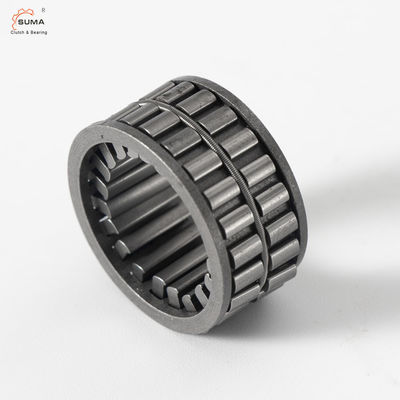

FE453Z FE455Z FE458Z Precision Freewheels One Way Sprag Clutch Bearing For Helicopter 2

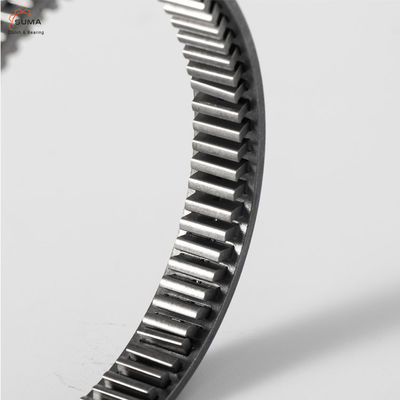

FE453Z FE455Z FE458Z Precision Freewheels One Way Sprag Clutch Bearing For Helicopter 3FE453Z FE455Z FE458Z Precision Freewheels One Way Sprag Clutch Bearing For Helicopter 4
