Place of Origin: | CHINA |
---|---|
Brand Name: | SUMA |
Certification: | ISO SGS |
Model Number: | BSEU90-85 |
Minimum Order Quantity: | 1 |
Price: | USD240-USD285 PER PIECE |
Packaging Details: | Carton Box / Wooden Box |
Delivery Time: | 7-10 Days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, Paypal |
Supply Ability: | 1000PCS Per Month |
Product Name: | Backstop Clutch BSEU90-85 | Material: | GCr15 Bearing Steel |
---|---|---|---|
Torque Capacity: | 4700Nm | Rotation Speed: | 250RPM |
Unit Weight: | 10Kg | Size: | 85*190*63mm |
Warranty: | 1 Year | OEM: | Accept |
High Light: | Freewheel Clutch Overrunning,BSEU Clutch Overrunning,BSEU Cam Clutch Bearing |

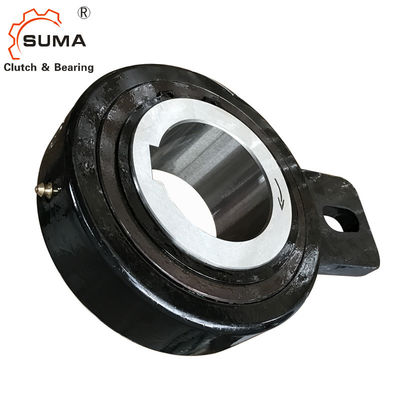

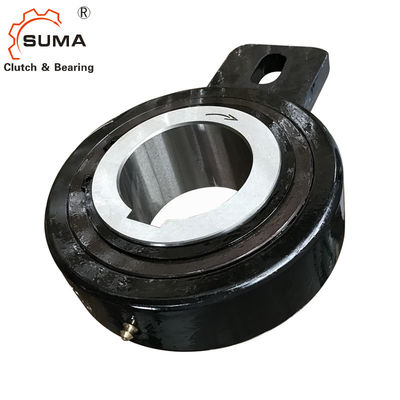

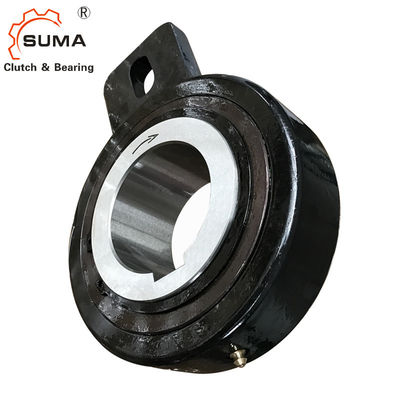

BSEU90-85 Bucket Backstop Clutch Freewheel Roller 1 Way Bearing
Features
BSEU series Cam Clutch was developed as European style Backstopping Cam Clutch which has easy usage. It has Cam & Roller construction that the roller works as a bearing same as the small size BS series Cam Clutch.
The outer race has special shape which was combined the torque arm, so only stopping the rotation is required.
You can select the correct model from various bore size from 20 mm to 90 mm in each 5 mm. Backstopping for the country elevator or the foods conveying conveyor which is used in the factory is the recommendation.
The recommends BS series Cam Clutch in the very dusty environment condition or the inclined conveyor and the bucket elevator which are used in outside location.
Dimensions and Capacities
Item | BSEU90-85 |
Material | GCr15 |
Bore dia. | 85 mm |
Outer dia. | 190 mm |
Width | 63 mm |
Torque capacity | 4700 N.m |
Overrunning limiting speed | 250 r/min |
Weight | 9.265-10.046 kg |
Package | Carton box, wooden box or as your requirements |
Model | Bore Size | Torque Capacity (N·m) |
Max. Overrunning (r/min) Inner Race |
D | D2 | L1 | L | B | F | b | N | E | J | W. MIN | W. Max | |
Dia ( H7) |
Keyway | |||||||||||||||
BSEU25-20 | 20 | 6×2.8 | 216 | 500 | 83 | 42 | 35 | 12 | 40 | 90 | 15 | 35 | 5 | 1 | 0.999 | 0.948 |
BSEU25-25 | 25 | 8×3.3 | 216 | 500 | 83 | 42 | 35 | 12 | 40 | 90 | 15 | 35 | 5 | 1 | ||
BSEU40-20 | 20 | 6×2.8 | 1,440 | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | 3.781 | 3.363 |
BSEU40-25 | 25 | 8×3.3 | 1,440 | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | ||
BSEU40-30 | 30 | 1,440 | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | |||
BSEU40-35 | 35 | 10×3.3 | 1,440 | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | ||
BSEU40-40 | 40 | 12× 3.3 | 1,440 | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | ||
BSEU70-45 | 45 | 14×3.8 | 3,140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 1.5 | 7.607 | 6.541 |
BSEU70-50 | 50 | 3,140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 1.5 | |||
BSEU70-55 | 55 | 16×4.3 | 3,140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 2 | ||
BSEU70-60 | 60 | 18×4.4 | 3,140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 2 | ||
BSEU70-65 | 65 | 3,140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 2 | |||
BSEU70-70 | 70 | 20×4.9 | 3,140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 2 | ||
BSEU90-75 | 75 | 4,700 | 250 | 190 | 120 | 63 | 20 | 80 | 165 | 20 | 40 | 15 | 2 | 10.046 | 9.265 | |
BSEU90-80 | 80 | 22×5.4 | 4,700 | 250 | 190 | 120 | 63 | 20 | 80 | 165 | 20 | 40 | 15 | 2 | ||
BSEU90-85 | 85 | 4,700 | 250 | 190 | 120 | 63 | 20 | 80 | 165 | 20 | 40 | 15 | 2 | |||
BSEU90-90 | 90 | 25×5.4 | 4,700 | 250 | 190 | 120 | 63 | 20 | 80 | 165 | 20 | 40 | 15 | 2 |
