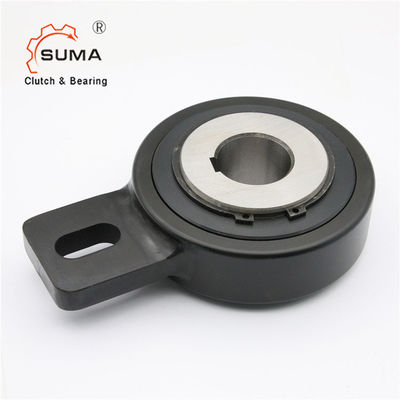

RSBW60 RSBW70 One Way Conveyor Backstop Bearing 2550Nm Torque

Name: RSBW60 RSBW70 One Way Conveyor Backstop Bearing 2550Nm Torque
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: RSBW60 / RSBW70
Price: 125.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SUMA

Certification: ISO SGS

Model Number: RSBW60 / RSBW70

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD100-USD150 PER PIECE

Packaging Details: Carton Box

Delivery Time: 7-10 Days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability: 1000PCS Per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    Conveyor Backstop Bearing, One Way Backstop Bearing, RSBW60  conveyor belt bearings


Product Name:	Backstop Clutch RSBW60 / RSBW70	Material:	GCr15 Bearing Steel
Size:	6016154mm / 7016154mm	Torque Capacity:	2550Nm
Rotation Speed:	250RPM	Unit Weight:	6.5Kg
Warranty:	1 Year	OEM:	Accept

Product Name:	Backstop Clutch RSBW60 / RSBW70
Material:	GCr15 Bearing Steel
Size:	6016154mm / 7016154mm
Torque Capacity:	2550Nm
Rotation Speed:	250RPM
Unit Weight:	6.5Kg
Warranty:	1 Year
OEM:	Accept

RSBW60 RSBW70 One Way Conveyor Backstop Bearing 2550Nm Torque

RSBW60 RSBW70 One Way Backstop Clutch Bearing for Conveyor System
Features
Structure:
Type RSBW is a DC sprag type freewheel. It is self-contained, centered by plain bearings for low rotational speeds, and sealed using shield protected O rings.

Installation :
The design allows installation in difficult environments such a high humidity or water splash areas. A bolt, secured to a fixed part of the machine and passing through the slot in the torque arm, provides the rotational stop.
Radial clearance on this bolt should be equal to 1-3% of the slot width. The torque arm and the bearings must not be prestressed .

Technical Datas

Product name	Backstop Clutch Bearings
Model	RSBW60 / RSBW70
Torque capacity	2550Nm
Overrunning speeds	250 min -1
Inner diameter	60mm / 70mm
Outer diameter	161mm
Thickness	55mm
Weight	6.5kg
Application	Fishinery machinery, Reducer, household appliances
Package	Carton Box
Payment terms	TT, L/C, D/A, D/P, Western Union, Paypal
Delivery time	7-10 Days

Dimensions and Capacities

Type	Size		Overrunning Speeds									Weight
RSBW	d^H7	T_KN¹)	n_imax	D	L 1	F	E	B	N	L	b^H11
	[mm]	[Nm]	[min^-1]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[kg]
	20	375	400	106	35	113	102.5	40	35	15	18	2
	25	606	400	106	48	113	102.5	40	35	15	18	2.6
	30	606	400	106	48	113	102.5	40	35	15	18	2.5
	35M	375	400	106	35	113	102.5	40	35	15	18	2
	35	606	400	106	48	113	102.5	40	35	15	18	2.4
	40	1295	300	132	52	125	115	60	35	15	18	4.6
	45	1295	300	132	52	125	115	60	35	15	18	4.5
	50	1295	300	132	52	125	115	60	35	15	18	4.5
	55	1295	300	132	52	125	115	60	35	15	18	4.4
	60	2550	250	161	54	140	130	70	35	15	18	6.5
	70	2550	250	161	54	140	130	70	35	15	18	6.4
	80	4875	200	190	70	165	150	70	45	20	25	9.9
	90	4875	200	190	70	165	150	70	45	20	25	9.8

Mounting and Coupling

Pictures

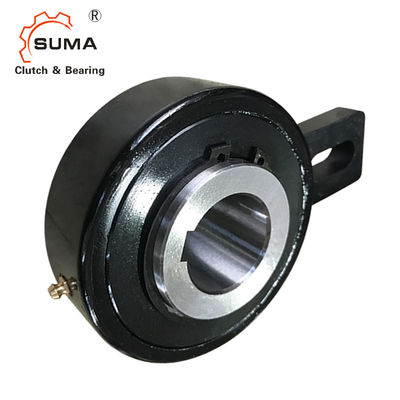

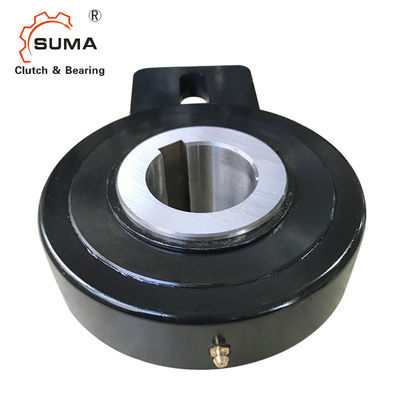

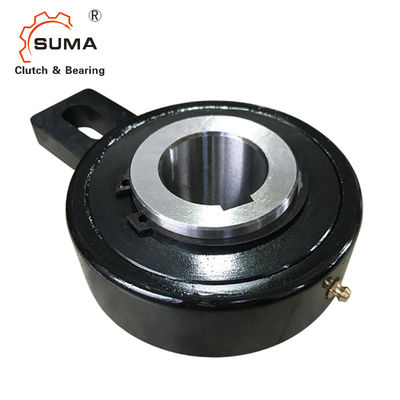

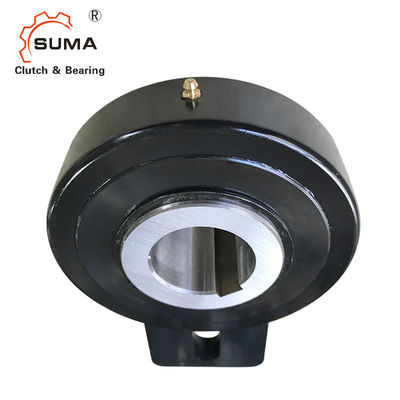

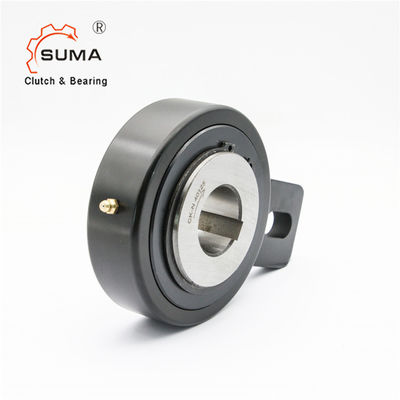

RSBW60 RSBW70 One Way Conveyor Backstop Bearing 2550Nm Torque

FAQ

Q: How do you pack the goods?

Total less than 25 KG : 29*28*19CM carton box

Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

Small items: In stock.
Medium Items: 10-15 Days
Big items: 20-25 Days
