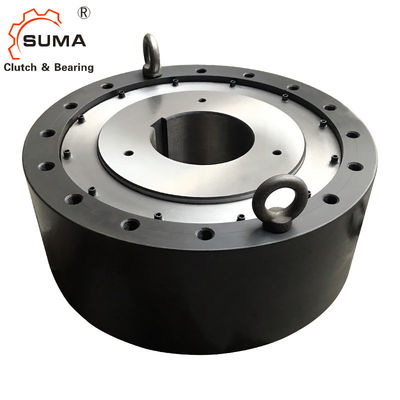

BS85 BS85-75 Holdback Backstopping Clutch One Way Cam Clutch Bearings

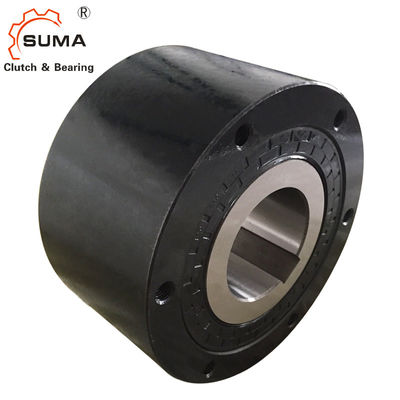

  • BS85 BS85-75 Holdback Backstopping Clutch One Way Cam Clutch Bearings

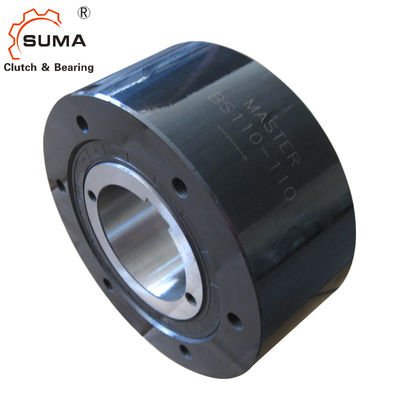

  • BS85 BS85-75 Holdback Backstopping Clutch One Way Cam Clutch Bearings

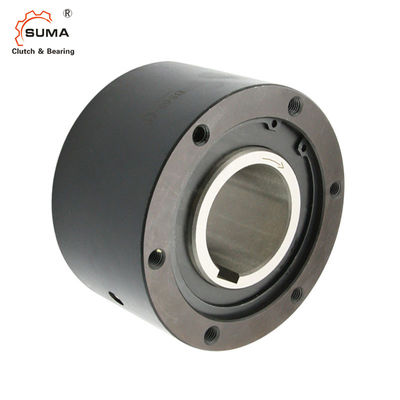

  • BS85 BS85-75 Holdback Backstopping Clutch One Way Cam Clutch Bearings
  • BS85 BS85-75 Holdback Backstopping Clutch One Way Cam Clutch Bearings

BS85 BS85-75 Holdback Backstopping Clutch One Way Cam Clutch Bearings

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number BS85
Product Details
Product Name:
Cam Clutch Bearing BS85
Material:
GCr15 Bearing Steel
Bore Size:
60-85mm
Torque Capacity:
5880Nm
Unit Weight:
27Kg
Warranty:
1 Year
Rotation Speed:
300RPM
Outer Dia.:
210mm
Thickness:
115 Mm
High Light:

Backstopping Custom Made Bearings

,

115MM Custom Made Bearings

,

Backstopping Custom Bearings

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD360-USD450 PER PIECE
Packaging Details
Carton Box
Delivery Time
10-15 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability
1000PCS Per Month
Product Description

               BS85 BS85-75 Holdback Backstopping Clutch One Way Cam Clutch Bearings



Features

  The BS series Cam Clutches are intended for applications where reverse rotation of the slow speed conveyor head shaft is to be prevented (backstopping).



1. For prevention of rotation in the reverse direction at slow speeds on conveyors or pumps.
2. Before installation, verify that the direction of rotation of the inner race of the BS Cam Clutch (shown by the arrow on the inner

race) is the same as the direction of rotation of the conveyor.
3. Securely install the torque arm to the BS Cam Clutch using bolts of strength 10.9 or higher. Make sure that the contact between





Dimensions and Capacities






Model

Torque
Capacity
(Nm)
Max.
Overrunning
(r/min)
Inner Race

Drag
Torque
(Nm)


A


B


C


PCD
D


E


S

H-M
Size× Pitch
× No.of Tapped Holes


Weight

(kg)

BS30 294 350 0.58 64 90 64 80 45 13 M 6 ×P1.0×4 2.1
BS50 784 300 0.98 67 125 67 110 70 16 M 8 ×P1.25×4 4.0
BS65 1570 340 3.92 90 160 85 140 90 20 M10 ×P1.5×6 11.5
BS75 2450 300 5.88 90 170 85 150 100 20 M10 ×P1.5×6 13.1
BS85 5880 300 7.84 115 210 110 185 115 30 M12 ×P1.75×6 24.7
BS95 7840 250 9.8 115 230 110 200 130 30 M14 ×P2.0× 6 29.4
BS110 10800 250 14.7 115 270 110 220 150 30 M16 ×P2.0× 6 34.2
BS135 15700 200 19.6 135 320 130 280 180 30 M16 ×P2.0× 8 68
Type

Torque Capacity

(Nm)

Max. Overrunning

(r/min)

Inner race

Drag

Torque

(Nm)

A B C

PCD

D

E S

H-M

T.H.S.XP-Q'ty

G.F.H. (Size)

Q. of G.

(kg)

BS 160 24,500 100 34.3 135 360 130 315 220 40 M20xP2.5-10 PT 1/4 0.12
BS 200 37,200 100 44.1 150 430 145 380 265 40 M22xP2.5- 8 PT 1/4 0.14
BS 220 49,000 80 73.5 235 500 230 420 290 40 M20xP2.5-16 PT 1/4 0.8
BS 250 88,200 50 93.1 295 600 290 530 330 50 M24xP3.0-16 PT 1/4 1.1
BS 270 123,000 50 98 295 650 290 575 370 50 M24xP3.0-16 PT 1/4 1.2
BS300 176,000 50 108 295 780 290 690 470 60 M30xP3.5-16 PT 1/4 1.3
BS335 265,000 50 137 305 850 320 750 495 70 M36xP4.0-16 PT 1/4 1.4
BS350 314,000 50 157 320 930 360 815 535 70 M36xP4.0-16 PT 1/4 1.5
BS425 510,000 50 216 440 1,030 450 940 635 70 M36xP4.0-18 Oil 6,000ml
BS450 686,000 50 245 450 1,090 480 990 645 80 M42xP4.5-18 Oil 7,000ml



4. Recommended shaft tolerance is h7 or h8.
5. When inserting the BS Cam Clutch on the shaft, apply pressure only on the inner race. Do not tap the inner race directly with
a hammer or exert any force upon the outer race, dust seal, or dust plate.



Mounting and Coupling



6. Always use a parallel key for installation onto the shaft and then fix the BS Cam Clutch to the shaft with the end plate. Never use a tapered key.
7. When installing models above BS160 (grease lubricated types), place one of the four oil plugs in
The direct bottom location. This will allow for easy drainage of the grease for cleaning.
8. While the shaft is rotating, the end of the torque arm will swing to some extent in the direction of rotation. Support the torque arm

end only in the direction of rotation, but be sure to allow it a certain amount of free swing. If the torque arm end is fixed securely

(see installation diagram), the inside of the clutch becomes twisted, and this can result in damage to the components.
9. For models BS30 to BS200, a single torque arm on one side is sufficient, but for models 220 to BS450, use two torque arms, one on each side. Install the torque arms evenly so the force is transmitted through the center of the clutch.
10. Torque arms for the BS Cam Clutch are standardized.
