Name: AE35 35*100*48mm One Way Holdback Freewheel Clutch Bearings
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: AE35
Price: 63.00 USD
Availability: InStock

Home Products Roller Clutch Bearing

AE35 3510048mm One Way Holdback Freewheel Clutch Bearings

Product Details:

Place of Origin:	CHINA
Brand Name:	SUMA
Certification:	ISO SGS
Model Number:	AE35

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD56-USD70 PER PIECE
Packaging Details:	Carton Box
Delivery Time:	3-5 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability:	1000PCS Per Month

Contact Now

Detailed Product Description

Product Name:	One Way Clutch Bearing AE35	Material:	GCr15 Bearing Steel
Torque Capacity:	720Nm	Rotation Speed:	2100RPM
Unit Weight:	2Kg	Warranty:	1 Year
Size:	3010048mm	OEM:	Accept
Highlight:	Freewheel Clutch Bearings , One Way Holdback Clutch Bearings , GCr15 Material Roller Clutch Bearing

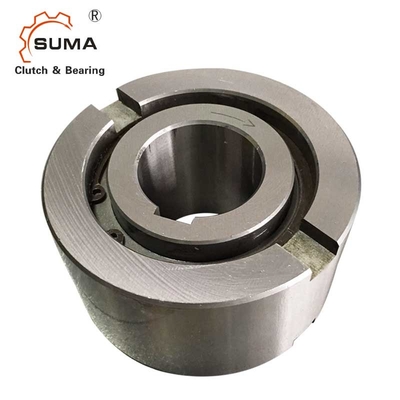

AE35 35*100*48mm One Way Holdback Freewheel Clutch Bearings

Features

Name:	Roller type one way clutch bearings
Model Numbe	AE35(35mmx100mmx48mm)
Dimension:	35mmx100mmx48mm
Material:	Chrome Steel /GCr15
Shields:	Open type /Shield
Packing:	Individual packing/ Industrial Packing
Brand:	SUMA
Payment term:	T/T, L/C; West Union, Paypal
Market:	Europe 70%; Asia 20%; Other Market 10%
Origin:	Jiangsu Province
Descriptions:	Type AE is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation.
Mechanical properties	Nominal outside diameter is a standard ball bearing dimension.The inner race is keyed to the shaft. The outer race has a h6 tolerance and should be fitted in a housing with a K7 tolerance. Additional side notches provide for positive torque transmission. If the housing tolerance is to R6, use of the notches is not necessary, but the housing must be strong enough to not expand after assembly. This design can accept an axial misalignment of inner and outer race of ± S/2.
Application Fields:	automobile; motorcycle ;textile machinery; printing machinery ;home appliance; construction equipment; agricultural machinery; plastic machinery; speed reducer; electrical roller ;medical equipment ;fitness equipment; food machinery

Technical Datas

AE35 35*100*48mm One Way Holdback Freewheel Clutch Bearings 0

Dimensions and Capacities

Type	Size		Overrunning speeds											Weight	Drag torque
AE	d^H7 (mm)	T_KN¹ (Nm )	N_imax²⁾ (min^-1)	N_amax³⁾ (min^-1)	D_h6 (mm)	D₅ (mm)	D₆ (mm)	L (mm)	s (mm)	f (mm)	e (mm)	b (mm)	t (mm)	(kg)	T_R (Ncm)
	12	17	3100	6000	37	28	20	20	4.5	0.5	0.8	6	3	0.11	0.7
	15	55	2300	5400	47	37	26	30	4.5	0.8	1.2	7	3.5	0.30	3.5
	20	146	2000	3600	62	50	35	34	5.5	0.8	1.2	8	3.5	0.55	8.4
	25	285	1700	2600	80	68	45	37	6.5	1	1.8	9	4	0.98	14
	30	500	1500	2100	90	75	50	44	6.2	1	1.8	12	5	1.50	23
	35	720	1300	1950	100	80	55	48	3.8	1	1.8	13	6	2.00	60
	40	1030	1200	1700	110	90	60	56	3.8	1.5	1.8	15	7	2.80	72
	45	1125	1050	1600	120	95	65	56	3.8	1.5	2.6	16	7	3.30	140
	50	2150	950	1300	130	110	75	63	5.8	1.5	2.6	17	8	4.20	180
	55	2675	850	1200	140	115	82	67	3.8	2	2.6	18	9	5.20	190
	60	3500	800	1100	150	125	90	78	7.6	2	2.6	18	9	6.80	240
	70	5813	650	900	170	140	100	95	7.6	2.5	2.6	20	9	10.5	320
