GVG35 GVG 35 One Way Clutch Backstop Clutch Sprag Clutch Bearings 606Nm
Features of GVG35 backstop clutch
GVG series freewheels are with sprags cages, centering between the inner race and outer race is carried out by means of bushes.
the torque forces are transmitted from the shaft to the inner race by means of a key.
Shaft tolerance must be h6 .
When the freewheel is used as a non return device, the lever fixed to the outer race must be sandwiched between two brackets; otherwise a pin must be inserted
in the looped hole. When locked to the frame of a machine, it stops the freewheel rotating
the bushes, the lever must be given a certain amount of clearance to allow for the axial movement.
the freewheel is supplied already greased .
Dimensions and Capacities of GVG35 backstop clutch
Model |
dH7 mm |
D mm |
L mm |
B1 mm |
L1 mm |
b2 mm |
I2 mm |
I3 mm |
I4 mm |
Weight kg |
Max Speed |
Torque Nm |
GVG20 | 20 | 106 | 48 | 40 | 15 | 18 | 35 | 10.5 | 113 | 2.5 | 400 | 606 |
GVG25 | 25 | 106 | 48 | 40 | 15 | 18 | 35 | 10.5 | 113 | 2.4 | 400 | 606 |
GVG30 | 30 | 106 | 48 | 40 | 15 | 18 | 35 | 10.5 | 113 | 2.3 | 400 | 606 |
GVG35 | 35 | 106 | 48 | 40 | 15 | 18 | 35 | 10.5 | 125 | 2.2 | 400 | 606 |
GVG40 | 40 | 132 | 52 | 60 | 15 | 18 | 35 | 10 | 125 | 4 | 300 | 1295 |
GVG45 | 45 | 132 | 52 | 60 | 15 | 18 | 35 | 10 | 125 | 3.8 | 300 | 1295 |
GVG50 | 50 | 132 | 52 | 60 | 15 | 18 | 35 | 10 | 125 | 3.7 | 300 | 1295 |
GVG55 | 55 | 132 | 52 | 60 | 15 | 18 | 35 | 10 | 125 | 3.5 | 300 | 1295 |
GVG60 | 60 | 161 | 54 | 70 | 15 | 18 | 35 | 10 | 140 | 6.1 | 250 | 2550 |
GVG70 | 70 | 161 | 54 | 70 | 15 | 18 | 35 | 10 | 140 | 5.7 | 250 | 2550 |
GVG80 | 80 | 190 | 70 | 70 | 20 | 25 | 45 | 15 | 165 | 10.2 | 200 | 4875 |
GVG90 | 90 | 190 | 70 | 70 | 20 | 25 | 45 | 15 | 165 | 9.6 | 200 | 4875 |
Kyey DIN 6885
2)Maximum allowed speed

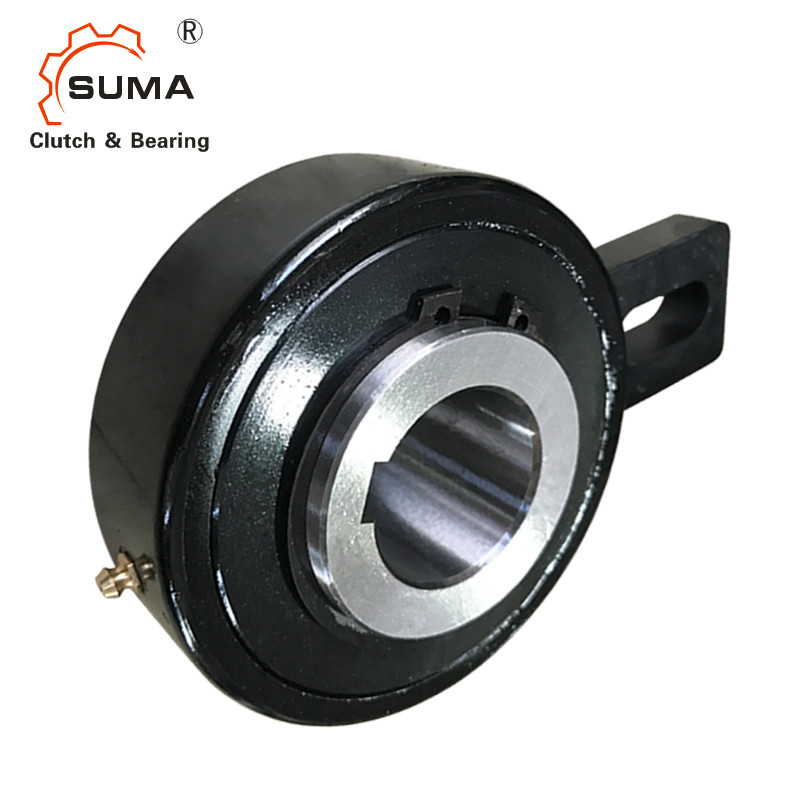

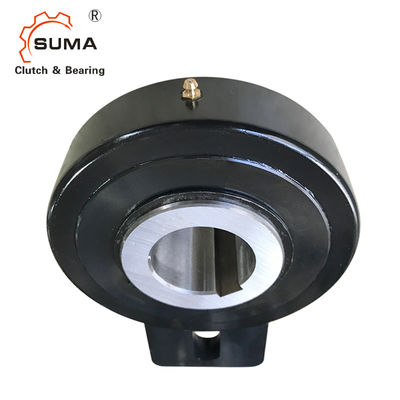

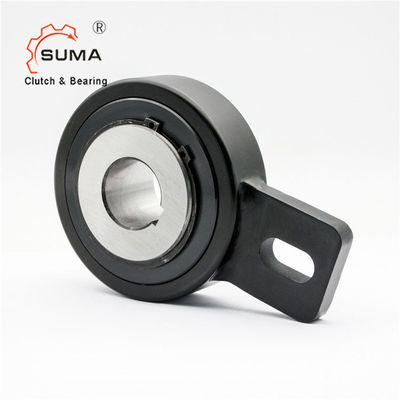

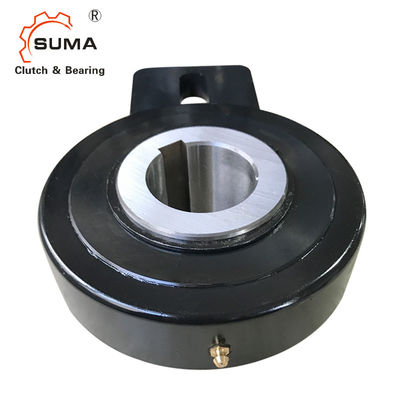

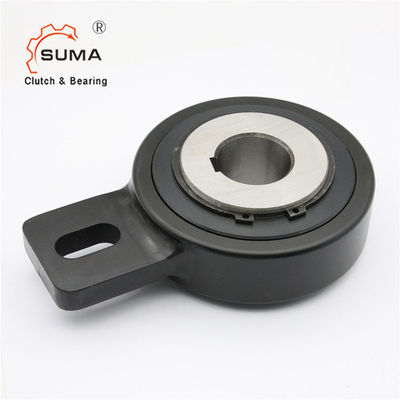

Pictures of GVG35 backstop clutch
