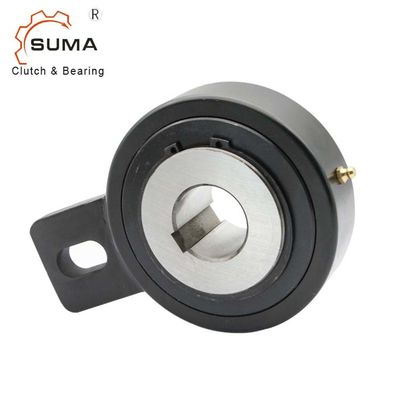

RSBW40 Bucket Elevetor Backstop Bearing

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: RSBW40
Minimum Order Quantity: 1
Price: USD90-USD120 PER PIECE
Packaging Details: Carton Box
Delivery Time: 7-10 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 1000PCS Per Month
Product Name: Backstop Clutch RSBW40 Material: GCr15 Bearing Steel
Size: 40*132*52mm Torque Capacity: 1295Nm
Rotation Speed: 300RPM Unit Weight: 4.6Kg
Warranty: 1 Year OEM: Accept
High Light:

RSBW40 Backstop Bearing

,

52MM Backstop Bearing

,

RSBW40 Backstop Cam Clutch

                               RSBW40 Bucket Elevetor Backstop Clutch Bearing
 Features
Structure:
 Type RSBW is a DC sprag type freewheel. It is self-contained, centered by plain bearings for low rotational speeds, and sealed using shield protected O rings.
 Delivery :
 Unit is delivered grease lubricated ready for installation in either a horizontal or vertical position.
 Application:
 Primarily used as a backstop. This type provide a high torque capacity with a minimum space requirement.
 Installation :

The design allows installation in difficult environments such a high humidity or water splash areas. A bolt, secured to a fixed part of the machine and passing through the slot in the torque arm, provides the rotational stop.
Radial clearance on this bolt should be equal to 1-3% of the slot width. The torque arm and the bearings must not be prestressed .

Technical Datas

Product name Sprag type freewheel clutches
Model RSBW40
Torque capacity 1295Nm
Overrunning speeds 300 min -1
Inner diameter 40mm
Outer diameter 132mm
Thickness 52mm
Weight 4.6kg
Application Fishinery machinery, Reducer, household appliances
Package Carton Box
Payment terms TT, L/C, D/A, D/P, Western Union, Paypal
Delivery time 7-10 Days


Dimensions and Capacities




Type Size   Overrunning Speeds   Weight









RSBW

dH7 TKN1) nimax D L 1 F E B N L bH11
[mm] [Nm] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
20 375 400 106 35 113 102.5 40 35 15 18 2
25 606 400 106 48 113 102.5 40 35 15 18 2.6
30 606 400 106 48 113 102.5 40 35 15 18 2.5
35M 375 400 106 35 113 102.5 40 35 15 18 2
35 606 400 106 48 113 102.5 40 35 15 18 2.4
40 1295 300 132 52 125 115 60 35 15 18 4.6
45 1295 300 132 52 125 115 60 35 15 18 4.5
50 1295 300 132 52 125 115 60 35 15 18 4.5
55 1295 300 132 52 125 115 60 35 15 18 4.4
60 2550 250 161 54 140 130 70 35 15 18 6.5
70 2550 250 161 54 140 130 70 35 15 18 6.4
80 4875 200 190 70 165 150 70 45 20 25 9.9
90 4875 200 190 70 165 150 70 45 20 25 9.8

Mounting and Coupling


Pictures

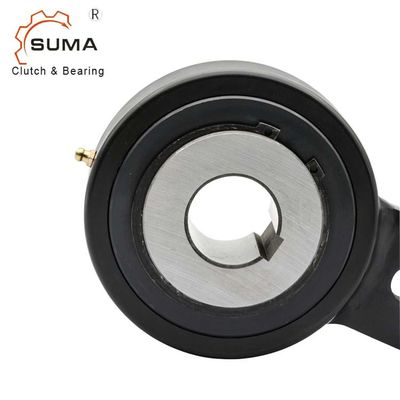

RSBW40 Bucket Elevetor Backstop Bearing 2

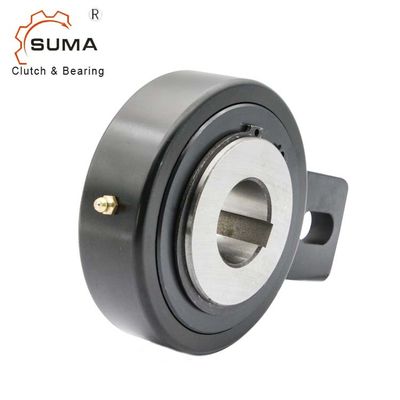

RSBW40 Bucket Elevetor Backstop Bearing 3
