FRHD1450 Holdback Backstops Clutch Sprag Freewheel Clutch One Way Bearing

Product Details:

Place of Origin:	CHINA
Brand Name:	SUMA
Certification:	ISO SGS
Model Number:	FRHD1450

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	USD5000-USD8000 PER PIECE
Packaging Details:	Wooden Box
Delivery Time:	20 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability:	200 PCS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Backstop Clutch Bearings FRHD1450	Material:	Bearing Steel GCr15
Bore Range:	9 Inch	Outer Dia. Range:	12inch
Torque:	185000 Lb-ft	Package:	Wooden Box
Warranty:	1 Year	OEM:	Accept
Highlight:	One Way Bearing Holdback Backstops , FRHD1450 Holdback Backstops , Clutch Sprag Freewheel Clutch

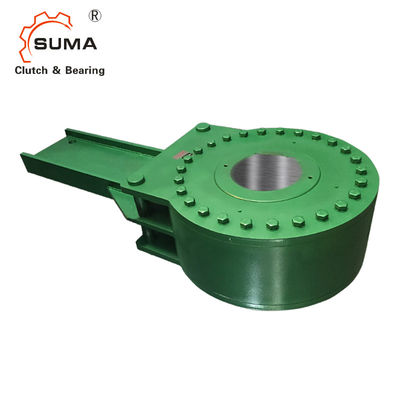

FRHD1450 Holdback Backstops Clutch Sprag Freewheel Clutch One Way Bearing

FRHD Freewheel Backstop.pdf

Features

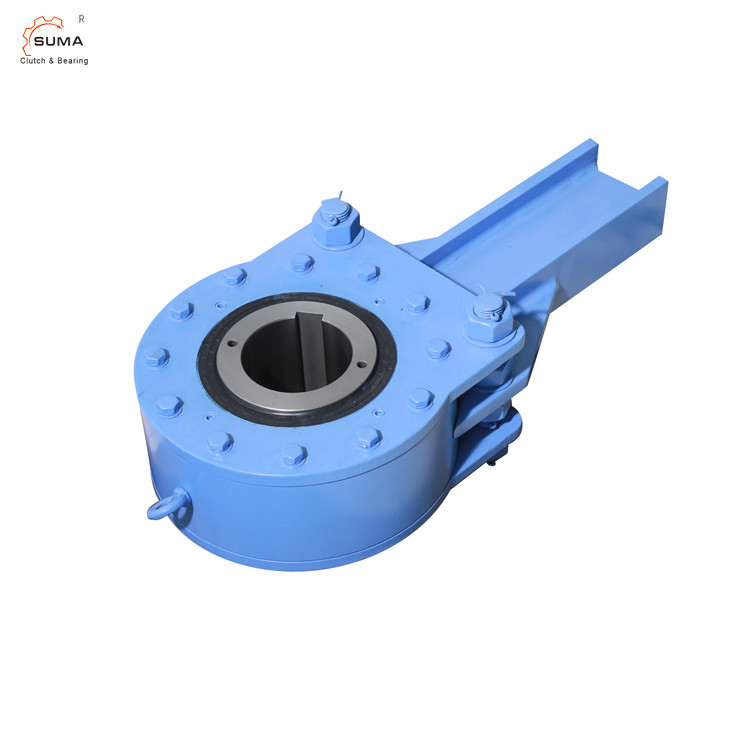

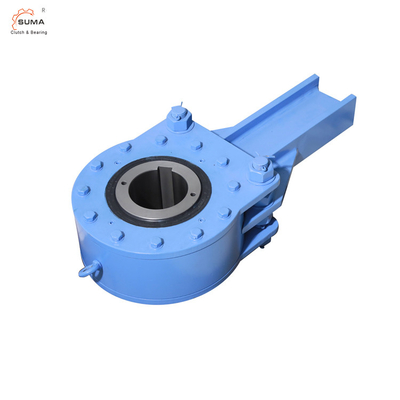

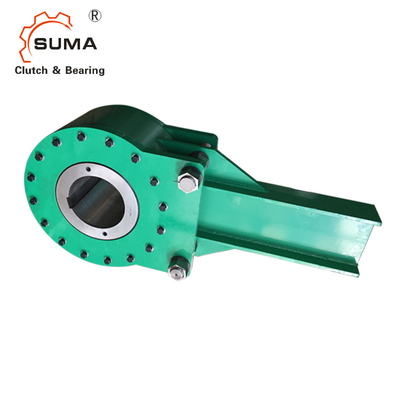

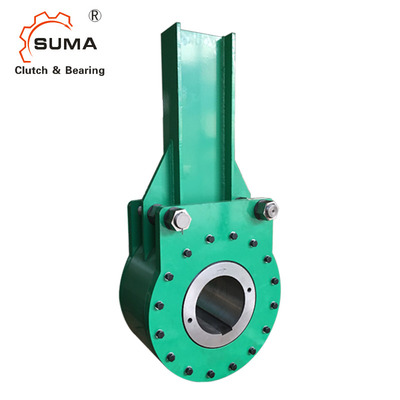

Complete Freewheels FRHD with lever arm are sealed sprag freewheels with ball bearings. They are supplied oil-filled and ready for installation. The freewheels are arranged on through shafts or shaft ends.

The freewheels FRHD are used as:
➧ Backstops for low-speed applications. They are designed for use in inclined conveyor-belt systems, elevators and pumps. Taconite seals protect the backstops when conditions are dirty and dusty. Nominal torques up to 900 000 lb-ft. Bores up to 21 inch .

Dimensions and Capacities

Freewheel Size	Maximum torque MM lb-ft	Nominal torque MN lb-ft	Maximum speed inner ring freewheels rpm	Bore d max. inch	A inch	C inch	D inch	E inch	H inch	L inch	O inch	P inch	Q inch	Weight lbs
FRHD 700	7500	3750	620	3.44	8	6	5.25	0.5	36	6	6.75	16.38	32	135
FRHD 775	15000	7500	540	3.75	9.75	8	6	1	42.88	7.5	9	20.38	38	310
FRHD 800	24000	12000	460	4.5	10.5	10	7	1	43.25	8	9.5	22.13	38	360
FRHD 900	37000	18500	400	5.44	12	10	8	1.5	54	7.63	9.38	22.75	48	480
FRHD 950	46000	23000	360	7	14	12	10	1.5	69	8	10	25	62	530
FRHD 1000	56000	28000	360	7	17	8	9	4.13	80.38	8.75	-	23.13	72	550
FRHD 1100	90000	45000	360	7	17	8	9	4.13	80.38	10	-	23.13	72	795
FRHD 1200	185000	92500	250	9	23	10	12	4.94	89	11	-	28	78	1300
FRHD 1300	220000	110000	220	10	25	12	14	5.25	95	12	-	30	82.88	1674
FRHD 1400	280000	140000	200	12	30	18	16	6.25	107	13	-	36	94	2200
FRHD 1450	380000	190000	200	12	30	18	16	6.25	107	15	-	36	94	2500
FRHD 1500	580000	290000	200	12	31	18	15.1	6.25	107	17.6	-	36	94	2440
FRHD 1600	746000	373000	140	14	32.5	20	17.6	6.25	124	19.3	-	30.44	108	3400
FRHD 1700	1250000	625000	120	18	42.5	24.5	23	7.88	140	20	-	48	120	7000
FRHD 1800	1800000	900000	100	21	52	30	26.5	10.5	170	23	-	54	144	12000
