STO30 STO35 STO40 Support Rollers Needle Bearings With Inner Ring
  • STO30 STO35 STO40 Support Rollers Needle Bearings With Inner Ring

STO30 STO35 STO40 Support Rollers Needle Bearings With Inner Ring

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number STO40
Product Details
Product Name:
Support Rollers STO40
Material:
Bearing Steel GCr15
Size:
17*40*15.8mm
Package:
Roll Pack + Carton Box
Warranty:
6 Months
OEM:
Accept
Weight:
0.11Kg
Port:
Shanghai Ningbo
High Light:

STO40 Support Rollers Needle Bearings

,

STO35 Support Rollers Needle Bearings

,

STO30 Support Rollers

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD5-USD10 PER PIECE
Packaging Details
Roll pack + Carton Box
Delivery Time
2-5 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability
100000 PCS PER MONTH
Product Description

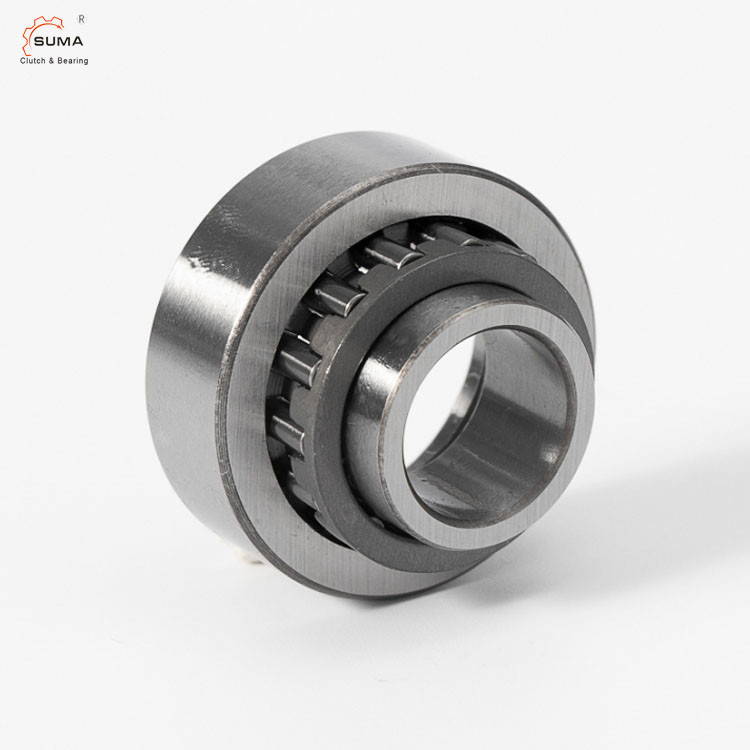

STO30 STO35 STO40 Support Rollers Needle Bearings with Inner Ring



Features of STO Support Rollers

STO Series Support rollers, without flange rings, with an inner ring .

RSTO Series Support rollers, without flange rings, with an inner ring .

The STO type has an inner ring, and the inner and outer rings and their matching needle roller cage assemblies can be installed separately.

The support roller RSTO type does not have an inner ring, and the support roller can run directly on the hardened shaft as the raceway.

Since RSTO and STO type support rollers do not have ribs and end face retaining rings, they must be axially guided during installation, and their guiding surfaces must be at least precision machined.



Dimensions and Capacities of Yoke Type Track Rollers

STO30 STO35 STO40 Support Rollers Needle Bearings With Inner Ring 0

Dimensions Mass Designation
D d C B D1 F E r r1,2     C C0 Pu Fr F0r
mm                 kg   kN   kN kN   r/min
19 6 9,8 10 10 13 0,3 0,3 0,017 STO 6 TN 3,74 4,5 0,5 4,25 6,1 7000
  6 11,8 12 16 10 0,3 0,3 0,022 NA 22/6.2RS 4,02 3,65 0,425 2,55 3,6 7000
24 8 9,8 10 12 15 0,3 0,3 0,026 STO 8 TN 4,13 5,4 0,6 7,5 10,8 7000
  8 11,8 12 18 12 0,3 0,3 0,034 NA 22/8.2RS 4,68 4,55 0,54 5,3 7,5 6700
30 10 11,8 12 14 20 0,3 0,3 0,049 STO 10 8,25 8,8 1,04 8,5 12,2 6000
  10 13,8 14 20 14 0,6 0,3 0,06 NA2200.2RS 6,6 7,5 0,88 12 17,3 6300
32 12 11,8 12 16 22 0,3 0,3 0,057 STO 12 8,8 9,8 1,18 8,3 12 5600
  12 13,8 14 22 16 0,6 0,3 0,067 NA2201.2RS 7,04 8,5 1 11,6 16,6 6000
35 15 11,8 12 20 26 0,3 0,3 0,063 STO 15 9,13 10,6 1,27 7,1 10 5000
  15 13,8 14 26 20 0,6 0,3 0,075 NA2202.2RS 7,48 9,3 1,12 9,5 13,7 5000
40 17 15,8 16 22 29 0,3 0,3 0,11 STO 17 14,2 17,6 2,08 12 17,3 4500
  17 15,8 16 28 22 1 0,3 0,11 NA2203.2RS 9,52 13,2 1,6 15,3 22 4500
47 20 15,8 16 25 32 0,3 0,3 0,15 STO 20 16,1 21,2 2,5 18,6 26,5 4000
  20 17,8 18 33 25 1 0,3 0,18 NA2204.2RS 16,1 18 2,16 17,6 25,5 4000
52 25 15,8 16 30 37 0,3 0,3 0,18 STO 25 16,5 22,8 2,7 18 26 3400
  25 17,8 18 38 30 1 0,3 0,21 NA2205.2RS 16,8 20 2,4 17,3 24,5 3400
62 30 19,8 20 38 46 0,6 0,6 0,31 STO 30 22,9 34,5 4,25 23,6 33,5 2800
  30 19,8 20 43 35 1 0,3 0,32 NA2206.2RS 17,9 25,5 3,05 28,5 40,5 2600
72 35 19,8 20 42 50 0,6 0,6 0,44 STO 35 25,5 40,5 5 36 51 2200
  35 22,7 23 50 42 1,1 0,6 0,51 NA2207.2RS 22,4 35,5 4,3 38 54 2200
80 40 19,8 20 50 58 1 1 0,53 STO 40 23,8 39 4,75 34,5 49 1900
  40 22,7 23 57 48 1,1 0,6 0,63 NA2208.2RS 27,5 40,5 5 35,5 51 1900
85 45 19,8 20 55 63 1 1 0,58 STO 45 25,1 43 5,3 34,5 50 1700
90 50 19,8 20 60 68 1 1 0,62 STO 50 26 45,5 5,7 34,5 50 1600
  50 22,7 23 68 1,1 0,6 0,69 NA2210.2RS 28,1 43 5,3 34,5 50 1600



STO30 STO35 STO40 Support Rollers Needle Bearings With Inner Ring 1

PACKAGE of Support Rollers

STO30 STO35 STO40 Support Rollers Needle Bearings With Inner Ring 2



STO30 STO35 STO40 Support Rollers Needle Bearings With Inner Ring 3
