RNAO5 GCr15 Yoke Type 8MM Needle Roller Bearing
  • RNAO5 GCr15 Yoke Type 8MM Needle Roller Bearing
  • RNAO5 GCr15 Yoke Type 8MM Needle Roller Bearing
RNAO5 GCr15 Yoke Type 8MM Needle Roller Bearing

RNAO5 GCr15 Yoke Type 8MM Needle Roller Bearing

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number RNAO5
Product Details
Product Name:
Yoke Type Track Roller Bearing RNAO5
Material:
Bearing Steel GCr15
Size:
5*10*8mm
Package:
Roll Pack + Carton Box
Warranty:
6 Months
OEM:
Accept
Weight:
0.0028Kg
Port:
Shanghai Ningbo
High Light:

RNAO5 Needle Roller Bearing

,

8MM Needle Roller Bearing

,

GCr15 Bearing Track Roller

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD9-USD11 PER PIECE
Packaging Details
Roll pack + Carton Box
Delivery Time
2-5 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability
100000 PCS PER MONTH
Product Description

RNAO5 GCr15 Yoke Type 8MM Needle Roller Bearing



Cam followers are a specific type of needle or roller bearing that, as the name suggests, follow cams.

You might need yoke type instead. These are sealed needle rollers that are designed for minimal friction.



Dimensions and Capacities

RNAO5 GCr15 Yoke Type 8MM Needle Roller Bearing 0RNAO5 GCr15 Yoke Type 8MM Needle Roller Bearing 1

Shaft Diameter Bearing Designation MassApprox Borndary Dimensions Basic Load Rating Limiting Speed
Fw D C E CrDynamic CorStatic Oil
mm g mm N rpm
5 RNAO 5×10×8 TN 2.8 5 10 8 8 2050 1720 27800
6 RNAO 6×13×8 TN 5 6 13 8 9 2300 1880 30000
7 RNAO 7×14×8 TN 5 7 14 8 10 2250 1950 31000
8 RNAO 8×15×10 TN 7.8 8 15 10 11 3050 3920 28000
10 RNAO 10×17×10 TN 9.1 10 17 10 13 3960 4500 20000
12 RNAO 12×19×13.5 TN 14 12 19 13.5 15 5400 7500 22000
RNAO 12×22×12 TN 17.9 12 22 12 18 8950 8000 23000
15 RNAO 15×23×13 18.5 15 23 13 19 6500 8900 21100
16 RNAO 16×24×13 19.8 16 24 13 20 6200 8400 21100
*RNAO 16×24×20 29.7 16 24 20 20 10200 14800 21100
RNAO 16×28×12 29.7 16 28 12 22 9500 10500 18000
17 RNAO 17×25×13 21 17 25 13 21 9400 11600 18000
18 RNAO 18×30×24 65 18 30 24 24 12100 16500 17600
20 RNAO 20×28×13 24.5 20 28 13 24 7800 9600 16000
*RNAO 20×28×26 48.1 20 28 26 24 10080 20500 16000
RNAO 20×32×12 36.6 20 32 12 26 10100 14100 16000
22 RNAO 22×30×13 25.2 22 30 13 26 9200 12000 14000
RNAO 22×35×16 58 22 35 16 29 10000 15500 16000
25 RNAO 25×35×17 49 25 35 17 29 10900 22000 15020
*RNAO 25×35×26 67.8 25 35 26 29 12400 25000 15020
RNAO 25×37×16 59.2 25 37 16 32 15000 20900 12000
*RNAO 25×37×32 108 25 37 32 32 25000 38900 12000
26 RNAO 26×39×13 59 26 39 13 30 87600 10200 15020
30 RNAO 30×40×17 59 30 40 17 35 12600 24000 10050
*RNAO 30×40×26 92 30 40 26 35 16000 32000 10050
RNAO 30×42×16 49.9 30 42 16 37 13000 23200 10050
*RNAO 30×42×32 126 30 42 32 37 29500 47000 10050
35 RNAO 35×45×13 50 35 45 13 40 10200 22000 10000
RNAO 35×45×17 60 35 45 17 40 17800 24500 10000
*RNAO 35×45×26 88 35 45 26 40 20500 40000 10000
RNAO 35×47×16 75 35 47 16 42 20400 31500 10000
RNAO 35×47×18 86 35 47 18 42 22500 35000 10000
*RNAO 35×47×32 149 35 47 32 42 32000 55000 10000
37 RNAO 37×52×18 115 37 52 18 44 18900 35500 8800
40 RNAO 40×50×17 72 40 50 17 45 15400 29880 8800
*RNAO 40×50×34 151 40 50 34 45 25186 57200 11000
RNAO 40×55×20 144 40 55 20 47 26300 46100 10000
*RNAO 40×55×40 268 40 55 40 48 54700 87000 10000
42 RNAO 42×57×20 132 42 57 20 50 26720 43700 10000
45 RNAO 45×55×17 82.5 45 55 17 50 18000 36000 9000
*RNAO 45×62×40 368 45 62 40 53 42200 85050 9000
50 RNAO 50×62×20 140 50 62 20 55 20690 46860 7500
RNAO 50×65×20 162 50 65 20 58 23200 40540 7000
*RNAO 50×65×40 321 50 65 40 58 39040 80600 7000
55 RNAO 55×68×20 157 55 68 20 60 22480 52074 6500
60 RNAO 60×78×20 253 60 78 20 68 28500 65300 5550
RNAO 60×78×40 368 60 78 40 68 45000 99000 5550
65 RNAO 65×85×30 394 65 85 30 73 37000 90900 4900
70 RNAO 70×90×30 488 70 90 30 78 40010 105000 5100
80 RNAO 80×100×30 527 80 100 30 88 52000 139000 4890
85 RNAO 85×105×25 449 85 105 25 93 48600 106000 4900
90 RNAO 90×105×26 323 90 105 26 98 42519 129000 4900
RNAO 90×110×30, , 600 90 110 30 98 58100 152000 4900
100 RNAO 100×120×30 671 100 120 30 108 50000 158000

Pictures

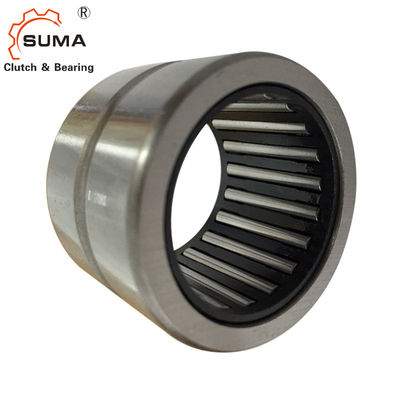

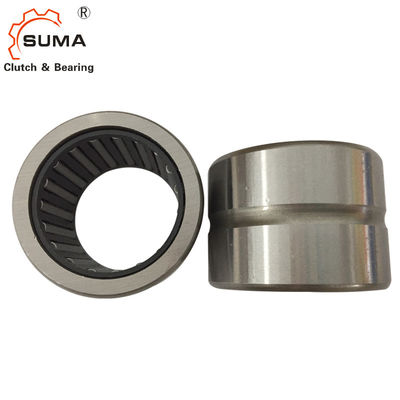

RNAO5 GCr15 Yoke Type 8MM Needle Roller Bearing 2

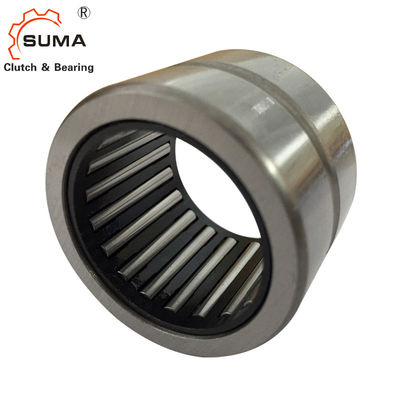

RNAO5 GCr15 Yoke Type 8MM Needle Roller Bearing 3
