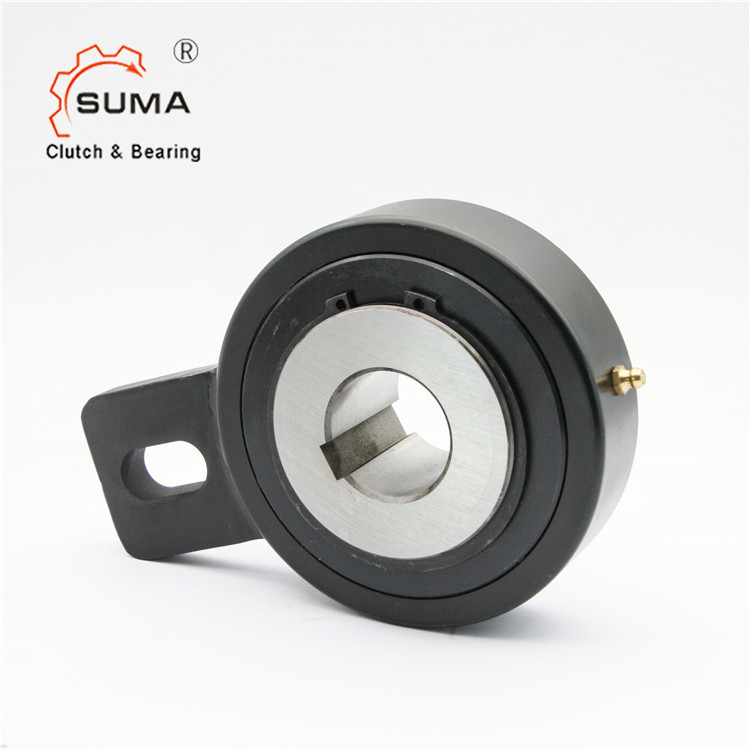

AV90 AV100 AV110 One Way Roller Backstop Clutch
  • AV90 AV100 AV110 One Way Roller Backstop Clutch
AV90 AV100 AV110 One Way Roller Backstop Clutch

AV90 AV100 AV110 One Way Roller Backstop Clutch

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number AV90
Product Details
Product Name:
Backstop Clutch AV90
Material:
GCr15 Bearing Steel
Torque Capacity:
2900Nm
Rotation Speed:
200RPM
Unit Weight:
8.7Kg
Warranty:
1 Year
Size:
80*190*64mm
OEM:
Accept
Highlight:

One Way Roller Backstop Clutch

,

AV110 One Way Roller Backstop Clutch

,

AV90 Backstop Bearing

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD300-USD340 PER PIECE
Packaging Details
Carton Box
Delivery Time
7-10 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability
1000PCS Per Month
Product Description

              AV90 AV100 AV110 One Way Roller Backstop Clutch


Technical Datas

PECI

SPECIFICATION
Model AV90
Bore diameter 90mm
Outer diameter 260mm
Thickness 90mm
Torque capacity 7125Nm
Overrunning speed 200r/min
Weight 24.5kg
Package Industrial package
Delivery time 7-10 days
Payment terms TT, L/C, D/P, D/A, Western Union, Paypal



  Type AV is a roller type freewheel. It is self-contained, centered by plain bearings for low rotational speeds , and sealed using shield protected metallic labyrinth seals.



Unit is delivered grease lubricated, ready to install in a horizontal or vertical position. Primarily used as a backstop, the torque capacity is high for a minimum space requirement. This design is suitable for use in difficult environments. A bolt, secured to a fixed part of the machine and passing through the slot in the torque arm, provides the rotational stop.

Radial clearance on this bolt should be equal to 1-3 % of the slot width.

The torque arm and the bearings must not be prestressed. The roller design makes the AV type ideal for light indexing applications.


Dimensions and Capacities

AV90 AV100 AV110 One Way Roller Backstop Clutch 0

Type Size TKN1) Overrunning speed   Weight Drag torque
AV dH7 nimax D D2 L 1 L B F bB11 N E f TR
[mm] [Nm] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg] [Ncm]
20 265 450 83 42 35 12 40 90 15 35 5 0.8 1.3 18
25 265 450 83 42 35 12 40 90 15 35 5 0.8 1.3 18
30 1200 320 118 60 54 15 40 110 15 35 8 1 3.5 130
35 1200 320 118 60 54 15 40 110 15 35 8 1 3.4 130
40 1200 320 118 60 54 15 40 110 15 35 8 1 3.3 130
45 2150 280 155 90 54 20 80 140 18 47 10 1 5.5 240
50 2150 280 155 90 54 20 80 140 18 47 10 1 5.4 240
55 2150 280 155 90 54 20 80 140 18 47 10 1 5.3 240
60 2150 280 155 90 54 20 80 140 18 47 10 1 5.2 240
70 2150 280 155 90 54 20 80 140 18 47 10 1 5 240
80 2900 200 190 110 64 20 80 155 20 40 10 1.5 8.7 360
90* 7125 150 260 160 90 25 120 220 – – – 3 24.5 360
100* 7125 150 260 160 90 25 120 220 – – – 3 23.5 360
110* 7125 150 260 160 90 25 120 220 – – – 3 22.5 360
120* 11000 130 300 180 110 30 140 260 – – – 3 42 600



Mounting Example

AV90 AV100 AV110 One Way Roller Backstop Clutch 1
Pictures
 AV90 AV100 AV110 One Way Roller Backstop Clutch 2

AV90 AV100 AV110 One Way Roller Backstop Clutch 3

AV90 AV100 AV110 One Way Roller Backstop Clutch 4
