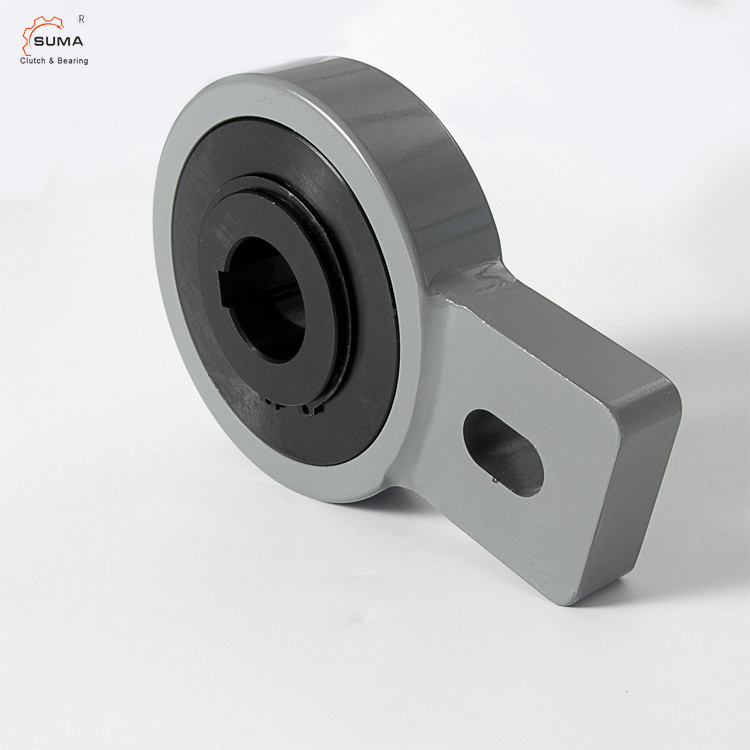

AV60 AV70 One Way Roller Type Freewheel Backstop Clutch

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: AV60 AV70
Minimum Order Quantity: 1
Price: USD120-USD150 PER PIECE
Packaging Details: Carton Box
Delivery Time: 7-10 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 1000PCS Per Month
Product Name: Roller Type Freewheel Material: GCr15 Bearing Steel
Torque Capacity: 2150Nm Rotation Speed: 280RPM
Unit Weight: 5.2Kg Warranty: 1 Year
Size: 60*155*54mm OEM: Accept
High Light:

One Way Roller Freewheel Backstop Clutch

,

AV70 Freewheel Backstop Clutch

,

AV60 Roller Type Backstop Bearing

               AV60 AV70 One Way Roller Type Freewheel Backstop Clutch


Features of Roller Type Freewheel Backstop Clutch



  Type AV is a roller type freewheel. It is self-contained, centered by plain bearings for low rotational speeds , and sealed using shield protected metallic labyrinth seals.

In order to prevent the reverse or smooth phenomenon when the inclined belt conveyor is parked under load, after the calculation of the braking torque, a freewheel backstop or holdback device is added depending on the specific situation. Roller backstop, suitable for the head drum, is driven by a reducer, the power is large, the diameter of the drum is large, and the belt conveyor with the reducer above ZQ65 is more suitable for upward conveying, and the inclination angle is less than or equal to 18 degrees. Conveyor, which has the advantages of rapid backstop and small reversing distance, is the preferred backstop for large and medium-sized inclination conveyors. Widely used in reducer matching, coking plant and transportation machinery, conveyors, hoists, electric drums and other mechanical equipment that require backstop requirements.

Unit is delivered grease lubricated, ready to install in a horizontal or vertical position. Primarily used as a backstop, the torque capacity is high for a minimum space requirement. This design is suitable for use in difficult environments. A bolt, secured to a fixed part of the machine and passing

through the slot in the torque arm, provides the rotational stop. Radial clearance on this bolt

should be equal to 1-3 % of the slot width.

The torque arm and the bearings must not be prestressed. The roller design makes the AV type ideal for light indexing applications.
Dimensions of
Roller Type Freewheel Backstop Clutch

Type Size TKN1) Overrunning speed   Weight Drag torque
AV dH7 nimax D D2 L 1 L B F bB11 N E f TR
[mm] [Nm] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg] [Ncm]
20 265 450 83 42 35 12 40 90 15 35 5 0.8 1.3 18
25 265 450 83 42 35 12 40 90 15 35 5 0.8 1.3 18
30 1200 320 118 60 54 15 40 110 15 35 8 1 3.5 130
35 1200 320 118 60 54 15 40 110 15 35 8 1 3.4 130
40 1200 320 118 60 54 15 40 110 15 35 8 1 3.3 130
45 2150 280 155 90 54 20 80 140 18 47 10 1 5.5 240
50 2150 280 155 90 54 20 80 140 18 47 10 1 5.4 240
55 2150 280 155 90 54 20 80 140 18 47 10 1 5.3 240
60 2150 280 155 90 54 20 80 140 18 47 10 1 5.2 240
70 2150 280 155 90 54 20 80 140 18 47 10 1 5 240
80 2900 200 190 110 64 20 80 155 20 40 10 1.5 8.7 360
90* 7125 150 260 160 90 25 120 220 3 24.5 360
100* 7125 150 260 160 90 25 120 220 3 23.5 360
110* 7125 150 260 160 90 25 120 220 3 22.5 360
120* 11000 130 300 180 110 30 140 260 3 42 600


Mounting Example

Pictures
 AV60 AV70 One Way Roller Type Freewheel Backstop Clutch 2

AV60 AV70 One Way Roller Type Freewheel Backstop Clutch 3AV60 AV70 One Way Roller Type Freewheel Backstop Clutch 4AV60 AV70 One Way Roller Type Freewheel Backstop Clutch 5
