AV20 AV25 Holdback Backstop Clutch Bearing One Way for Conveyor System
  • AV20 AV25 Holdback Backstop Clutch Bearing One Way for Conveyor System

AV20 AV25 Holdback Backstop Clutch Bearing One Way for Conveyor System

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number AV20 AV25
Product Details
Product Name:
Holdback Backstop Clutch
Material:
GCr15 Bearing Steel
Torque Capacity:
265Nm
Rotation Speed:
450RPM
Unit Weight:
1.3Kg
Warranty:
1 Year
OEM:
Accept
High Light:

Holdback Backstop Clutch Bearing

,

AV25 Backstop Clutch Bearing

,

Conveyor System AV20 Backstop Bearing

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD68-USD80 PER PIECE
Packaging Details
Carton Box
Delivery Time
7-10 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability
1000PCS Per Month
Product Description

      AV20 AV25 Holdback Backstop Clutch Bearing One Way for Conveyor System



Features of holdback backstop clutch



Type AV20 Backstop Clutch is a roller type freewheel. It is self-contained, centered by plain bearings for low rotational speeds , and sealed using shield protected metallic labyrinth seals.Goods widely used on Elevator, Conveyor, Grain Hoist, etc



Unit is delivered grease lubricated, ready to install in a horizontal or vertical position.

Primarily used as a backstop, the torque capacity is high for a minimum space requirement.



The torque arm and the bearings must not be prestressed. The roller design makes the AV type ideal for light indexing applications.

P

Dimensions and Capacities of holdback backstop clutch


Type Size TKN1) Overrunning speed   Weight Drag torque
AV dH7 nimax D D2 L 1 L B F bB11 N E f TR
[mm] [Nm] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg] [Ncm]
20 265 450 83 42 35 12 40 90 15 35 5 0.8 1.3 18
25 265 450 83 42 35 12 40 90 15 35 5 0.8 1.3 18
30 1200 320 118 60 54 15 40 110 15 35 8 1 3.5 130
35 1200 320 118 60 54 15 40 110 15 35 8 1 3.4 130
40 1200 320 118 60 54 15 40 110 15 35 8 1 3.3 130
45 2150 280 155 90 54 20 80 140 18 47 10 1 5.5 240
50 2150 280 155 90 54 20 80 140 18 47 10 1 5.4 240
55 2150 280 155 90 54 20 80 140 18 47 10 1 5.3 240
60 2150 280 155 90 54 20 80 140 18 47 10 1 5.2 240
70 2150 280 155 90 54 20 80 140 18 47 10 1 5 240
80 2900 200 190 110 64 20 80 155 20 40 10 1.5 8.7 360
90* 7125 150 260 160 90 25 120 220 3 24.5 360
100* 7125 150 260 160 90 25 120 220 3 23.5 360
110* 7125 150 260 160 90 25 120 220 3 22.5 360
120* 11000 130 300 180 110 30 140 260 3 42 600



Mounting Example

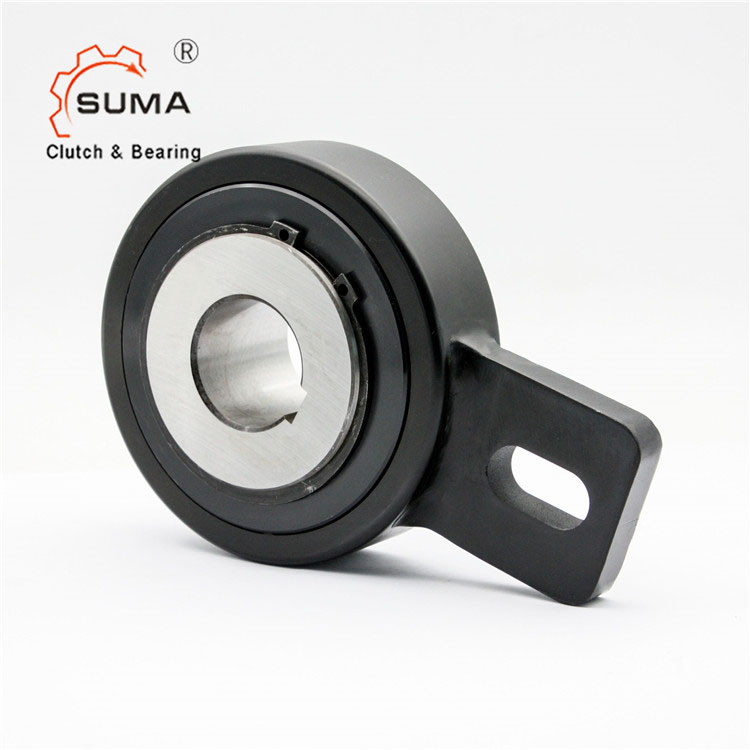

Pictures of holdback backstop clutch
 AV20 AV25 Holdback Backstop Clutch Bearing One Way for Conveyor System 2

AV20 AV25 Holdback Backstop Clutch Bearing One Way for Conveyor System 3

AV20 AV25 Holdback Backstop Clutch Bearing One Way for Conveyor System 4
