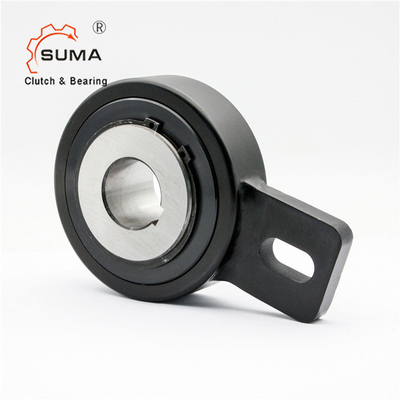

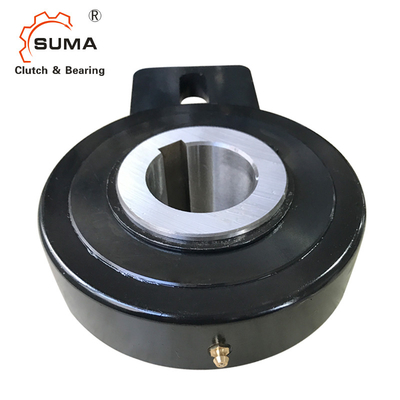

GVG80 GVG90 Holdback Bucket Elevator Backstop Clutch
Features of Bucket Elevator Backstop Clutch
GVG series freewheels are with sprags cages, centering between the inner race and outer race is carried out by means of bushes.
the torque forces are transmitted from the shaft to the inner race by means of a key.
Shaft tolerance must be h6 .
When the freewheel is used as a non return device, the lever fixed to the outer race must be sandwiched between two brackets; otherwise a pin must be inserted
in the looped hole. When locked to the frame of a machine, it stops the freewheel rotating
the bushes, the lever must be given a certain amount of clearance to allow for the axial movement.
the freewheel is supplied already greased .
Dimensions and Capacities of Bucket Elevator Backstop Clutch
| Model |
dH7 mm |
D mm |
L mm |
B1 mm |
L1 mm |
b2 mm |
I2 mm |
I3 mm |
I4 mm |
Weight kg |
Max Speed |
Torque Nm |
| GVG20 | 20 | 106 | 48 | 40 | 15 | 18 | 35 | 10.5 | 113 | 2.5 | 400 | 606 |
| GVG25 | 25 | 106 | 48 | 40 | 15 | 18 | 35 | 10.5 | 113 | 2.4 | 400 | 606 |
| GVG30 | 30 | 106 | 48 | 40 | 15 | 18 | 35 | 10.5 | 113 | 2.3 | 400 | 606 |
| GVG35 | 35 | 106 | 48 | 40 | 15 | 18 | 35 | 10.5 | 125 | 2.2 | 400 | 606 |
| GVG40 | 40 | 132 | 52 | 60 | 15 | 18 | 35 | 10 | 125 | 4 | 300 | 1295 |
| GVG45 | 45 | 132 | 52 | 60 | 15 | 18 | 35 | 10 | 125 | 3.8 | 300 | 1295 |
| GVG50 | 50 | 132 | 52 | 60 | 15 | 18 | 35 | 10 | 125 | 3.7 | 300 | 1295 |
| GVG55 | 55 | 132 | 52 | 60 | 15 | 18 | 35 | 10 | 125 | 3.5 | 300 | 1295 |
| GVG60 | 60 | 161 | 54 | 70 | 15 | 18 | 35 | 10 | 140 | 6.1 | 250 | 2550 |
| GVG70 | 70 | 161 | 54 | 70 | 15 | 18 | 35 | 10 | 140 | 5.7 | 250 | 2550 |
| GVG80 | 80 | 190 | 70 | 70 | 20 | 25 | 45 | 15 | 165 | 10.2 | 200 | 4875 |
| GVG90 | 90 | 190 | 70 | 70 | 20 | 25 | 45 | 15 | 165 | 9.6 | 200 | 4875 |
Kyey DIN 6885
2)Maximum allowed speed
