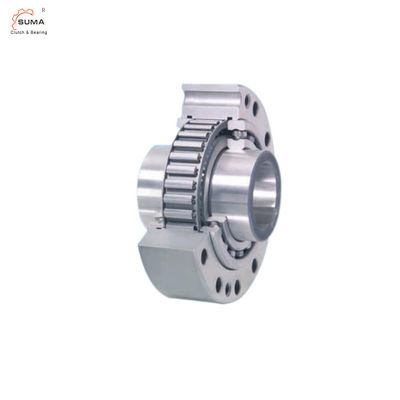

FBO Series FBO72 One Way Roller Type Freewheel Backstop Clutch

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: FBO72
Minimum Order Quantity: 1 PC
Price: USD200-USD240 PER PIECE
Packaging Details: Carton Box / Wooden Box
Delivery Time: 7-15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability: 2000 PCS PER MONTH
Product Name: Freewheel Backstop Clutch Function: Overrunning / Backstopping
Material: Bearing Steel GCr15 Bore Range: 35-42mm
Torque: 1250Nm Rotation Speed: 1120RPM
Outer Dia.: 132mm OEM: Accept
Warranty: 1 Year
High Light:

Roller Type Freewheel Backstop Clutch

,

FBO72 Freewheel Backstop Clutch

,

Steel GCr15 Backstop Bearing

FBO Series FBO72 One Way Roller Type Freewheel Backstop Clutch



Feature of FBO Freewheel Backstop Clutch

for assembly with connecting parts

with sprags, available in five types

Features

Basic Freewheels FBO are sprag freewheels with ball bearings to be assembled with customer connecting parts. The freewheels are particularly suitable for installation in housings with oil lubrication and seals. The freewheels FBO are used as:

Backstops

Overrrunning Clutches

Indexing Freewheels

In addition to the standard type, four other types are available for extended service life and

indexing accuracy. Nominal torques up to 160 000 Nm. Bores up to 300 mm. Many standard bores are available.

indexing accuracy. Nominal torques up to 25 000 Nm. Bores up to 155 mm. Many standard bores are available.

Dimension and Capacity of FBO Freewheel Backstop Clutch

FBO Series FBO72 One Way Roller Type Freewheel Backstop Clutch 0


Freewheel Size Type

Torque

MN

Nm

Max. speed

Inner ring

overruns min-1

Outer ring /

overruns min-1

Type

Torque

MN

Nm

Max. speed

Inner ring /

overruns min-1

Outer ring

overruns min-1

Type

Torque

MN

Nm

Sprag lift-off at inner

ring speed min-1

Max. speed

Inner ring /

overruns min-1

Outer ring drives min-1 Type

Torque

MN

Nm

Sprag lift-off at outer ring speed min-1

Max. speed

Outer ring

overruns min-1

Inner ring drives min-1 Type

Torque

MN

Nm

FBO37 SF 200 2 500 2 600 SFT 200 2 500 2 600           CZ 110 850 3 000 340 SFP 120
FBO44 SF 320 1 900 2 200 SFT 320 1 900 2 200 DX 130 860 1 900 344 CZ 180 800 2 600 320 SFP 180
FBO57 SF 630 1 400 1 750 SFT 630 1 400 1 750 DX 460 750 1 400 300 LZ 430 1 400 2 100 560 SFP 310
FBO72 SF 1 250 1 120 1 600 SFT 1 250 1 120 1 600 DX 720 700 1 150 280 LZ 760 1 220 1 800 488 SFP 630
FBO82 SF 1 800 1 025 1 450 SFT 1 800 1 025 1 450 DX 1 000 670 1 050 268 SFZ 1 700 1 450 1 600 580 SFP 750
FBO 107 SF 2 500 880 1 250 SFT 2 500 880 1 250 DX 1 500 610 900 244 SFZ 2 500 1 300 1 350 520 SFP 1 250
FBO 127 SF 5 000 800 1 150 SFT 5 000 800 1 150 SX 3 400 380 800 152 SFZ 5 000 1 200 1 200 480 SFP 3 100
FBO 140 SF 10 000 750 1 100 SFT 10 000 750 1 100 SX 7 500 320 750 128 SFZ 10 000 950 1 150 380 SFP 6 300
FBO 200 SF 20 000 630 900 SFT 20 000 630 900 SX 23 000 240 630 96 SFZ 20 000 680 900 272 SFP 12 500
FBO 270 SF 40 000 510 750 SFT 40 000 510 750 SX 40 000 210 510 84 SFZ 37 500 600 750 240 SFP 25 000
FBO 340 SF 80 000 460 630 SFT 80 000 460 630
FBO 440 SF 160000 400 550 SFT 160000 400 550

Freewheel Size mm mm

Bore d

Standard

mm mm

mm max. mm

B

mm

C1***

mm

C2***

mm

C3***

mm

D mm

E

mm

F

mm

G**

L

mm

T

mm

Z** Weight kg
FBO 37 14 16 18 20 22* 22* 25 3,7   4,3 85 30 55 M 6 48 70 6 0,9
FBO 44 20 22 25*     25* 25 3,7 4,7 4,4 95 35 62 M 6 50 80 8 1,3
FBO 57 25 28 30 32*   32* 30 4,2 7,7 7,4 110 45 75 M 8 65 95 8 1,9
FBO 72 35 38 40 42*   42* 38 3,7 4,9 4,4 132 55 90 M 8 74 115 12 3,5
FBO 82 35 40 45 50*   50* 40 6,6 6,6 6,6 145 65 100 M 10 75 125 12 4,0
FBO 107 50 55 60 65*   65* 45 8,1 8,1 8,1 170 80 125 M 10 90 150 12 7,7
FBO 127 50 60 70 75*   75* 68 6,9 7,9 6,9 200 95 145 M 12 112 180 12 13,3
FBO 140 65 75 80 90   95* 68 19,1 20,1 19,1 250 120 180 M 16 150 225 12 31,5
FBO 200 110 120       120 85 14,1 15,1 14,1 320 160 240 M 16 160 288 16 46,5
FBO 270 140         150 100 22,5 22,5 22,5 420 200 310 M 20 212 370 18 105,0
FBO 340 180         240 125 25,6     497 300 380 M 20 265 450 24 190,0
FBO 440 220         300 150 34,1     627 380 480 M 30 315 560 24 360,0


Application example

Basic Freewheel FBO 127 SF as an overrunning clutch between the creep drive and the main drive of a cement mixer. In the case of creep operation, the outer ring is driven by the shaft coupling. The freewheel works in driving oper - ation and drives the unit at a low speed via the main gearbox. In normal operation (freewheel - ing operation), the inner ring overruns and the

creep drive is automatically disengaged. The freewheel is connected to the oil lubrication of the main gearbox and does not require any special maintenance. The arrangement of the seals between the freewheel and the main gear box is advantageous. In normal operation(freewheeling operation), this is at a standstill and hence generates no additional frictionrelated temperature rise.



Mounting

The customer connecting parts are centered on the ball bearing external diameter F and assembled via the outer ring. The tolerance of the shaft must be ISO h6 or j6 and the tolerance of the pilot diameter F of the connecting part must be ISO H7 or J7. The centering depth C must be observed.

Lubrication

An oil lubrication of the specified quality must be provided.



Example for ordering

Freewheel size FBO 72, type with P-grinding

and 38 mm bore:

FBO 72 SFP, d = 38 mm
