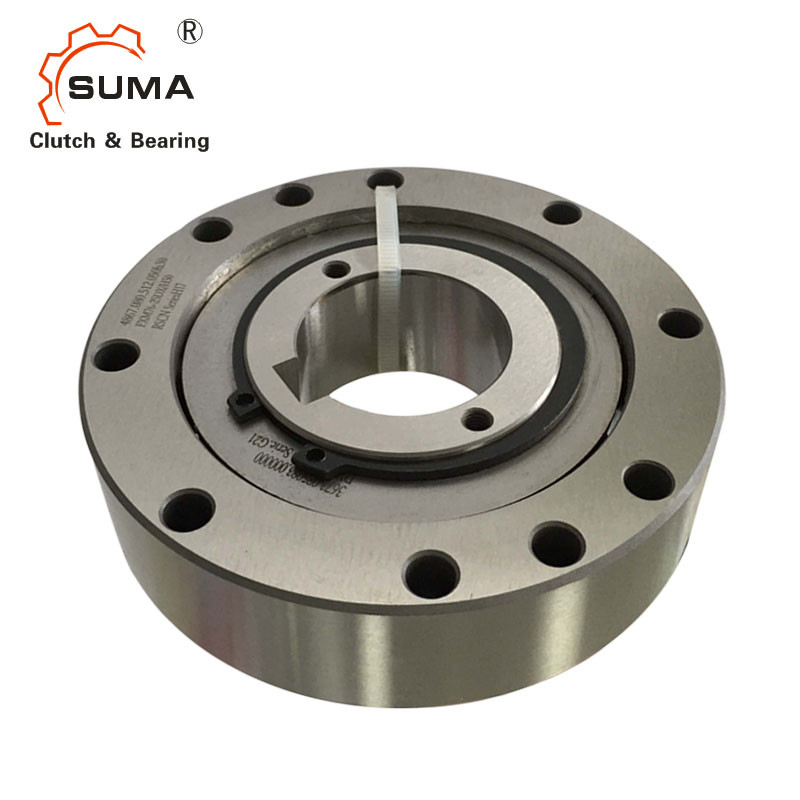

FON Series Sprag Type Freewheel Backstop Bearing One Way FON72SF FON127SF
  • FON Series Sprag Type Freewheel Backstop Bearing One Way FON72SF FON127SF

FON Series Sprag Type Freewheel Backstop Bearing One Way FON72SF FON127SF

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number FON127SF
Product Details
Product Name:
Freewheel Backstop Bearing
Function:
Overrunning / Backstopping
Material:
Bearing Steel GCr15
Bore Range:
90-100mm
Torque:
6300Nm
Rotation Speed:
800RPM
Outer Dia.:
200mm
OEM:
Accept
Warranty:
1 Year
High Light:

Sprag Type Freewheel Backstop Bearing

,

One Way Freewheel Backstop Bearing

,

FON72SF Backstop Bearing

Payment & Shipping Terms
Minimum Order Quantity
1 PC
Price
USD240-USD280 PER PIECE
Packaging Details
Carton Box / Wooden Box
Delivery Time
7-15 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability
2000 PCS PER MONTH
Product Description

FON Series Sprag Type Freewheel Backstop Bearing One Way FON72SF FON127SF



Feature of FON Freewheel Backstop Bearing

Integrated Freewheels FON are sprag freewheels without bearing support. The freewheels FON are used as:

Backstops

Overrunning Clutches

Indexing Freewheels

In addition to the standard type, two other types are available for extended service life and

indexing accuracy. Nominal torques up to 25 000 Nm. Bores up to 155 mm. Many standard bores are available.

Dimension and Capacity of FON Freewheel Backstop Bearing

FON Series Sprag Type Freewheel Backstop Bearing One Way FON72SF FON127SF 0

Freewheel Size Type

Nominal

torque

MN

Nm

Max. speed

Inner ring

overruns min-1

Outer ring

overruns min-1

Type

Nominal t orque

MN

Nm

Max. speed

Inner ring

overruns min-1

Outer ring

overruns min-1

Type

NomInal

t orque

MN

Nm

Sprag lift-off at outer ring speed min-1

Max. speed

Outer ring

overruns min-1

Inner ring drives min-1
FON37 SF 220 2 500 2 600 SFT 220 2 500 2 600 SFZ 180 2 900 3 700 340
FON44 SF 315 1 900 2 200 SFT 315 1 900 2 200 SFZ 250 2 250 3 000 320
FON57 SF 630 1 400 1 750 SFT 630 1 400 1 750 SFZ 630 2 000 2 200 560
FON72 SF 1 250 1 120 1 600 SFT 1 250 1 120 1 600 SFZ 1 250 1 550 1 850 488
FON82 SF 1 900 1 025 1 450 SFT 1 900 1 025 1 450 SFZ 1 700 1 450 1 600 580
FON107 SF 2 800 880 1 250 SFT 2 800 880 1 250 SFZ 2 500 1 300 1 350 520
FON 127 SF 6 300 800 1 150 SFT 6 300 800 1 150 SFZ 5 000 1 200 1 200 480
FON 140 SF 10 000 750 1 100 SFT 10 000 750 1 100 SFZ 10 000 950 1 150 380
FON 170 SF 16 000 700 1 000 SFT 16 000 700 1 000 SFZ 14 000 880 1 000 352
FON 200 SF 25 000 630 900 SFT 25 000 630 900 SFZ 20 000 680 900 272

Freewheel Size   Bore d Max A B D F G** J L P T Z** Weight
Standard
mm mm mm mm mm mm mm mm   mm mm mm mm kg
FON 37 20     25* 18,5 25 85 55 M 6 37 35 0,5 70 6 0,8
FON 44 25     32* 18,5 25 95 62 M 6 44 35 0,5 80 8 1,0
FON 57 30 35 40 42* 23,5 30 110 75 M 8 57 45 0,5 95 8 1,7
FON 72 45     55* 29,5 38 132 90 M 8 72 60 1,0 115 12 3,0
FON 82 50 55   65* 31,0 40 145 100 M 10 82 60 1,0 125 12 4,0
FON 107 70     85* 33,0 45 170 125 M 10 107 65 1,0 150 12 6,0
FON 127 90     100* 58,0 68 200 145 M 12 127 75 1,0 180 12 11,5
FON 140 100     115* 58,0 68 250 180 M 16 140 75 1,0 225 12 17,0
FON 170 120     140* 60,0 70 290 210 M 16 170 75 1,0 258 16 24,0
FON 200 140     155 73,0 85 320 240 M 16 200 85 1,5 288 16 34,0


Mounting

Integrated Freewheels FON are without bearing support. Concentric alignment of inner and

outer ring must be provided by the customer. The permissible run out (T.I.R.) must be

observed. The Integrated Freewheel FON is centered via the outer track F on the customer attachment part and bolted to this. The tolerance of the pilot diameter of the attachment part must be ISO h6. The tolerance of the shaft must be ISO h6 or j6.



Lubrication

In the case of the type with sprag lift-off Z, at speeds in excess of the sprag lift-off speed, no

special lubrication is required; the freewheel functions maintenance-free. When operating

below the sprag lift-off speed, an oil lubrication of the specified oil quality must be provided.
