GV45 GV50 Backstop Clutch Roller Type One Way Bearings

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: GV45 GV50
Minimum Order Quantity: 1
Price: USD120-USD150 PER PIECE
Packaging Details: Carton Box
Delivery Time: 7-10 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 1000PCS Per Month
Product Name: Backstop Clutch GV45 GV50 Material: GCr15 Bearing Steel
Torque Capacity: 2180Nm Rotation Speed: 300RPM
Unit Weight: 5.8Kg Warranty: 1 Year
Size: 45*155*54 Mm / 50*155*54mm OEM: Accept
High Light:

GV50 Roller Type One Way Bearings

,

Backstop Clutch One Way Bearings

,

GV45 One Way Clutch Bearing





      GV45 GV50 Backstop Clutch Roller Type One Way Bearings


Features

GV series freewheels are with rollers, centering between the inner race and outer race is carried out by means of bushes.

the torque forces are transmitted from the shaft to the inner race by means of a key.



shaft tolerance must be h6.



When the freewheel is used as a non return device, the lever fixed to the outer race must be sandwiched between two brackets; otherwise a pin must be inserted



in the looped hole. When locked to the frame of a machine, it stops the freewheel rotating.



If the freewheel is used as an intermittent feed, the lever must be attached lengthways using the hole for a pushrod or similar. In any case, to avoid overloading



the bushes, the lever must be given a certain amount of clearance to allow for the axial movement.



the freewheel is supplied already greased


Dimensions and Capacities

GV45 GV50 Backstop Clutch Roller Type One Way Bearings 0

Model

dH7

mm

D

mm

L

mm

B1

mm

L1

mm

b2

mm

I2

mm

I3

mm

I4

mm

Weight

Kg

Max Speed

Torque

Nm

Drag Torque Nm
GV20 20 83 35 40 12 15 35 5 90 1.3 450 275 0.2
GV25 25 83 35 40 12 15 35 5 90 1.3 450 275 0.2
GV30 30 118 54 40 15 15 35 8 110 3.5 320 1250 1.2
GV35 35 118 54 40 15 15 35 8 110 3.4 320 1250 1.2
GV40 40 118 54 40 15 15 35 8 140 3.3 320 2180 1.2
GV45 45 155 54 80 15 18 35 10 140 5.8 300 2180 2.2
GV50 50 155 54 80 15 18 35 10 140 5.7 300 2180 2.2
GV55 55 155 54 80 15 18 35 10 140 5.6 300 2180 2.2
GV60 60 155 54 80 15 18 35 10 140 5.5 300 2180 2.2
GV70 70 155 54 80 15 18 35 10 140 5.3 300 2180 2.2
GV80 80 190 64 80 20 20 40 10 155 8.7 200 2930 3.5
GV90* 90 260 90 120 25 30 50 20 220 24.5 150 7250 3.5
GV100* 100 260 90 120 25 30 50 20 220 23.5 150 7250 3.5
GV110* 110 260 90 120 25 30 50 20 220 22.5 150 7250 3.5
GV120* 120 300 110 120 30 30 50 20 240 42 130 11100 6.0


1)Tmax: 2x Tn

Kyey DIN 6885

2)Maximum allowed speed


Pictures

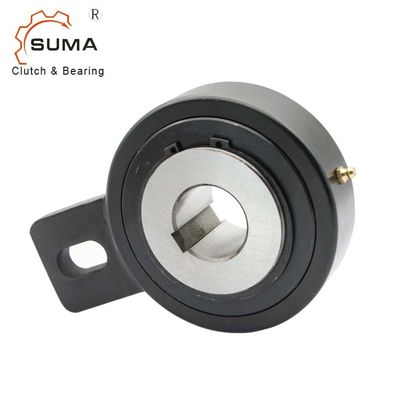

 GV45 GV50 Backstop Clutch Roller Type One Way Bearings 1

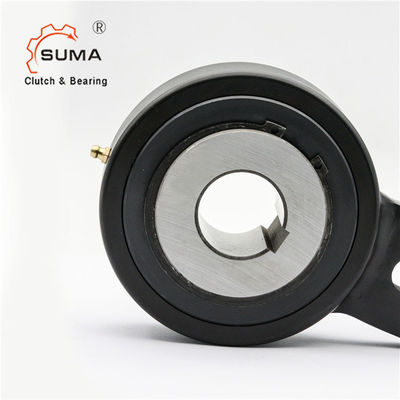

GV45 GV50 Backstop Clutch Roller Type One Way Bearings 2

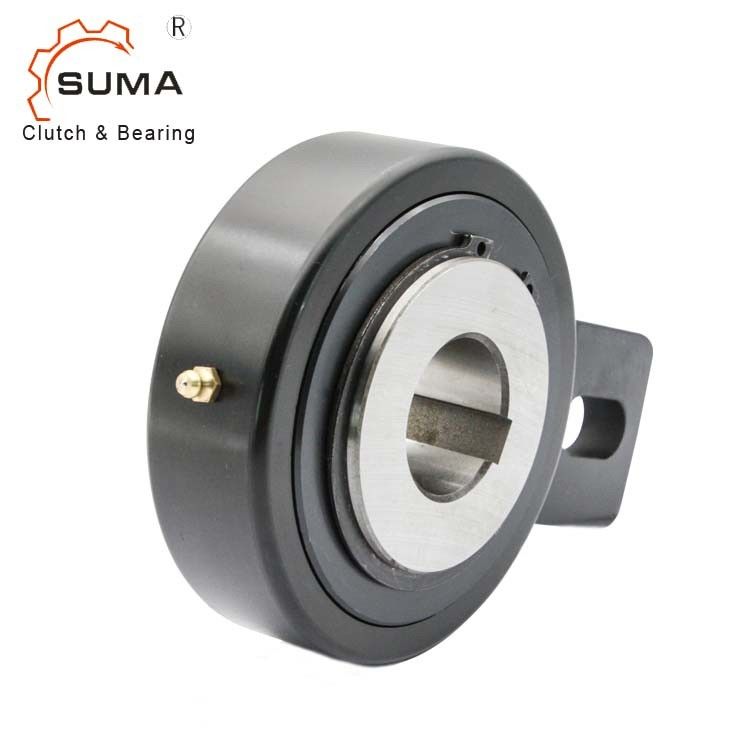

GV45 GV50 Backstop Clutch Roller Type One Way Bearings 3GV45 GV50 Backstop Clutch Roller Type One Way Bearings 4
