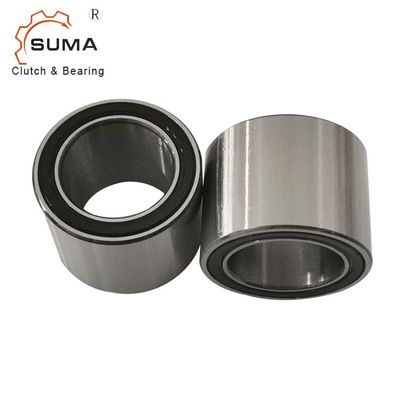

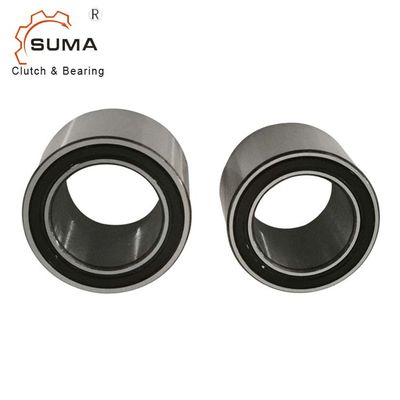

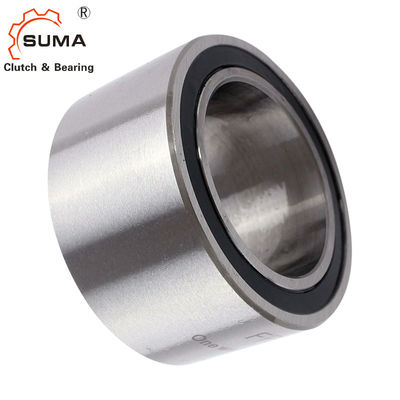

FPD453Z FPD463Z FPD473Z One Way Freewheel Overrunning Clutch Bearing
Features
Bearing: The freewheel clutch includes ball and roller bearings.Additional external bearing support is not necessary.
Clamping direction: The arrow on the inner ring designates the inner ring's clamping direction.
Operating temperature: max. 100° C
Lubrication: Operative lifetime oil lubrication
Installation tolerances : Shaft h5; hub H6
Mating parts
Hardening and grinding of the mating parts is not necessary. Thoroughly clean (grease free) the mating parts in the vicinity of the freewheel clutch as well as the freewheel clutch's rings before making the press fit.
Components
Freewheel clutch Insert Element FE 400 Z ·
Rings Bearing steel, hardened and ground Inner ring Press fit Outer ring Press fit ·
Ball bearings integrated ·
Roller bearing RL 400 ·
Lubrication Lifetime oil lubrication ·
Technical Datas
Dimensions and Capacities
| Model | d | D | W | Tnom | nmax | Cdyn. | Cstat. | Weight | Item no. |
| [mm] | [mm] | [mm] | [Nm] | [rpm] | [N] | [N] | [kg] | ||
| FPD 427 M | 15 | 31 | 34 | 94 | 2,000 | 7,679 | 6,397 | 0.09 | 306516 |
| FPD 427 Z | 15 | 31 | 34 | 84 | 2,000 | 7,679 | 6,397 | 0.09 | 306517 |
| FPD 432 M | 20 | 36 | 34 | 133 | 1,800 | 8,104 | 7,241 | 0.12 | 306518 |
| FPD 432 Z | 20 | 36 | 34 | 121 | 1,800 | 8,104 | 7,241 | 0.12 | 306519 |
| FPD 437 M | 25 | 41 | 34 | 176 | 1,700 | 9,201 | 8,142 | 0.15 | 306520 |
| FPD 437 Z | 25 | 41 | 34 | 160 | 1,700 | 9,201 | 8,142 | 0.15 | 306521 |
| FPD 442 M | 30 | 46 | 34 | 223 | 1,500 | 10,247 | 10,708 | 0.18 | 300696 |
| FPD 442 Z | 30 | 46 | 34 | 208 | 1,500 | 10,247 | 10,708 | 0.18 | 300697 |
| FPD 448 M | 35 | 53 | 34 | 286 | 1,300 | 11,642 | 13,440 | 0.23 | 306524 |
| FPD 448 Z | 35 | 53 | 34 | 262 | 1,300 | 11,642 | 13,440 | 0.23 | 306525 |
| FPD 453 M | 40 | 58 | 34 | 343 | 1,200 | 11,417 | 13,577 | 0.26 | 300702 |
| FPD 453 Z | 40 | 58 | 34 | 314 | 1,200 | 11,417 | 13,577 | 0.26 | 300700 |
| FPD 463 M | 50 | 68 | 34 | 461 | 1,100 | 13,070 | 17,063 | 0.34 | 306534 |
| FPD 463 Z | 50 | 68 | 34 | 428 | 1,100 | 13,070 | 17,063 | 0.34 | 306535 |
| FPD 473 M | 60 | 78 | 34 | 588 | 1000 | 14128 | 19896 | 0.41 | 306536 |
| FPD 473 Z | 60 | 78 | 34 | 543 | 1000 | 14128 | 19896 | 0.41 | 306537 |
