CSK30 CSK30P CSK30PP 30*62*16MM One Way Sprag Type Clutch Bearings

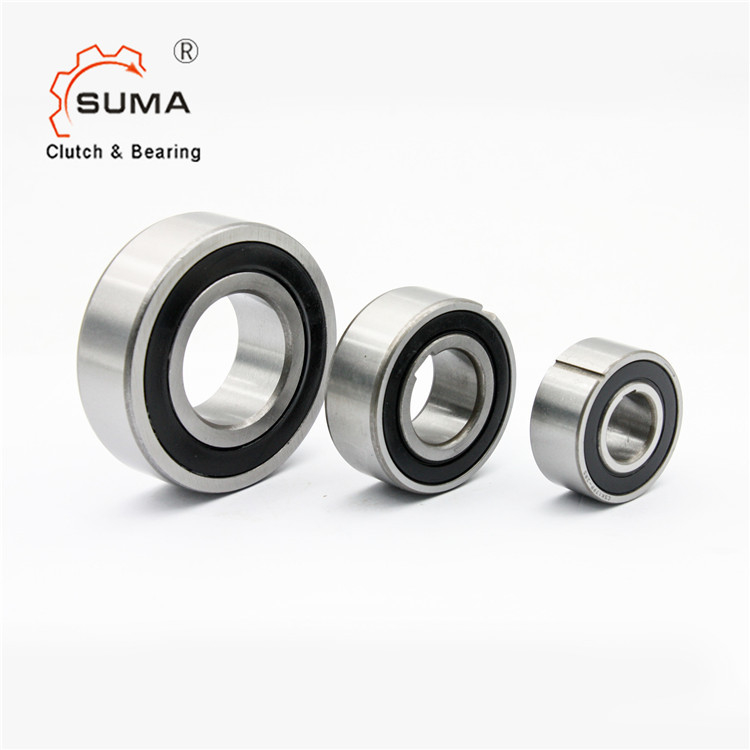

  • CSK30 CSK30P CSK30PP 30*62*16MM One Way Sprag Type Clutch Bearings

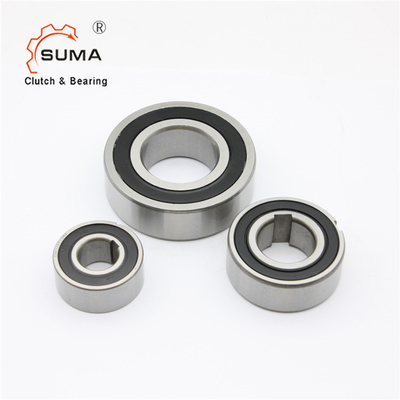

  • CSK30 CSK30P CSK30PP 30*62*16MM One Way Sprag Type Clutch Bearings

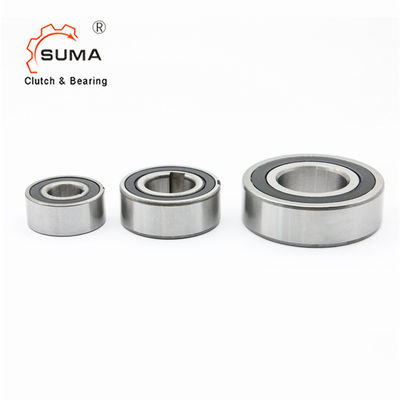

  • CSK30 CSK30P CSK30PP 30*62*16MM One Way Sprag Type Clutch Bearings

CSK30 CSK30P CSK30PP 30*62*16MM One Way Sprag Type Clutch Bearings

Place of Origin CHINA
Brand Name SUMA
Certification ISO
Model Number CSK30 CSK30P CSK30PP
Product Details
Material:
GCr15 Bearing Steel
Torque Capacity:
175Nm
Rotation Speed:
3600 RPM
Drag Torque:
5.8Ncm
Unit Weight:
0.21KG
Package:
White Box + Carton Box
OEM:
Accept
Delivery Time:
2-3 Days
MOQ:
5-
High Light:

Sprag Type Clutch Bearings

,

One Way Sprag Type Clutch Bearings

,

CSK30PP Sprag Clutch Bearings

Payment & Shipping Terms
Minimum Order Quantity
5pcs
Price
USD5-USD7PER PIECE
Packaging Details
White Box + Carton Box + Wooden Pallet
Delivery Time
3-5 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability
20000PCS PER WEEK
Product Description

       CSK30 CSK30P CSK30PP 30*62*16MM One Way Sprag Type Clutch Bearings

Fearures

 Types CSK and CSK...2RS are sprag type freewheels integrated into 62.. series ball bearings (except size 40).

They are bearing supported, delivered grease lubricated and protected against dust of more than 0,3 mm.



  • Item: CSK30 / CSK30P / CSK30PP Bearing
  • Inner Diameter: 30mm
  • Outer Diameter: 62mm
  • Width: 16mm
  • Torque: 110 N.m

The recommended mounting tolerances are h6 on the shaft and H6 in a rigid housing.

Please contact us when either the ambient or the operating temperature is not within the range +5°C to +60°C.

Dimensions and Capacities

CSK.P PP .jpg



Type Size Bearing series DIMENSION Bearing loads Weight Drag torque
dynamic static
CSK..P d   TKN1) nmax D L b t C C0 TR
[mm]   [Nm] [min-1] [mm] [mm] [mm] [mm] [kN] [kN] [kg] [Ncm]
12 6201 9.3 10000 32 10     6.1 2.77 0.04 0.7
15 6202 17 8400 35 11     7.4 3.42 0.06 0.9
17 6203 30 7350 40 12     7.9 3.8 0.07 1.1
20 6204 50 6000 47 14     9.4 4.46 0.11 1.3
25 6205 85 5200 52 15     10.7 5.46 0.14 2
30 6206 138 4200 62 16     11.7 6.45 0.21 4.4
35 6207 175 3600 72 17     12.6 7.28 0.3 5.8
40 325 3000 80 22     15.54 12.25 0.5 7
CSK..PP 15 6202 17 8400 35 11 2 0.6 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 2 1 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 3 1.5 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 6 2 10.7 5.46 0.14 2
30 6206 138 4200 62 16 6 2 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 8 2.5 12.6 7.28 0.3 5.8
40 325 3000 80 22 10 3 15.54 12.25 0.5 7
CSK..P-2RS 12 9.3 10000 32 14     6.1 2.77 0.05 3
15 17 8400 35 16     7.4 3.42 0.07 4
17 30 7350 40 17     7.9 3.8 0.09 5.6
20 50 6000 47 19     9.4 4.46 0.145 6
25 85 5200 52 20     10.7 5.46 0.175 6
30 138 4200 62 21     11.7 6.45 0.27 7.5
35 175 3600 72 22     12.6 7.28 0.4 8.2
40 325 3000 80 27     15.54 12.25 0.6 10
Mounting and Coupling


PRODUCT PICTURE
CSK30 CSK30P CSK30PP 30*62*16MM One Way Sprag Type Clutch Bearings 2
CSK30 CSK30P CSK30PP 30*62*16MM One Way Sprag Type Clutch Bearings 3
CSK30 CSK30P CSK30PP 30*62*16MM One Way Sprag Type Clutch Bearings 4
CSK30 CSK30P CSK30PP 30*62*16MM One Way Sprag Type Clutch Bearings 5CSK30 CSK30P CSK30PP 30*62*16MM One Way Sprag Type Clutch Bearings 6



Q: How do you pack the goods?

  • Small Quantity :

Each in White Box - in 19x18x9CM carton box - 29*28*19CM carton box

  • Big Quantity : 29*28*19cm carton box + Wooden box /Wooden pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  • Small items: In stock.
  • Medium Items: 10-15 Days
  • Big items: 20-25 Days
