DC5476A 16MM Overrunning One Way Sprag Clutch Bearing Corrosion Resistant
  • DC5476A 16MM 	Overrunning One Way Sprag Clutch Bearing Corrosion Resistant
  • DC5476A 16MM 	Overrunning One Way Sprag Clutch Bearing Corrosion Resistant

DC5476A 16MM Overrunning One Way Sprag Clutch Bearing Corrosion Resistant

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number DC5476A-N
Product Details
Product Name:
One Way Sprag Clutch Bearing DC5476A-N
Material:
GCr15 Bearing Steel
Torque Capacity:
525Nm
Rotation Speed:
3500RPM
Unit Weight:
0.11Kg
Warranty:
1 Year
Size:
54.765*71.425*16mm
OEM:
Accept
High Light:

overrunning One Way Clutch Bearing

,

16MM One Way Clutch Bearing

,

DC5476A one way sprag bearing

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD5-USD7 PER PIECE
Packaging Details
Carton Box
Delivery Time
3-5 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability
1000PCS Per Month
Product Description

         DC5476A 16MM Thickness One Way Sprag Type Overrunning Clutch Bearings



Brief Introduction of DC Sprag Clutch Bearing

Type DC is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing. The DC type version-N accepts all types of lubricants currently used in the power transmission equipement.


 Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0,6 mm minimum.

Core hardness to be HRC35 to 45.



Dimensions and Capacities of DC Sprag Clutch Bearing




Size







TKN1)

Overrunning speeds

Sprag space





NO.

of clips



No.

of sprags

Weight
nimax2) namax3) Øa+0.008
-0.005
Øc± 0.013 emin Ødmin Øbmax
[Nm] [min-1] [min -1] [mm] [mm] [mm] [mm] [mm] [mm]     [kg]
DC2222G-N 63 8600 4300 22.225 38.885 8.33±0.075 10 50 15 12 0.03
DC2776-N 119 6900 3400 27.762 44.422 8.33±0.075 13.5 58 18 14 0.055
DC3034-N 124 6300 3100 30.34 47 8.33±0.075 13.5 62 20 14 0.06
DC3175(3C)-N 159 6000 3000 31.75 48.41 8.33±0.075 13.5 63 21 3 16 0.06
DC3809A-N 275 5000 2500 38.092 54.752 8.33±0.075 16 71 25 18 0.085
DC4127(3C)-N 224 4600 2300 41.275 57.935 8.33±0.075 13.5 75 27 3 18 0.09
DC4445A-N 363 4300 2100 44.45 61.11 8.33±0.1 16 79 29 20 0.095
DC4972(4C)-N 306 3800 1900 49.721 66.381 8.33±0.1 13.5 86 33 4 22 0.1
DC5476A-N 525 3500 1700 54.765 71.425 8.33±0.1 16 92 36 24 0.11
DC5476A(4C)-N 525 3500 1700 54.765 71.425 8.33±0.1 16 92 36 4 24 0.13
DC5476B(4C)-N 769 3500 1700 54.765 71.425 8.33±0.1 21 92 36 4 24 0.18
DC5476C(4C)-N 990 3500 1700 54.765 71.425 8.33±0.1 25.4 92 36 4 24 0.2
DC5776A-N 604 3300 1600 57.76 74.42 8.33±0.1 16 98 38 26 0.11
DC6334B-N 806 3000 1500 63.34 80 8.33±0.1 21 104 42 26 0.175
DC7221(5C)-N 675 2600 1300 72.217 88.877 8.33±0.1 13.5 115 48 5 30 0.14
DC7221B-N 1279 2600 1300 72.217 88.877 8.33±0.1 21 115 48 30 0.185
DC7221B(5C)-N 1279 2600 1300 72.217 88.877 8.33±0.1 21 115 48 5 30 0.21
DC7969C(5C)-N 2038 2400 1200 79.698 96.358 8.33±0.1 25.4 124 53 5 34 0.28
DC8334C-N 2055 2300 1100 83.34 100.000 8.33±0.1 25.4 132 55 34 0.27
DC8729A-N 1250 2200 1100 87.29 103.96 8.33±0.1 16 134 58 34 0.165
DC10323A(5C)*-N 1612 1800 900 103.231** 119.891 8.33±0.1 16 155 68 5 40 0.205
DC12334C*-N 4800 1500 750 123.340** 140.000 8.33±0.1 25.4 184 80 50 0.4
DC12388C(11C) 4875 1500 750 123.881 142.88 9.50±0.1 25.4 186 80 11 44 0.4

NOTES
1) T max = 2 × T KN
» Refer to Selection page 12 to 19
2) Inner race overruns
3) Outer race overruns
*) The inner cage centering flange is on the opposite
side
**) Extension of tolerance to ± 0,013 permissible



Mounting Example

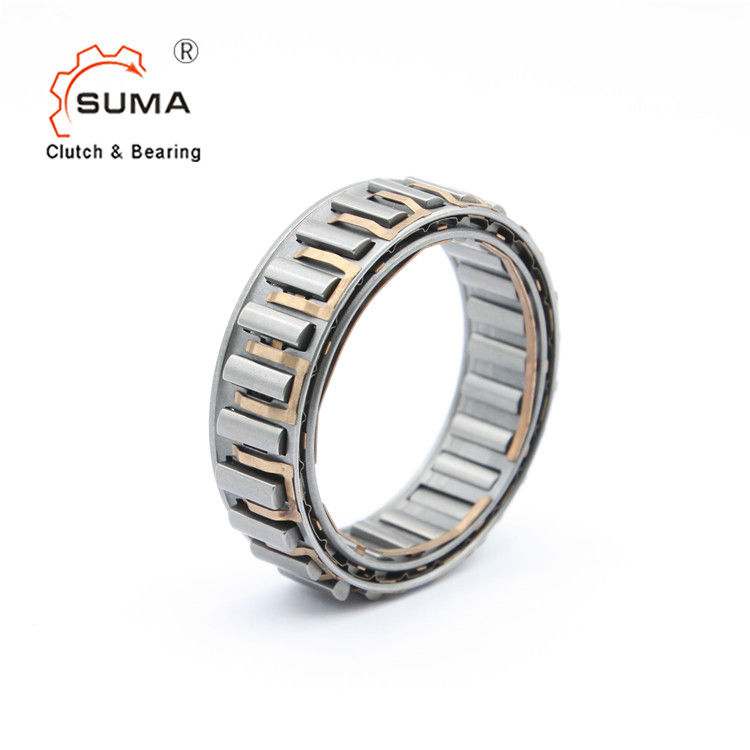

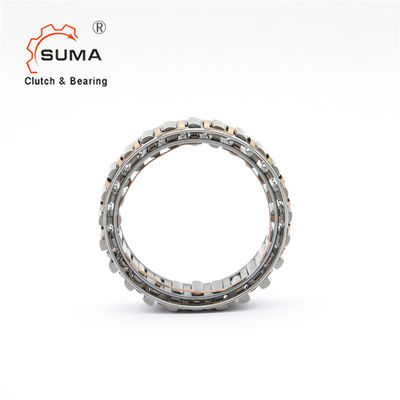

Pictures of DC Sprag Clutch Bearing


 DC5476A 16MM 	Overrunning One Way Sprag Clutch Bearing Corrosion Resistant 2

DC5476A 16MM 	Overrunning One Way Sprag Clutch Bearing Corrosion Resistant 3

DC5476A 16MM 	Overrunning One Way Sprag Clutch Bearing Corrosion Resistant 4

DC5476A 16MM 	Overrunning One Way Sprag Clutch Bearing Corrosion Resistant 5
