| Place of Origin | CHINA |
| Brand Name | SUMA |
| Certification | ISO SGS |
| Model Number | BB35 |

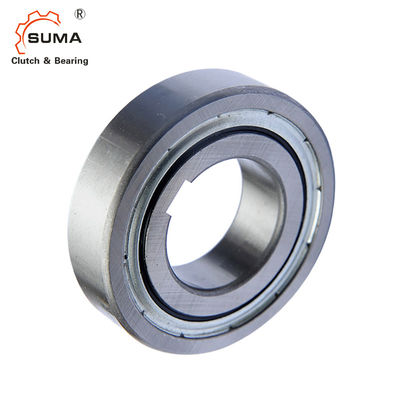

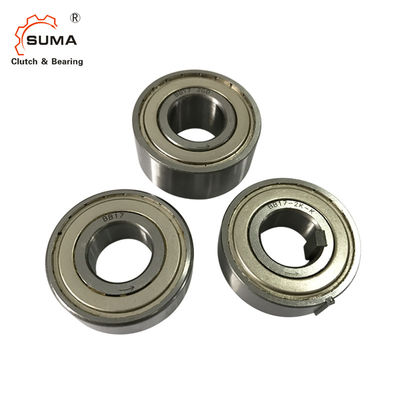

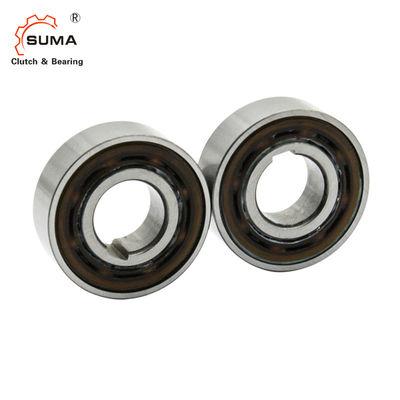

BB17 BB171K-K BB172K-K Cam Clutch 1800RPM One Way Sprag Clutch
Feature
1. BB series Cam Clutch is designed for press fit installation.
2. BB-1K-K and BB-2GD 1K-K series have a keyway on the inner race. Keyways, except size 25 are
manufactured to DIN 6885. 3, BB40-1K-K and BB40-2GD 1K-K are manufactured to DIN 6885. 1.
3. BB-2K-K series has a keyway on both the inner and outer race.
“-K” means keys shipped together with Cam Clutch.
4. Correct interference dimensions at the shaft and the housing must be maintained to obtain maximum bearing and clutch performance.
5. Refer to the table for tolerance of the shaft and housing for each series.
Technical Datas
Dimensions and Capacities
| Model | Torque Capacity |
Max. Overrunning | Drag Torque (N·m) | A | B | C | D | r | Weight (N) | |||||
|
Inner Race |
Outer Race |
BB BB-1K-K BB-2K-K |
BB-2GD 1K-K |
BB BB-1K-K BB-2K-K |
BB-2GD 1K-K |
BB BB-1K-K BB-2K-K |
BB-2GD 1K-K |
BB BB-1K-K BB-2K-K |
BB-2GD 1K-K |
|||||
| N·m | r/min | r/min | ||||||||||||
| BB15 | 29 | 3600 | 2000 | 0.01 | 0.04 | 11 | 16 | 35 | 15 | 32.6 | 32.45 | 0.6 | 50 | 70 |
| BB17 | 43 | 3500 | 1900 | 0.01 | 0.05 | 12 | 17 | 40 | 17 | 36.1 | 36.45 | 0.6 | 80 | 100 |
| BB20 | 61 | 3000 | 1600 | 0.014 | 0.055 | 14 | 19 | 47 | 20 | 41.7 | 42.35 | 1 | 120 | 150 |
| BB25 | 78 | 2500 | 1400 | 0.017 | 0.055 | 15 | 20 | 52 | 25 | 47.1 | 47.05 | 1 | 150 | 200 |
| BB30 | 140 | 2000 | 1100 | 0.03 | 0.058 | 16 | 21 | 62 | 30 | 56.6 | 55.6 | 1 | 230 | 280 |
| BB35 | 173 | 1800 | 1000 | 0.034 | 0.06 | 17 | 22 | 72 | 35 | 64 | 64.6 | 1.1 | 320 | 410 |
| BB40 | 260 | 1800 | 900 | 0.04 | 0.08 | 22 | 27 | 80 | 40 | 71 | 71.6 | 1.1 | 400 | 600 |
Note:
Model No. marked on the inner race is only “K” for both “1K” and “2K”. (Example: the mark “BB25-K” for both BB25-1K and BB25-2K)
Dimensions of Keys and Keyways
| Model | b2js10 | t1 | t2 | b1js9 | t | Inner race Key b×h×length |
Outer race Key b'× h' ×length |
|
| BB15-1K-K | BB15-2GD-1K-K | 5.0 | 1.9 | 1.2 | — | — | — | — |
| BB15-2K-K | - | 2.0 | 0.6 | 5x3x11 | 2x2x11 | |||
| BB17-1K-K | BB17-2GD-1K-K | 5.0 | 1.9 | 1.2 | — | — | — | — |
| BB17-2K-K | - | 2.0 | 1 | 5x3x12 | 2x2x12 | |||
| BB20-1K-K | BB20-2GD— 1K-K | 6.0 | 2.5 | 1.6 | — | — | — | — |
| BB20-2K-K | - | 3.0 | 1.5 | 6x4x14 | 3x3x14 | |||
| BB25-1K-K | BB25-2GD— 1K-K | 8.0 | 3.6 | 1.5 | — | — | — | — |
| BB25-2K-K | - | 6.0 | 2 | 8x5x15 | 6x4x15 | |||
| BB30-1K-K | BB30-2GD— 1K-K | 8.0 | 3.1 | 2.0 | — | — | — | — |
| BB30-2K-K | - | 6.0 | 2 | 8x5x16 | 6x4x16 | |||
| BB35-1K-K | BB35-2GD— 1K-K | 10.0 | 3.7 | 2.4 | — | — | — | — |
| BB35-2K-K | - | 8.0 | 2.5 | 10x6x17 | 8x5x17 | |||
| BB40-1K-K | BB40-2GD— 1K-K | 12.0 | 5.0 | 3.3 | — | — | — | — |
| BB40-2K-K | - | 10.0 | 3 | 12x8x22 | 10x6x22 | |||
Note:
The dimension of t2 for BB25-1K-K, BB25-2K-K and BB25-2GD 1K-K is 0.5 mm shallow compared to
DIN 6885. 3.
Process the keyway on the shaft 0.5 mm deeply to use DIN standard key.
All other models are dimensionally interchangeable with competitors.
6. BB, BB-1K and BB-2K Clutches, bearing supported and delivered with grease have dust seal protection

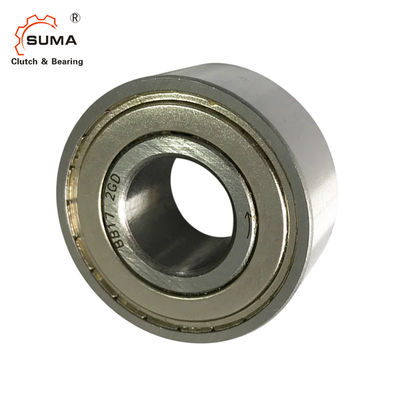

against particles of 0.25mm and over, whereas BB-2GD and BB-2GD-1K clutches, 5mm wider than standard BB series, have special lip seals for effective protection against any dust.
7. The arrow on the inner race shows the direction of inner race engaging.
8. To install the clutch, use a press tool of the appropriate diameter to apply even pressure over the entire face of the inner and outer race.
9. Do not hammer or apply other shock to the clutch.
10. Make sure the housing has enough strength to withstand the pressure required for the press fitting installation of the Clutch.
11. Operating temperature range: –30°C to +100°C (Consult us for the temperature that exceeds this range).
Lubrication
1. Since grease is already applied before delivery, there is no need to apply grease before use.
2. If the clutch is used with an oil lubricant, the oil lubrication should be applied inside the unit always.
3. Do not use greases or lubricants with EP additives.
Mounting Example
