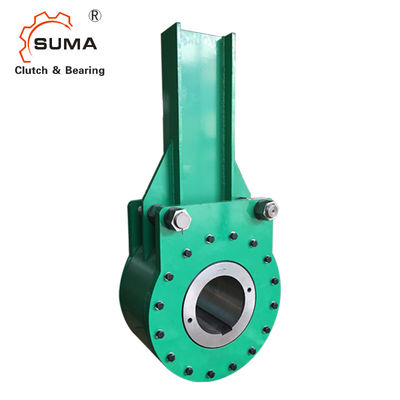

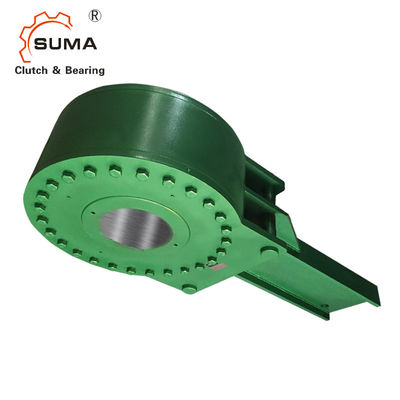

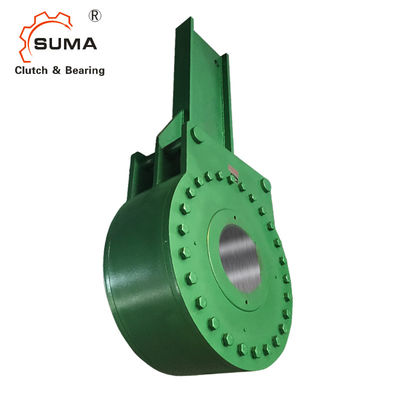

FRHD1600 One Way Backstop Sprag Clutch Bearing For Inclined Conveyor

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: FRHD1600
Minimum Order Quantity: 1 PC
Price: USD7000-USD10000 PER PIECE
Packaging Details: Wooden Box
Delivery Time: 20 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability: 200 PCS PER MONTH
Product Name: Backstop Sprag Clutch FRHD1600 Material: Bearing Steel GCr15
Bore Range: 14 Inch Outer Dia. Range: 17.63inch
Torque: 746000 Lb-ft Package: Wooden Box
Warranty: 1 Year OEM: Accept
High Light:

Backstop one way clutch bearing

,

FRHD1600 one way sprag clutch

,

FRHD1600 clutch one way bearing

FRHD1600 Backstop Sprag Clutch Bearing One Way for Inclined Conveyor System

Features



Complete Freewheels FRHD with lever arm are sealed sprag freewheels with ball bearings. They are supplied oil-filled and ready for installation. The freewheels are arranged on through shafts or shaft ends.

The freewheels FRHD are used as:
➧ Backstops
for low-speed applications. They are designed for use in inclined conveyor-belt systems, elevators and pumps. Taconite seals protect the backstops when conditions are dirty and dusty. Nominal torques up to 900 000 lb-ft. Bores up to 21 inch .



Dimensions and Capacities



Freewheel

 Size

Maximum

torque

MM

lb-ft

Nominal

torque

MN

lb-ft

Maximum

speed

inner ring

freewheels

rpm

Bore

d max.

inch

A

inch

C

inch

D

inch

E

inch

H

inch

L

inch

O

inch

P

inch

Q

inch

Weight

lbs

FRHD700 7500 3750 620 3.44 8 6 5.25 0.5 36 6 6.75 16.38 32 135
FRHD775 15000 7500 540 3.75 9.75 8 6 1 42.88 7.5 9 20.38 38 310
FRHD800 24000 12000 460 4.5 10.5 10 7 1 43.25 8 9.5 22.13 38 360
RHD 900 37000 18500 400 5.44 12 10 8 1.5 54 7.63 9.38 22.75 48 480
FRHD950 46000 23000 360 7 14 12 10 1.5 69 8 10 25 62 530
FRHD1000 56000 28000 360 7 17 8 9 4.13 80.38 8.75 - 23.13 72 550
FRHD1100 90000 45000 360 7 17 8 9 4.13 80.38 10 - 23.13 72 795
FRHD1200 185000 92500 250 9 23 10 12 4.94 89 11 - 28 78 1300
FRHD1300 220000 110000 220 10 25 12 14 5.25 95 12 - 30 82.88 1674
FRHD1400 280000 140000 200 12 30 18 16 6.25 107 13 - 36 94 2200
FRHD1450 380000 190000 200 12 30 18 16 6.25 107 15 - 36 94 2500
FRHD1500 580000 290000 200 12 31 18 15.1 6.25 107 17.6 - 36 94 2440
FRHD1600 746000 373000 140 14 32.5 20 17.6 6.25 124 19.3 - 30.44 108 3400
FRHD1700 1250000 625000 120 18 42.5 24.5 23 7.88 140 20 - 48 120 7000
FRHD1800 1800000 900000 100 21 52 30 26.5 10.5 170 23 - 54 144 12000



Mounting and Coupling


Pictures

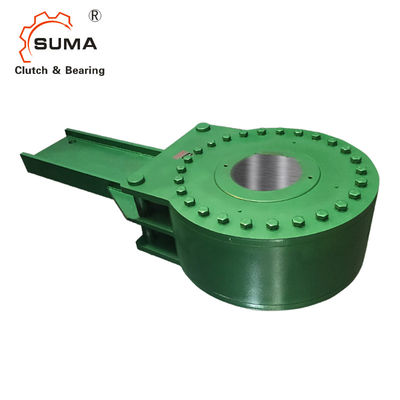

FRHD1600 One Way Backstop Sprag Clutch Bearing For Inclined Conveyor 3

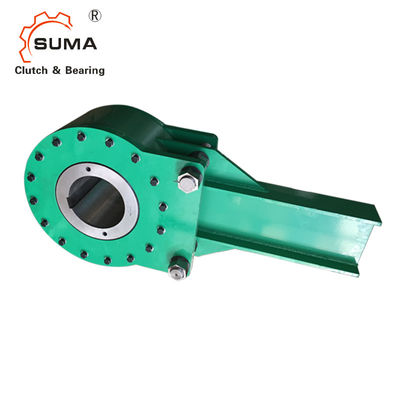

FRHD1600 One Way Backstop Sprag Clutch Bearing For Inclined Conveyor 4
