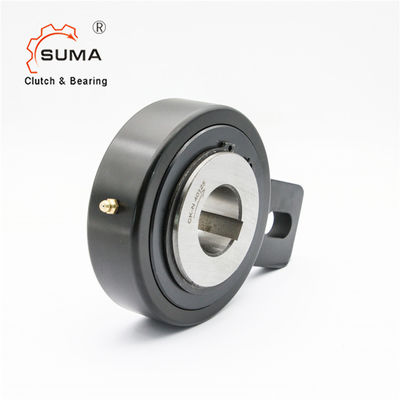

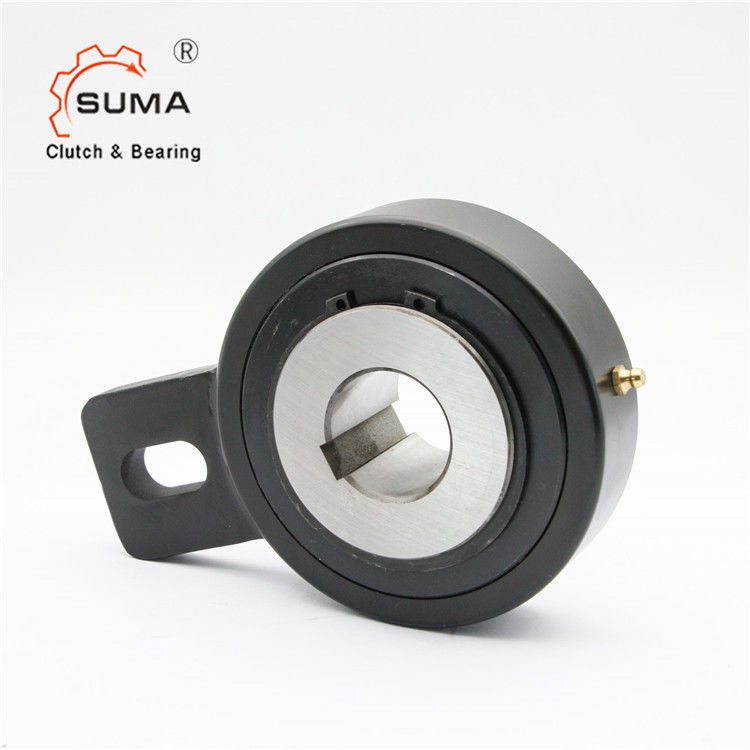

Chain Elevator RSBW80 One Way Sprag Bearing 200RPM For Low Rotational Speeds
  • Chain Elevator RSBW80 One Way Sprag Bearing 200RPM For Low Rotational Speeds
Chain Elevator RSBW80 One Way Sprag Bearing 200RPM For Low Rotational Speeds

Chain Elevator RSBW80 One Way Sprag Bearing 200RPM For Low Rotational Speeds

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number RSBW80 / RSBW90
Product Details
Product Name:
Backstop Clutch RSBW80 / RSBW90
Material:
GCr15 Bearing Steel
Size:
80*190*70mm / 90*190*70mm
Torque Capacity:
4875Nm
Rotation Speed:
200RPM
Unit Weight:
9.8Kg
Warranty:
1 Year
OEM:
Accept
High Light:

RSBW80 one way sprag bearing

,

Chain Elevator sprag bearing

,

one way sprag clutch bearing

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD200-USD240 PER PIECE
Packaging Details
Carton Box
Delivery Time
7-10 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability
1000PCS Per Month
Product Description

                            RSBW80 RSBW90 One Way Sprag Freewheel Backstop Clutch for Chain Elevator
 Features



Model RSBW is a specialized backstop based on a DC sprag type dual cage retainer assembly. It is self contained utilizing a combined outer race and torque arm, which incorporates plain bearings suitable for low rotational speeds, and seals using shield protected O-Rings. Primarily used as a backstop, this model provides high torque capacity with a minimum space.



Technical Datas

Product name Backstop Clutch Bearings
Model RSBW80 / RSBW90
Torque capacity 4875Nm
Overrunning speeds 200 min -1
Inner diameter 80mm / 90mm
Outer diameter 190mm
Thickness 70mm
Weight 9.8kg
Application Bucket Elevator, Conveyor System, Grain Silo, etc
Package Carton Box
Payment terms TT, L/C, D/A, D/P, Western Union, Paypal
Delivery time 7-10 Days


Dimensions and Capacities




Type Size   Overrunning Speeds   Weight









RSBW

 dH7 TKN1) nimax D L 1 F E B N L bH11
[mm] [Nm] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
20 375 400 106 35 113 102.5 40 35 15 18 2
25 606 400 106 48 113 102.5 40 35 15 18 2.6
30 606 400 106 48 113 102.5 40 35 15 18 2.5
35M 375 400 106 35 113 102.5 40 35 15 18 2
35 606 400 106 48 113 102.5 40 35 15 18 2.4
40 1295 300 132 52 125 115 60 35 15 18 4.6
45 1295 300 132 52 125 115 60 35 15 18 4.5
50 1295 300 132 52 125 115 60 35 15 18 4.5
55 1295 300 132 52 125 115 60 35 15 18 4.4
60 2550 250 161 54 140 130 70 35 15 18 6.5
70 2550 250 161 54 140 130 70 35 15 18 6.4
80 4875 200 190 70 165 150 70 45 20 25 9.9
90 4875 200 190 70 165 150 70 45 20 25 9.8

Mounting and Coupling


Pictures

Chain Elevator RSBW80 One Way Sprag Bearing 200RPM For Low Rotational Speeds 2

Chain Elevator RSBW80 One Way Sprag Bearing 200RPM For Low Rotational Speeds 3



FAQ



Q: How do you pack the goods?

  • Total less than 25 KG : 29*28*19CM carton box
  • Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  • Small items: In stock.
  • Medium Items: 10-15 Days
  • Big items: 20-25 Days
