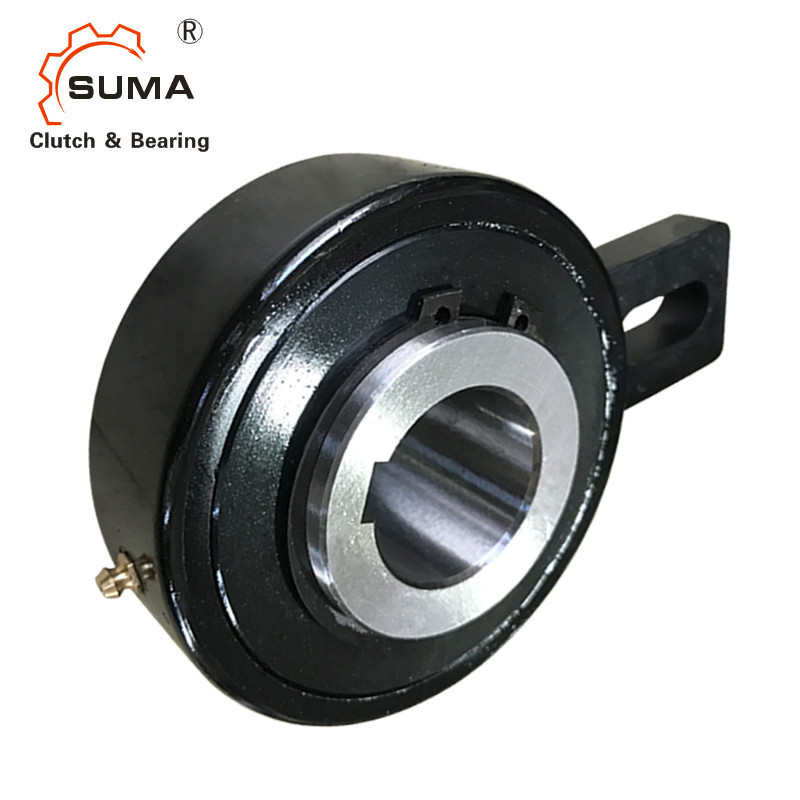

BSEU40-35 450RPM One Way Freewheel Clutch Bearing Replacement For Conveyor System

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: BSEU40-35
Minimum Order Quantity: 1
Price: USD120-USD150 PER PIECE
Packaging Details: Carton Box / Wooden Box
Delivery Time: 7-10 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 1000PCS Per Month
Product Name: Backstop Clutch Material: GCr15 Bearing Steel
Torque Capacity: 1440Nm Rotation Speed: 450RPM
Unit Weight: 3.78Kg Size: 30*118*55mm
Warranty: 1 Year OEM: Accept
High Light:

BSEU 40-35 freewheel bearing replacement

,

BSEU 40-35 freewheel clutch bearing

,

450 RPM freewheel bearing replacement

            BSEU40-35 Backstop Clutch One Way Freewheel Bearing for Conveyor System

Features of BSEU backstop Clutch

  BSEU Series Cam Clutch was developed as a user-friendly backstopping Cam Clutch. It has cam and roller construction which is the same as the smaller size BS Series Cam Clutch. The outer race has a special shape which combines the torque arm providing easy installation. These Cam Clutches are shipped pre-lubricated with grease and ready for installation. Most often used as a backstop in applications where limited space is available.



Dimensions and Capacities of BSEU backstop Clutch

Item BSEU40-30
Material GCr15
Bore dia. 30 mm
Outer dia. 118 mm
Width 55 mm
Torque capacity 1440 N.m
Overrunning limiting speed 150 r/min
Weight 3.75 kg
Package Carton box, wooden box or as your requirements





Model Bore Size Torque
Capacity
(N·m)
Max.
Overrunning
(r/min)
Inner Race
D D2 L1 L B F b N E J W. MIN W. Max
Dia
( H7)
Keyway
BSEU25-20 20 6×2.8 216  500 83 42 35 12 40 90 15 35 5 1 0.999 0.948
BSEU25-25 25 8×3.3 216  500 83 42 35 12 40 90 15 35 5 1
BSEU40-20 20 6×2.8 1,440  450 118 60 55 15 40 110 15 35 8 1.5 3.781 3.363
BSEU40-25 25 8×3.3 1,440  450 118 60 55 15 40 110 15 35 8 1.5
BSEU40-30 30 1,440  450 118 60 55 15 40 110 15 35 8 1.5
BSEU40-35 35 10×3.3 1,440  450 118 60 55 15 40 110 15 35 8 1.5
BSEU40-40 40 12× 3.3 1,440  450 118 60 55 15 40 110 15 35 8 1.5
BSEU70-45 45 14×3.8 3,140  350 165 90 59 20 80 140 18 35 10 1.5 7.607 6.541
BSEU70-50 50 3,140  350 165 90 59 20 80 140 18 35 10 1.5
BSEU70-55 55 16×4.3 3,140  350 165 90 59 20 80 140 18 35 10 2
BSEU70-60 60 18×4.4 3,140  350 165 90 59 20 80 140 18 35 10 2
BSEU70-65 65 3,140  350 165 90 59 20 80 140 18 35 10 2
BSEU70-70 70 20×4.9 3,140  350 165 90 59 20 80 140 18 35 10 2
BSEU90-75 75 4,700  250 190 120 63 20 80 165 20 40 15 2 10.046 9.265
BSEU90-80 80 22×5.4 4,700  250 190 120 63 20 80 165 20 40 15 2
BSEU90-85 85 4,700  250 190 120 63 20 80 165 20 40 15 2
BSEU90-90 90 25×5.4 4,700  250 190 120 63 20 80 165 20 40 15 2

Mounting and Coupling of BSEU backstop Clutch

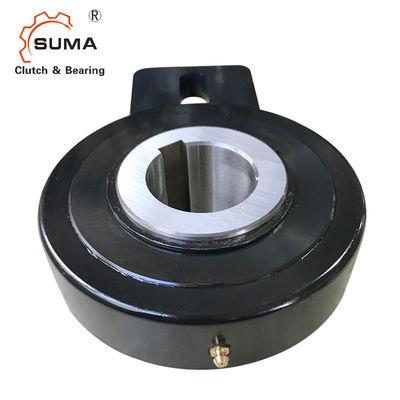

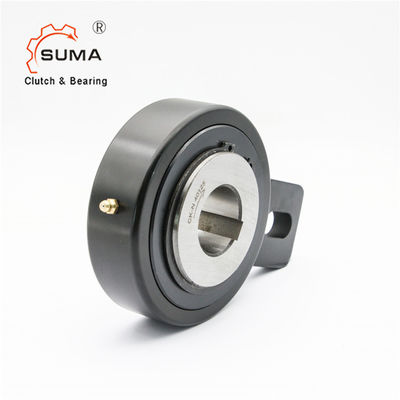

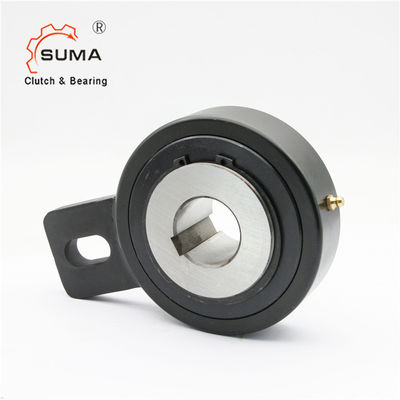

Pictures of BSEU backstop Clutch
BSEU40-35 450RPM One Way Freewheel Clutch  Bearing Replacement  For Conveyor System 2
 BSEU RSBW AV CK-N.jpg
