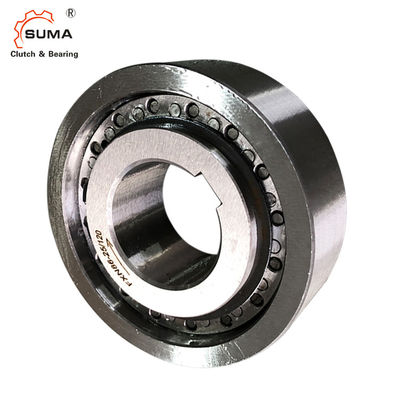

FXN101-25/140 One Way Sprag Clutch Bearing For Pump
  • FXN101-25/140 One Way Sprag Clutch Bearing For Pump

FXN101-25/140 One Way Sprag Clutch Bearing For Pump

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number FXN101-25/140
Product Details
Product Name:
Sprag Clutch Bearing FXN101-25/140
Function:
Overrunning / Backstopping
Material:
Bearing Steel GCr15
Bore Range:
55-75mm
Torque:
110Nm
Rotation Speed:
2100RPM
Outer Dia.:
140mm
OEM:
Accept
Warranty:
1 Year
High Light:

Sprag Clutch Bearing for pump

,

FXN101-25/140 Sprag Clutch Bearing

,

FXN101-25/140 one way sprag clutch

Payment & Shipping Terms
Minimum Order Quantity
1 PC
Price
USD190-USD230 PER PIECE
Packaging Details
Carton Box / Wooden Box
Delivery Time
7-15 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability
2000 PCS PER MONTH
Product Description

FXN101-25/140 High Speed Overrunning Backstop Clutch Bearing for Pump



Feature of FXN Backstop clutch bearing for PUMP



The freewheels FXN are used as:

Backstops

Overrunning Clutches

Internal Freewheels FXN are sprag freewheels without bearing support and with sprag lift-off X. The sprag lift-off X ensures a wear-free free - wheeling operation when the inner ring rotates at high speed. The outer ring is pressed into the customer hous ing. This makes compact, space-saving fitting solutions possible.



Dimension and Capacity of FXN Backstop clutch bearing for PUMP




Freewheel size

Torque

Nm

Inner ring Overrun Bore d Standard max.

B

mm

D

mm

F

mm

J

mm

K min. mm

L

mm

Weight

kg

mm mm mm mm mm mm mm
FXN31 - 17/60 110 5000 20*           20* 25 60 P6 55 31 85 24 0,3
FXN31 - 17/62 110 5000 20*           20* 25 62 P6 55 31 85 24 0,4
FXN38 - 17/70 180 5000 25*           25* 25 70 P6 62 38 90 24 0,4
FXN46 - 25/80 460 5000 25           30 35 80 P6 70 46 95 35 0,8
FXN51 - 25/85 560 5000 25 30 35       36 35 85 P6 75 51 105 35 0,8
FXN56 - 25/90 660 5000 35           40 35 90 P6 80 56 110 35 0,9
FXN61 - 19/95 520 5000 30 35 40       45* 26 95 P6 85 61 120 25 0,8
FXN61 - 19/106 520 5000 30 35 40       45* 25 106H7 85 61 120 25 1,2
FXN66 - 25/100 950 5000 35 40 45       48* 30 100P6 90 66 132 35 1,1
FXN66 - 25/110 950 5000 35 40 45       48* 40 110 P6 90 66 132 35 1,8
FXN76 - 25/115 1200 5000 45 55         60* 40 115 P6 100 76 140 35 1,7
FXN76 - 25/120 1200 5000 45 55         60* 32 120 J6 100 76 140 35 1,8
FXN86 - 25/125 1600 5000 40 45 50 60 65   70* 40 125P6 110 86 150 40 2,3
FXN86 - 25/130 1600 5000 40 45 50 60 65   70* 40 130P6 110 86 150 40 2,6
FXN 101 -25/140 2100 5000 55 70         75 45 140P6 125 101 175 50 3,1
FXN 101 - 25/149 2100 5000 70           75 62 149H6 125 101 175 62 4,2
FXN 101 - 25/150 2100 5000 55 70         75 45 150P6 125 101 175 50 3,6
FXN 85 - 40/140 2500 6000 45 50 60 65     65 45 140P6 125 85 175 60 3,2
FXN 85 - 40/150 2500 6000 45 50 60 65     65 45 150P6 125 85 175 60 4,2
FXN 100 - 40/160 3700 4500 45 50 55 60 70 75 75 50 160P6 140 100 190 60 5,1
FXN 105 - 50/165 5200 4500 80           80 62 165P6 145 105 195 62 5,8
FXN 120 - 50/198 7700 4000 60 65 70 75 80 95 95 70 198H6 160 120 210 70 8,6
FXN 140 - 50/215 10100 3000 65 90 100 110     110 69 215J6 180 140 245 70 14,0
FXN 170 - 63/258 20500 2700 70 85 100 120     130 80 258H6 210 170 290 80 21,0


The maximum transmissible torque is 2 times the specified nominal torque. See page 14 for determination of selection torque.

The theoretical nominal torque applies only for ideal concentricity between the inner and outer ring. In practice, the concentricity is affected by the bearing play and centering errors of the neigh bouring parts. Then the nominal torques specified in the table apply, whilst taking into consideration the existing run out (T.I.R.).

Higher speeds upon request.

Notes:

1. T max = 2 × T KN

2. Inner race overruns

3. Outer race overruns
Keyway to DIN 6885.1

Keyway according to DIN 6885, page 1 • Tolerance of keyway width JS10.

* Keyway according to DIN 6885, page 3 • Tolerance of keyway width JS10.

Mounting Example

FXN101-25/140 One Way Sprag Clutch Bearing For Pump 1

Internal Freewheel FXN 38 - 17/70 NX as a backstop, arranged in a housing adapter to attach to an electric motor. The thin outer ring that is pressed into the housing enables a space-efficient fitting solution. Due to the high shaft speeds in normal operation (freewheeling o peration), the sprag lift-off X ensures a contactless and hence wear-free continuous oper ation.

FXN101-25/140 One Way Sprag Clutch Bearing For Pump 2

Internal Freewheel FXN 66 - 25/100 NX as an overrunning clutch in the creep drive of a textile machine. The freewheel installation is compactly solved by means of the thin outer ring that is pressed into the worm wheel. During setup, the machine is driven by the worm gear and the freewheel that is working in driving operation. In normal operation (freewheeling oper ation), the inner ring that is located on the high speed main drive shaft overruns and automatically disengages the creep drive. With the high overrunning speed of the inner ring, the type with sprag lift-off X is used; the sprags work in freewheeling operation without contact and hence are wear-free.

FXN101-25/140 One Way Sprag Clutch Bearing For Pump 3



  Internal Freewheels FXN are without bearing support. Concentric alignment of inner and outer ring must be provided by the customer.
The permissible run out (T.I.R.) must be observed. The torque is transmitted on the outer ring by press fit. In order to transmit the torques speci- fied in the table, the outer ring must be accommodated in a housing with an external diameter K. The housing is made of steel or grey cast iron in minimum quality GG-20. When using other housing materials or smaller external diameters, we urge you to contact us regarding the transmissible torque. The tolerance of the housing bore is specified in the table under dimension D. The tolerance of the shaft must be ISO h6 or j6.

Lubrication
At speeds in excess of the sprag lift-off speed, no special lubrication is required; the freewheel functions maintenance-free. When operating below the sprag lift-off speed, an oil lubrication of the specified quality must be provided.



FXN101-25/140 One Way Sprag Clutch Bearing For Pump 4
