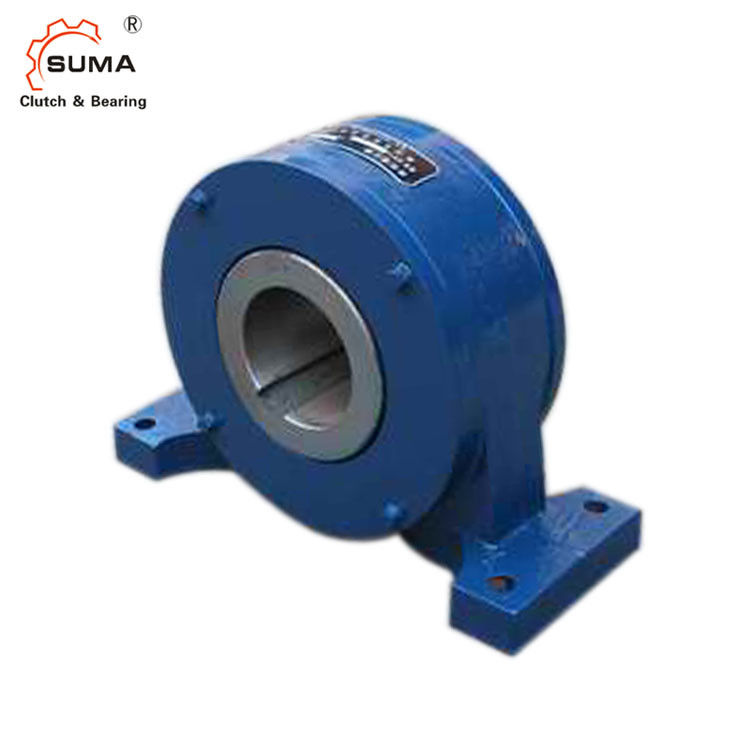

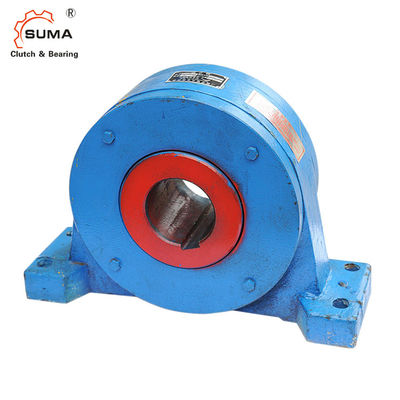

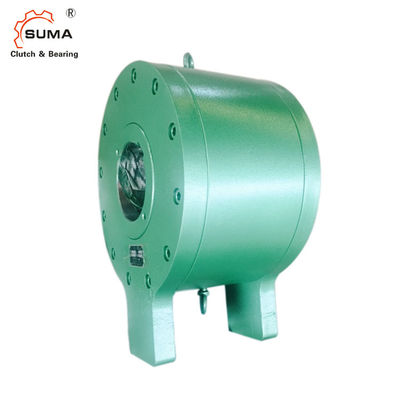

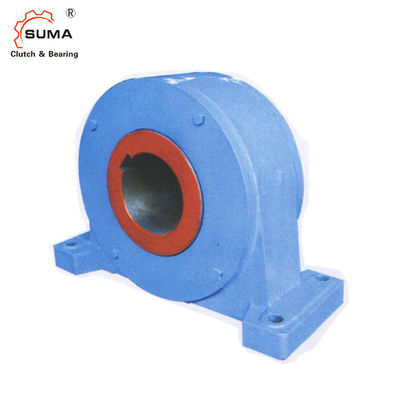

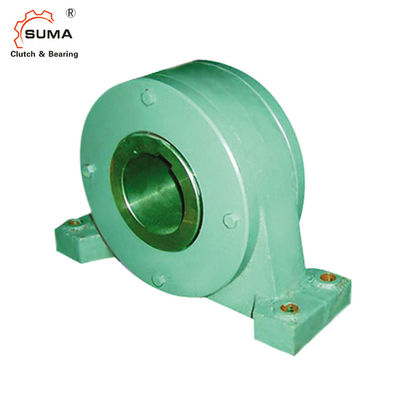

DTIIN1-9 Reducer Freewheel Sprag Backstop Bearing One Way
  • DTIIN1-9 Reducer Freewheel Sprag Backstop Bearing One Way
  • DTIIN1-9 Reducer Freewheel Sprag Backstop Bearing One Way
  • DTIIN1-9 Reducer Freewheel Sprag Backstop Bearing One Way
  • DTIIN1-9 Reducer Freewheel Sprag Backstop Bearing One Way
  • DTIIN1-9 Reducer Freewheel Sprag Backstop Bearing One Way

DTIIN1-9 Reducer Freewheel Sprag Backstop Bearing One Way

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number DTIIN1-9
Product Details
Product Name:
Sprag Backstop Clutch DTIIN1-9
Material:
Bearing Steel GCr15
Structure:
Roller Type
Bore Diameter:
90mm
Application:
Reducer / Gearbox
Port:
ShangHai / NingBo
Weight:
92.8Kg
OEM:
Accept
High Light:

Freewheel Backstop Bearing

,

DTIIN1-9 Backstop Bearing

,

Sprag Backstop Clutch Bearing

Payment & Shipping Terms
Minimum Order Quantity
1 PC
Price
USD300-USD500 PER PIECE
Packaging Details
Wooden Box
Delivery Time
7-15 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability
2000 PCS PER MONTH
Product Description

   DTIIN1-9 Reducer Freewheel Sprag Backstop Bearing

Feature

GN,DTIIN1 backstop clutch is a kind of low speed of roller type plugging device,often with reducer,used in

belt conveyor,hoist,electric drum, and other need a non-return device.

Non-return quickly ,small reverse distance,long life , can withstand the torque.

Technical Datas

Item DTIIN1-9
Material GCr15
Bore dia. 90 mm
Outer dia. 310 mm
Width 140 mm
Torque capacity 6.77KN.m
Weight 92.8 kg
Package Carton box, wooden box or as your requirements

Dimension and Capacity

DTIIN1-9 Reducer Freewheel Sprag Backstop Bearing One Way 0



Type Torque
Capacity
KN.m
Bore
Diameter
dH7
B B1 B2 C L C1 H H1 S bxt d1 Weight
(Kg)

Recommended

Suitable Reducer

DTIIN1-9 6.77 90 140 140 175 400 450 90 160 310 48 25×5.4 ɸ21 92.8 DCY200
DTIIN1-10 6.77 100 28×6.4 91.2 DCY224
DTIIN1-11 6.77 110 28×6.4 89.4 DCY250
DBY250
DTIIN1-12 13.7 120 170 170 160 430 480 120 175 340 32×7.4 123.0 DCY280
DBY280
DTIIN1-14 22.8 140 230 230 220 510 580 170 215 420 53 36×8.4 ɸ26 192.0 DCY315
DBY315


DTIIN1-9 Reducer Freewheel Sprag Backstop Bearing One Way 1

DTIIN1-9 Reducer Freewheel Sprag Backstop Bearing One Way 2
