BWX13143A One Way Sprag 120Nm Overrunning Clutch Cam

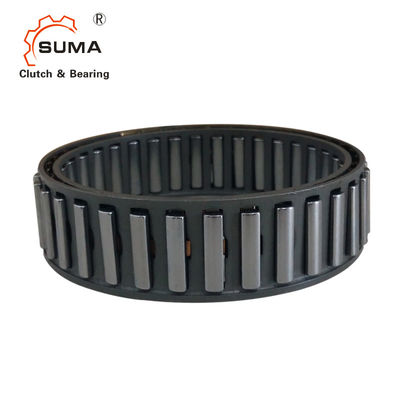

  • BWX13143A One Way Sprag 120Nm Overrunning Clutch Cam

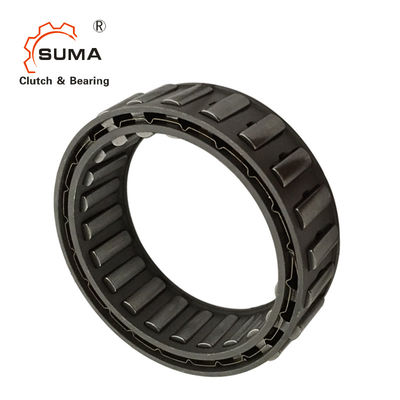

  • BWX13143A One Way Sprag 120Nm Overrunning Clutch Cam

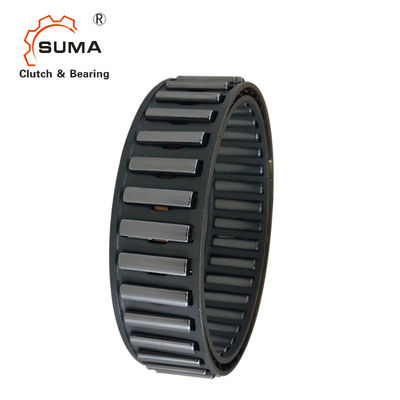

  • BWX13143A One Way Sprag 120Nm Overrunning Clutch Cam

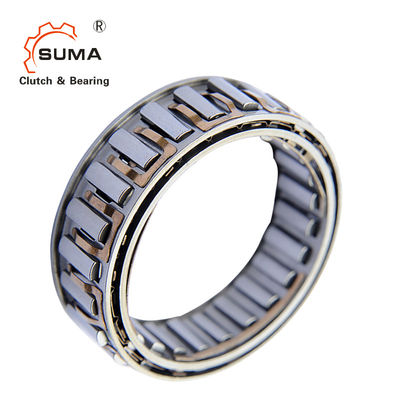

  • BWX13143A One Way Sprag 120Nm Overrunning Clutch Cam

BWX13143A One Way Sprag 120Nm Overrunning Clutch Cam

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number BWX13143A
Product Details
Product Name:
Sprag Clutch Bearing BWX13143A
Material:
GCr15 Bearing Steel
Torque Capacity:
120Nm
Unit Weight:
0.06Kg
Warranty:
1 Year
OEM:
Accept
Package:
Carton Box Or Wooden Case
Delivery Time:
3-5 Days
High Light:

BWX13143A Clutch Cam

,

120Nm Clutch Cam

,

Sprag Overrunning Clutch

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD30-USD40 PER PIECE
Packaging Details
Carton Box
Delivery Time
3-5 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability
1000PCS Per Month
Product Description

               BWX13143A One Way Sprag 120Nm Overrunning Clutch Cam

Features

Cage Freewheels BWX are sprag freewheels to be installed between customer-supplied inner and outer rings.

The freewheels BWX are used as:

➧ Backstops

➧ Overrunning Clutches

➧ Indexing Freewheels

Nominal torques up to 4 900 Nm.

Disengaging

When the outer ring is rotating the centrifugal force causes the sprags to lift off from the inner race. This reduces wear during freewheeling operation.

Engaging

When the outer ring is rotating the centrifugal force presses the sprags against the inner ring. This enhances the ability of the sprags to engage immediately when torque is applied.



Dimensions and Capacities

Freewheel Size Nominal t orque
MN
Nm
J
+0,008
-0,005 mm
D
±0,013 mm
B
mm
K
mm
Sprags Quantity Drag strips
Quantity
Brake clips
Quantity
Weight
kg
BWX133590A 63 22,225 38,887 10,0 44,0 12     0,03
BWX13143A 120 27,767 44,425 13,5 51,0 14     0,06
BWX133392 280 38,092 54,750 16,0 71,0 18     0,09
BWX1310145 180 41,275 57,937 13,5 74,2 14   3 0,07
BWX132909A 360 44,450 61,112 16,0 78,5 20 2 3 0,10
BWX133339 310 49,721 66,383 13,5 85,0 22 2 4 0,09
BWX1310003 310 49,721 66,383 13,5 85,0 22   4 0,09
BWX137222 570 49,721 66,383 19,0 85,0 22     0,12
BWX1310445 400 54,765 71,427 13,5 91,7 24     0,09
BWX1310172 540 54,765 71,427 16,0 91,7 24     0,12
BWX1310226 520 54,765 71,427 16,0 91,7 24 2 4 0,12
BWX136709 770 54,765 71,427 21,0 91,7 24 3 10 0,16
BWX1310147 1 000 54,765 71,427 25,4 91,7 24 3 8 0,20
BWX136324 600 57,760 74,427 19,0 95,0 26     0,14
BWX1310080 670 72,217 88,882 13,5 115,0 30   4 0,12
BWX13168 1 300 72,217 88,882 21,0 115,0 30     0,20
BWX134012 1 300 72,217 88,882 21,0 115,0 30 4 10 0,20
BWX137322 2 000 79,6982 96,363 25,4 124,0 34 5 12 0,28
BWX138316 2 960 83,5972 102,596 25,4 131,6 34 5 12 0,30
BWX13261A1 1 600 103,2312 119,893 16,0 154,0 40 6 10 0,19
BWX13236 1 700 117,3912 136,391 16,0 175,3 30 5 6 0,25
BWX133403B 4 900 123,8812 142,880 25,4 188,0 44   11 0,46



1 With this Freewheel Sizethe centering flange of the inner cage is on the right hand side!

2 Tolerance of the inner ring race diameter may be increased by ±0,013 mm!

The theoretical nominal torque applies only for ideal concentricity between the inner and outer ring.

The maximum transmissible torque is 2 times the specified nominal torque. See page 14 for determination of selection torque.

Mounting Example
The lateral guidance of the Cage Freewheels can be effected either by a shoulder on the outer ring or by guard rings or guard discs which are fixed in the outer ring. There must be no undercuts, recesses, shoulders or chamfers, or any eccentricity whatsoever, over dimension „B“. For ease of assembly we recommend that the inner and outer races be chamfered at an angle of 15 degrees for a leghts of 3 mm.

Example for ordering
Example for ordering
Freewheel size BWX 13143A, standard type:
• BWX 13143A

Pictures



Drag strips

To reduce wear during freewheeling operation between sprags and the inner race, drag strips made from wear-resistant beryllium copper alloy are attached to the inner cage. This results in increased friction between inner cage and inner race. This counteracts individual sprag activation during freewheeling operation, the- reby greatly reducing sprag pressure on the inner race.

Brake clips

Some freewheel sizes are available with brake clips fitted on the outer cage to prevent further automatic rotation of the Cage Freewheel du- ring rapid acceleration and deceleration of the outer ring (e.g. in indexing freewheels).
