AE Roller 6000RPM H6 Tolerance One Way Clutch Bearing

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: AE12
Minimum Order Quantity: 1
Price: USD20-USD30 PER PIECE
Packaging Details: Carton Box
Delivery Time: 3-5 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 1000PCS Per Month
Product Name: One Way Clutch Bearing AE12 Material: GCr15 Bearing Steel
Torque Capacity: 17Nm Rotation Speed: 6000RPM
Unit Weight: 0.11Kg Warranty: 1 Year
Size: 12*37*20mm OEM: Accept
High Light:

6000RPM One Way Clutch Bearing

,

H6 Tolerance One Way Clutch Bearing

,

H6 Tolerance One Way Roller Bearing

               AE Roller 6000RPM H6 Tolerance One Way Clutch Bearing

Features

  Type AE is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. Nominal outside diameter is a standard ball bearing dimension.

A typical arrangement is to install this type beside a bearing with the same housing diameter tolerance.

The inner race is keyed to the shaft. The outer race has a h6 tolerance and should be fitted in a housing with a K7 tolerance. Additional side notches provide for positive torque transmission.

If the housing tolerance is to R6, use of the notches is not necessary, but the housing must be strong enough to not expand after assembly. This design can accept an axial

misalignment of inner and outer race of ± S/2.

Technical Datas

Item AE12
Material GCr15
Bore dia. 12 mm
Outer dia. 35 mm
Width (B) 20 mm
Torque capacity 17 N.m
Overrunning limiting speed (inner race) 6000 r/min
Overrunning limiting speed (outer race) 3100 r/min
Weight 0.11 kg
Package Carton box or as your requirements

Dimensions and Capacities



Type Size   Overrunning speeds   Weight Drag torque











AE



dH7

(mm)

TKN1

(Nm )

Nimax2)

(min-1)

Namax3)

(min-1)

Dh6

(mm)

D5

(mm)

D6

(mm)

L

(mm)

s

(mm)

f

(mm)

e

(mm)

b

(mm)

t

(mm)



(kg)

TR



(Ncm)

12 17 3100 6000 37 28 20 20 4.5 0.5 0.8 6 3 0.11 0.7
15 55 2300 5400 47 37 26 30 4.5 0.8 1.2 7 3.5 0.30 3.5
20 146 2000 3600 62 50 35 34 5.5 0.8 1.2 8 3.5 0.55 8.4
25 285 1700 2600 80 68 45 37 6.5 1 1.8 9 4 0.98 14
30 500 1500 2100 90 75 50 44 6.2 1 1.8 12 5 1.50 23
35 720 1300 1950 100 80 55 48 3.8 1 1.8 13 6 2.00 60
40 1030 1200 1700 110 90 60 56 3.8 1.5 1.8 15 7 2.80 72
45 1125 1050 1600 120 95 65 56 3.8 1.5 2.6 16 7 3.30 140
50 2150 950 1300 130 110 75 63 5.8 1.5 2.6 17 8 4.20 180
55 2675 850 1200 140 115 82 67 3.8 2 2.6 18 9 5.20 190
60 3500 800 1100 150 125 90 78 7.6 2 2.6 18 9 6.80 240
70 5813 650 900 170 140 100 95 7.6 2.5 2.6 20 9 10.5 320

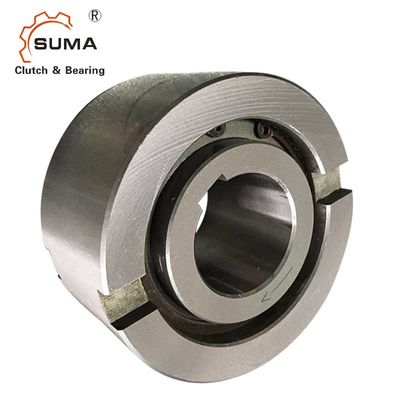

AE Roller 6000RPM H6 Tolerance One Way Clutch Bearing 0

Mounting and Coupling

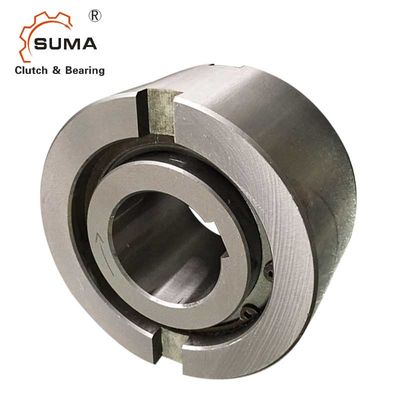

AE Roller 6000RPM H6 Tolerance One Way Clutch Bearing 1

Pictures

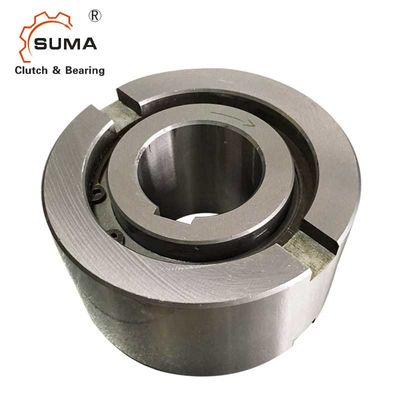

AE Roller 6000RPM H6 Tolerance One Way Clutch Bearing 2

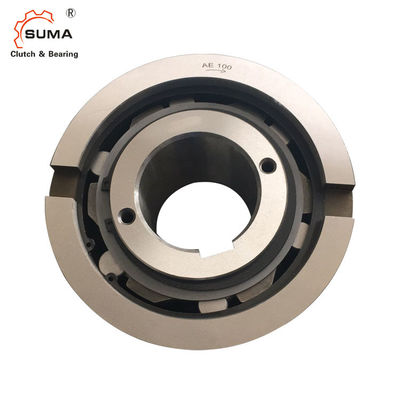

AE Roller 6000RPM H6 Tolerance One Way Clutch Bearing 3
