CKF-A35110 Backstop Sprag One Way Clutch

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: CKF-A35110
Minimum Order Quantity: 1
Price: USD150-USD200 PER PIECE
Packaging Details: Carton Box
Delivery Time: 7-10 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 1000PCS Per Month
Product Name: Backstop Clutch CKF-A35110 Torque Capacity: 425Nm
Rotation Speed: 6000RPM Unit Weight: 2.1Kg
Warranty: 1 Year Size: 35*110*40mm
Material: GCr15 Bearing Steel OEM: Accept
High Light:

CKF-A35110 One Way Clutch

,

6000RPM One Way Clutch

,

Backstop Cam Clutch Bearing

              CKF-A35110 40 MM 6000RPM Backstop Sprag One Way Clutch

Features

  CKF-A is a non-contact sprag type one way clutch. The inner ring is designed for unidirectional function without bearing support. Bearing must be installed to ensure the coaxiality of the inner ring and outer ring when used.

  When used for the purpose of preventing reversal, it is necessary to check that the speed must not be lower than the minimum allowable value for exceeding the speed, as shown in the table below.

  This model is mainly used to prevent reversal under high speed working condition. It can also be used for high speed overrunning clutch and low speed wedge drive switching device.

Technical Datas

Item CKF-A35110
Material GCr15
Bore dia. 35 mm
Outer dia. 100 mm
Width (B) 40 mm
Torque capacity 425 N.m
Overrunning limiting speed (inner race) 6000 r/min
Overrunning limiting speed (outer race) 740 r/min
Weight 2.1 kg
Package Carton box or as your requirements



Dimensions and Capacities

CKF-A35110 Backstop Sprag One Way Clutch 0

Type
Torque Nm
Overrunning
Limited Speed r/min
d[H7] D[h7] e[H7] F G C B A n-d1 bn*tn Weight
[kg]
out race inner race
CFK-A2090 140 875 6000 20 90 66 78 36 35 35 25 6-6.6 6×2.8 1.50
CFK-A2595 190 825 6000 25 95 70 82 40 35 35 25 6-6.6 8×3.3 1.60
CFK-A30102 340 780 6000 30 102 75 87 45 40 40 30 6-6.6 8×3.3 1.80
CFK-A35110 425 740 6000 35 110 82 96 52 40 40 30 6-6.6 10×3.3 2.10
CFK-A40125 625 720 5000 40 125 92 108 62 40 40 30 8-6.6 12×3.3 2.90
CFK-A45130 715 665 5000 45 130 94 112 64 40 40 30 8-9.0 14×3.8 3.10
CFK-A50150 1120 610 4000 50 150 114 132 84 40 40 30 8-9.0 14×3.8 4.70
CFK-A55160 1300 600 4000 55 160 116 138 86 45 45 34 8-9.0 16×4.3 5.40
CFK-A60175 1500 490 3200 60 175 135 155 95 70 60 47 8-11.0 18×4.4 8.5
CFK-A70190 2250 480 3200 70 190 140 165 100 70 60 47 12-11.0 20×4.9 10
CFK-A80210 3000 450 2400 80 210 160 185 120 80 70 48 12-11.0 22×5.4 14
CFK-A90230 4600 420 2400 90 230 180 206 140 90 80 67 12-13.5 25×5.4 19
CFK-A100280 7600 455 2000 100 280 200 240 160 105 100 67 12-17.5 28×6.4 34
CFK-A130320 13600 415 2000 130 320 235 278 195 105 100 67 12-17.5 32×7.4 44
CFK-A150400 24500 365 2000 150 400 320 360 256 105 100 86 12-17.5 36×8.4 73



Pictures

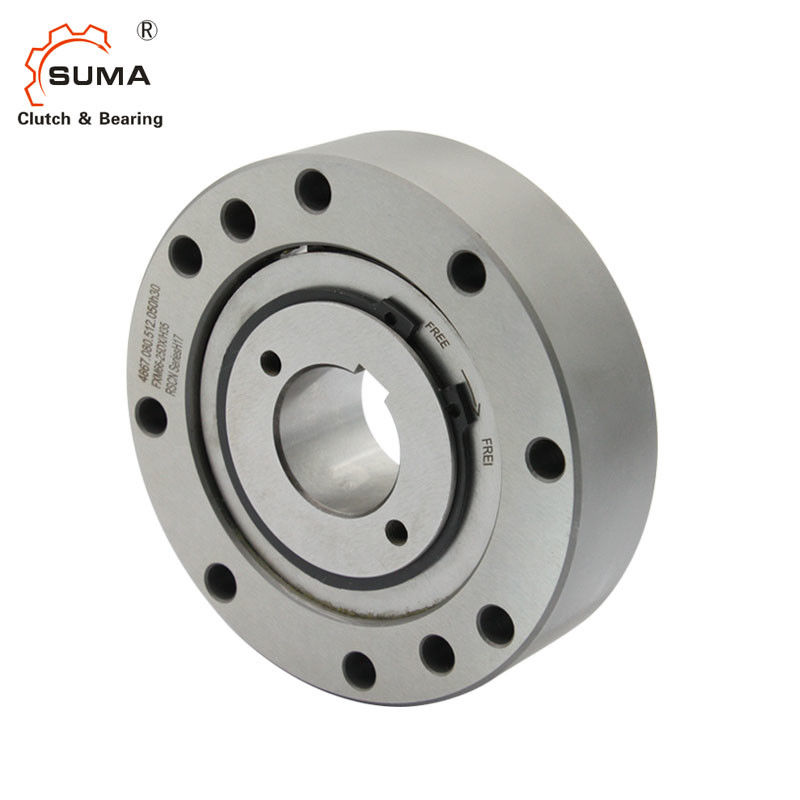

 CKF-A35110 Backstop Sprag One Way Clutch 1
