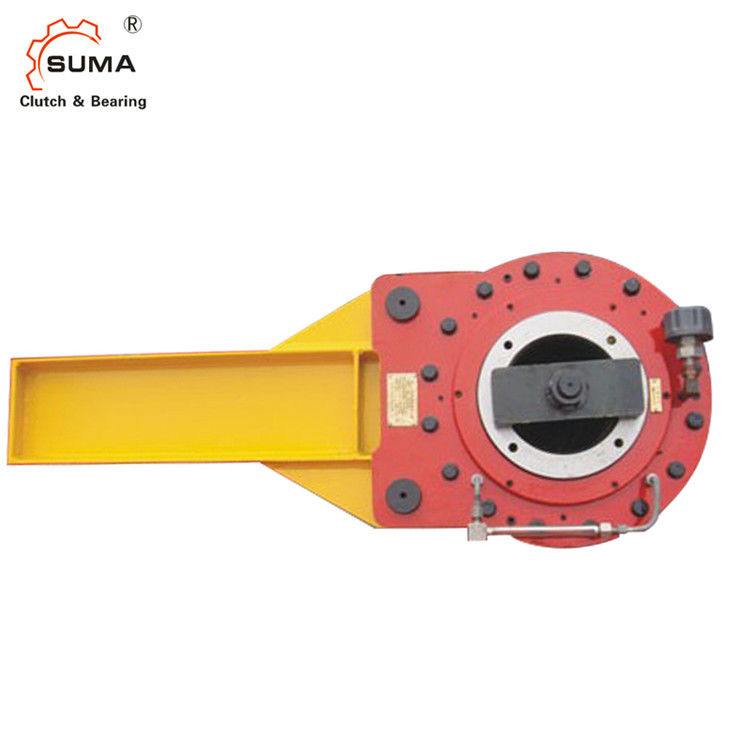

NDZ160 Elevator Low Speed 150 RPM Backstop Bearing

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: NDZ160 NJZ16
Minimum Order Quantity: 1
Price: USD2000-USD8000 PER PIECE
Packaging Details: Wooden Case
Delivery Time: 10-15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 1000PCS Per Month
Product Name: Backstop Clutch NDZ160 NJZ16 Material: GCr15 Bearing Steel
Torque Capacity: 16000Nm Rotation Speed: 150RPM
Warranty: 1 Year Unit Weight: 98Kg
OEM: Accept Delivery Time: 7-15 Days
High Light:

NDZ160 Backstop Bearing

,

150 RPM Backstop Bearing

,

Convenient Backstop Cam Clutch

            NDZ160 Elevator Low Speed 150 RPM Backstop Bearing

Features

1. Low-speed Reverse Prevention Device

2. Bearing support

3. Has advantage of light weight, compact structure, convenient installation, wedge and relaible.

4. Compared with item NJ NYD, it has higher rotational speed, higher torque, higher precision, long life, more reliable and safe.

5. Can be widely used to large inclined angleconveyor, bucket elevator or any device need backstopping.



Dimensions and Capacities

TYPE Load Capacity Inner Race
Max Speed
Drag Torque Bore
Size
DIMENSION Weight
N·m r/min N·m (mm) A B D H h L E F kg
NDZ160(NJZ16) 16000 150 20 100~130 120 80 320 506     150     98
NDZ250(NJZ25) 25000 150 35 120~160 140 80 360 800     150     112
NDZ400(NJZ40) 40000 150 45 160~200 160 88 430 850     160     182
NDZ500(NJZ50) 50000 100 75 160~220 220 110 500 1000 100 100 240     354
NDZ1000(NJZ100) 100000 100 95 180~250 250 120 600 1200 100 100 290     644
NDZ1300(NJZ130) 130000 90 100 200~270 280 120 650 1300 80 40 290 120 60 755
NDZ2000(NJZ200) 200000 90 110 230~300 320 130 780 1300 80 45 294 135 60 1088
NDZ2800(NJZ280) 280000 90 140 250~320 360 140 850 1500 100 50 320 150 70 1426
NDZ3300(NJZ330) 330000 80 160 260~350 400 140 930 1600 100 55 360 160 70 1921
NDZ5300(NJZ530) 530000 80 220 320~420 450 150 1030 1800 120 60 440 180 80 2945
NDZ7100(NJZ710) 710000 80 250 350~450 500 160 1090 2000 120 70 480 210 100 3518
NDZ10000(NJZ1000) 1000000 70 280 380~480 560 170 1200 2200 150 80 500 230 110 4442



MODELS DNZ160-NDZ1300


Mounting



Pictures

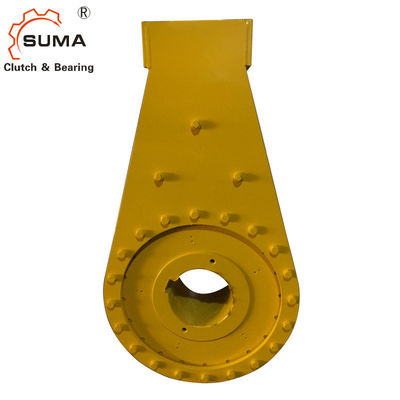

NDZ160 Elevator Low Speed 150 RPM Backstop Bearing 2

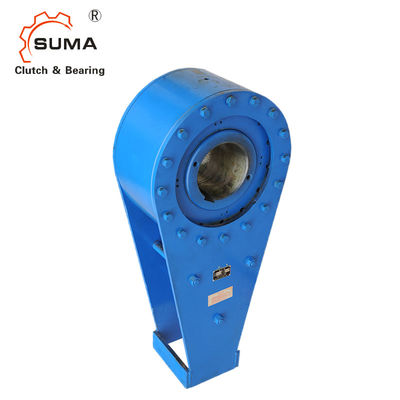

NDZ160 Elevator Low Speed 150 RPM Backstop Bearing 3
