| Place of Origin | CHINA |
| Brand Name | SUMA |
| Certification | ISO SGS |
| Model Number | GFR90 GFRN90 |

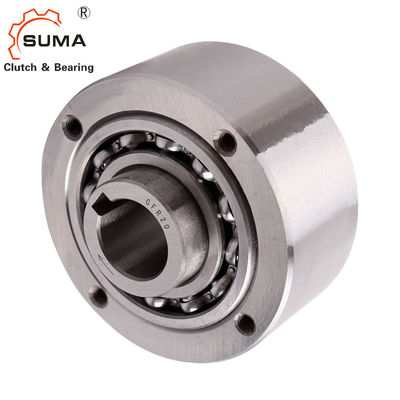

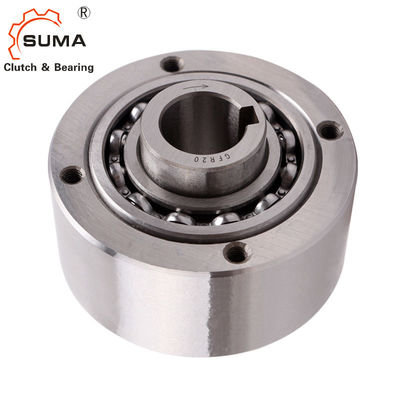

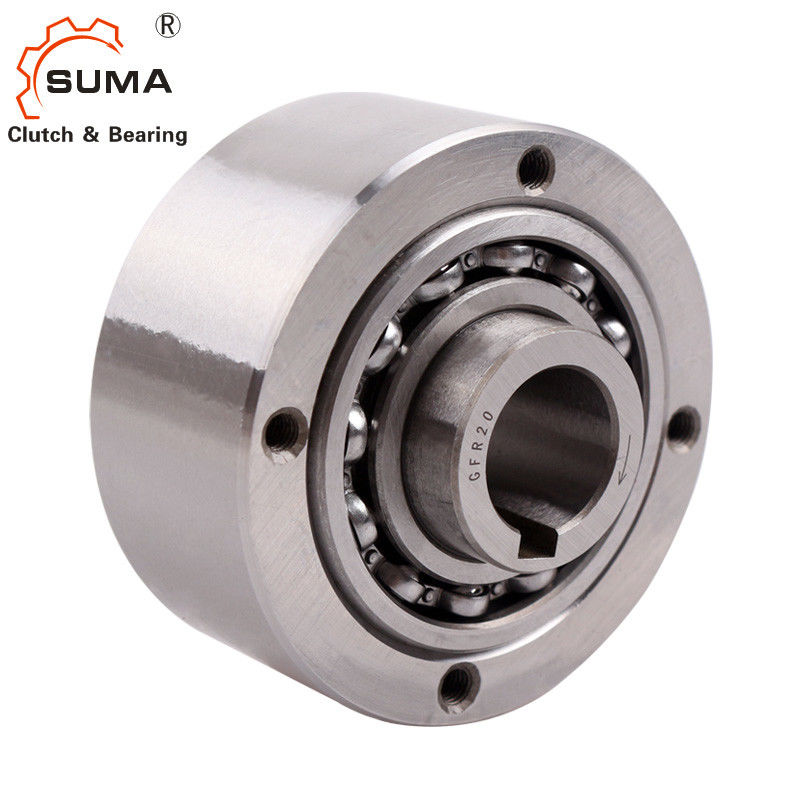

GFR90 GFRN90 158MM Freewheel Roller Type Backstop Bearing
Features
Types GFR,GFRN are roller type freewheels. They are bearing supported, using two 160.. series bearings, and require oil lubrication. These units may be used in designs providing oil lubrication and sealing as on the example overleaf. The bearings must not be axially stressed.
Typically, types GFR,GFRN are used with the F series covers that are designed to transmit torque, and provide oil lubrication and sealing. Usually these covers are used in pairs according to combinations shown on the following pages. The outer race of the GFR model is plain to receive and center any component bored to H7 tolerance.
Torque is transmitted by bolts through the cover plate in this case. Types GFR, GFRN are identical except that type GFRN has a keyway on the outside diameter to transmit the torque. Two paper seals are delivered with each unit to be placed between the outer race and cover plates.
Technical Datas
| Item | GFR90 GFRN90 |
| Inner dia. | 90 mm |
| Outer dia. | 230 mm |
| Width | 158 mm |
| Torque | 14500 Nm |
| Weight | 28.5 kg |
| Port | Shanghai;Ningbo |
| Delivery time | 10-15 days |
| Package | wooden package, carton package,etc |
| Application | Conveyer, Electric Motor,Bucket elevator,etc |
Dimensions and Capacities
| Type | Size | Overrunning speeds |
Num ber |
Weight | ||||||||||||||
GFR GFRN |
dH7 | TKN1) | nimax2) | namax3) | Dh7 | D2 | D4 | D3 | G | t | z | L 1 | L | B | t1 | bP10 | f | |
| [mm] | [Nm] | [min-1] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] |
[ mm] |
[mm] | [kg] | |||
| 12* | 55 | 4000 | 7200 | 62 | 20 | 42 | 51 | ø5.5 | – | 3 | 42 | 20 | 27 | 2.5 | 4 | 0.5 | 0.5 | |
| 15 | 125 | 3600 | 6500 | 68 | 25 | 47 | 56 | M5 | 8 | 3 | 52 | 28 | 32 | 3 | 5 | 0.8 | 0.8 | |
| 20 | 181 | 2700 | 5600 | 75 | 30 | 55 | 64 | M5 | 8 | 4 | 57 | 34 | 39 | 3.5 | 6 | 0.8 | 1 | |
| 25 | 288 | 2100 | 4500 | 90 | 40 | 68 | 78 | M6 | 10 | 4 | 60 | 35 | 40 | 4 | 8 | 1 | 1.5 | |
| 30 | 500 | 1700 | 4100 | 100 | 45 | 75 | 87 | M6 | 10 | 6 | 68 | 43 | 48 | 4 | 8 | 1 | 2.2 | |
| 35 | 725 | 1550 | 3800 | 110 | 50 | 80 | 96 | M6 | 12 | 6 | 74 | 45 | 51 | 5 | 10 | 1 | 3 | |
| 40 | 1025 | 1150 | 3400 | 125 | 55 | 90 | 108 | M8 | 14 | 6 | 86 | 53 | 59 | 5 | 12 | 1.5 | 4.6 | |
| 45 | 1125 | 1000 | 3200 | 130 | 60 | 95 | 112 | M8 | 14 | 8 | 86 | 53 | 59 | 5.5 | 14 | 1.5 | 4.7 | |
| 50 | 2125 | 800 | 2800 | 150 | 70 | 110 | 132 | M8 | 14 | 8 | 94 | 64 | 72 | 5.5 | 14 | 1.5 | 7.2 | |
| 55 | 2625 | 750 | 2650 | 160 | 75 | 115 | 138 | M10 | 16 | 8 | 104 | 66 | 72 | 6 | 16 | 2 | 8.6 | |
| 60 | 3500 | 650 | 2450 | 170 | 80 | 125 | 150 | M10 | 16 | 10 | 114 | 78 | 89 | 7 | 18 | 2 | 10.5 | |
| 70 | 5750 | 550 | 2150 | 190 | 90 | 140 | 165 | M10 | 16 | 10 | 134 | 95 | 108 | 7.5 | 20 | 2.5 | 13.5 | |
| 80 | 8500 | 500 | 1900 | 210 | 105 | 160 | 185 | M10 | 16 | 10 | 144 | 100 | 108 | 9 | 22 | 2.5 | 18.2 | |
| 90 | 14500 | 450 | 1700 | 230 | 120 | 180 | 206 | M12 | 20 | 10 | 158 | 115 | 125 | 9 | 25 | 3 | 28.5 | |
| 100 | 20000 | 350 | 1450 | 270 | 140 | 210 | 240 | M16 | 24 | 10 | 182 | 120 | 131 | 10 | 28 | 3 | 42.5 | |
| 130 | 31250 | 250 | 1250 | 310 | 160 | 240 | 278 | M16 | 24 | 12 | 212 | 152 | 168 | 11 | 32 | 3 | 65 | |
| 150 | 70000 | 200 | 980 | 400 | 200 | 310 | 360 | M20 | 32 | 12 | 246 | 180 | 194 | 12 | 36 | 4 | 138 | |
Notes:
1) T max = 2 × T KN
2) Inner race overruns
3) Outer race overruns
Mounting Example
