GV120 GCr15 One Way 42KG Freewheel Backstop Bearing
Technical Datas
Item | GV120 |
Material | GCr15 |
Bore size | 120 mm |
Outer dia. | 300 mm |
Thickness | 110 mm |
Torque | 11100 Nm |
Drag torque | 6 Ncm |
Weight | 42 kg |
Max. speed | 130 rpm |
Port | Shanghai;Ningbo |
Delivery time | 10-20 days |
Dimensions and Capacities
Model | dH7 | D | L | B1 | L1 | b2 | l2 | l3 | l4 |
Weight (kg) |
Max.speed (rpm) |
Torque (Nm) |
Drag Torque (Ncm) |
GV20 | 20 | 83 | 35 | 40 | 12 | 15 | 35 | 5 | 90 | 1.3 | 450 | 275 | 0.2 |
GV25 | 25 | 83 | 35 | 40 | 12 | 15 | 35 | 5 | 90 | 1.3 | 450 | 275 | 0.2 |
GV30 | 30 | 118 | 54 | 40 | 15 | 15 | 35 | 8 | 110 | 3.5 | 320 | 1250 | 1.2 |
GV35 | 35 | 118 | 54 | 40 | 15 | 15 | 35 | 8 | 110 | 3.4 | 320 | 1250 | 1.2 |
GV40 | 40 | 118 | 54 | 40 | 15 | 15 | 35 | 8 | 140 | 3.3 | 320 | 2180 | 1.2 |
GV45 | 45 | 155 | 54 | 80 | 15 | 18 | 35 | 10 | 140 | 5.8 | 300 | 2180 | 2.2 |
GV50 | 50 | 155 | 54 | 80 | 15 | 18 | 35 | 10 | 140 | 5.7 | 300 | 2180 | 2.2 |
GV55 | 55 | 155 | 54 | 80 | 15 | 18 | 35 | 10 | 140 | 5.6 | 300 | 2180 | 2.2 |
GV60 | 60 | 155 | 54 | 80 | 15 | 18 | 35 | 10 | 140 | 5.5 | 300 | 2180 | 2.2 |
GV70 | 70 | 155 | 54 | 80 | 15 | 18 | 35 | 10 | 140 | 5.3 | 300 | 2180 | 2.2 |
GV80 | 80 | 190 | 64 | 80 | 20 | 20 | 40 | 10 | 155 | 8.7 | 200 | 2930 | 3.5 |
GV90* | 90 | 260 | 90 | 120 | 25 | 30 | 50 | 20 | 220 | 24.5 | 150 | 7250 | 3.5 |
GV100* | 100 | 260 | 90 | 120 | 25 | 30 | 50 | 20 | 220 | 23.5 | 150 | 7250 | 3.5 |
GV110* | 110 | 260 | 90 | 120 | 25 | 30 | 50 | 20 | 220 | 22.5 | 150 | 7250 | 3.5 |
GV120* | 120 | 300 | 110 | 120 | 30 | 30 | 50 | 20 | 240 | 42 | 130 | 11100 | 6 |

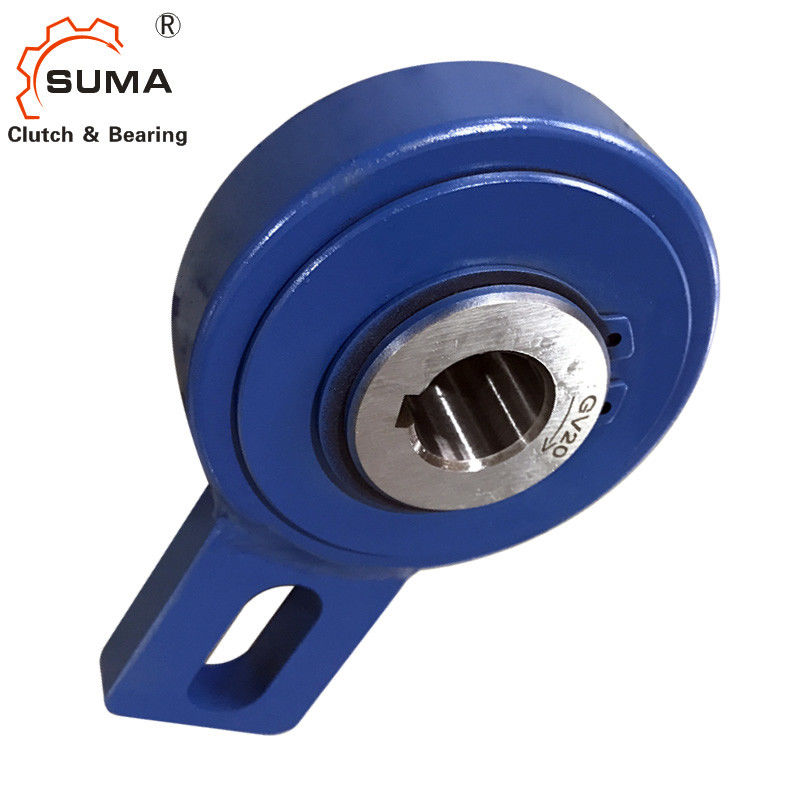

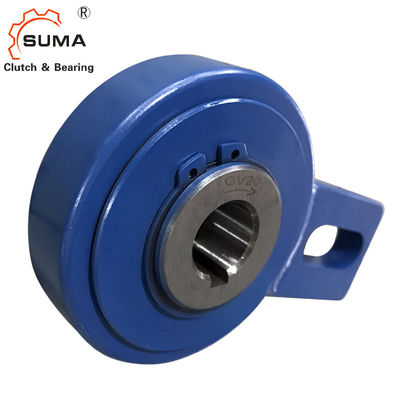

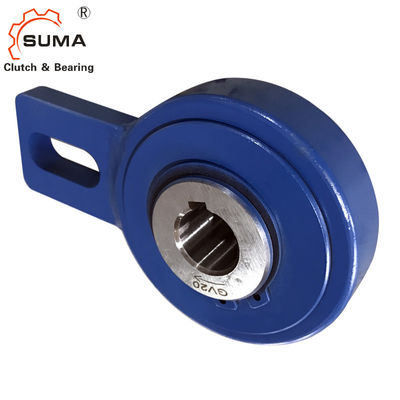

Pictures
