AV55 One Way 54MM Roller Type Backstop Clutch Bearing

AV55 One Way 54MM Roller Type Backstop Clutch Bearing

  • AV55 One Way 54MM Roller Type Backstop Clutch Bearing
AV55 One Way 54MM Roller Type Backstop Clutch Bearing
Product Details:
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: AV55
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD230-USD250 PER PIECE
Packaging Details: Carton Box
Delivery Time: 7-10 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 1000PCS Per Month
Contact Now
Detailed Product Description
Product Name: Backstop Clutch AV55 Material: GCr15 Bearing Steel
Torque Capacity: 2150Nm Rotation Speed: 280RPM
Unit Weight: 5.3Kg Warranty: 1 Year
Size: 55*155*54mm OEM: Accept
Highlight:

AV55 Backstop Clutch Bearing

,

54MM Backstop Clutch Bearing

,

AV55 Backstop Bearing

               AV55 54MM Backstop Clutch Bearing
Technical Datas

  Type AV is a roller type freewheel. It is self-contained, centered by plain bearings for low rotational speeds , and sealed using shield protected metallic labyrinth seals.

Unit is delivered grease lubricated, ready to install in a horizontal or vertical position. Primarily used as a backstop, the torque capacity is high for a minimum space requirement. This design is suitable for use in difficult environments. A bolt, secured to a fixed part of the machine and passing

through the slot in the torque arm, provides the rotational stop. Radial clearance on this bolt

should be equal to 1-3 % of the slot width.

The torque arm and the bearings must not be prestressed. The roller design makes the AV type ideal for light indexing applications.
Dimensions and Capacities

Type Size TKN1) Overrunning speed   Weight Drag torque
AV dH7 nimax D D2 L 1 L B F bB11 N E f TR
[mm] [Nm] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg] [Ncm]
20 265 450 83 42 35 12 40 90 15 35 5 0.8 1.3 18
25 265 450 83 42 35 12 40 90 15 35 5 0.8 1.3 18
30 1200 320 118 60 54 15 40 110 15 35 8 1 3.5 130
35 1200 320 118 60 54 15 40 110 15 35 8 1 3.4 130
40 1200 320 118 60 54 15 40 110 15 35 8 1 3.3 130
45 2150 280 155 90 54 20 80 140 18 47 10 1 5.5 240
50 2150 280 155 90 54 20 80 140 18 47 10 1 5.4 240
55 2150 280 155 90 54 20 80 140 18 47 10 1 5.3 240
60 2150 280 155 90 54 20 80 140 18 47 10 1 5.2 240
70 2150 280 155 90 54 20 80 140 18 47 10 1 5 240
80 2900 200 190 110 64 20 80 155 20 40 10 1.5 8.7 360
90* 7125 150 260 160 90 25 120 220 3 24.5 360
100* 7125 150 260 160 90 25 120 220 3 23.5 360
110* 7125 150 260 160 90 25 120 220 3 22.5 360
120* 11000 130 300 180 110 30 140 260 3 42 600

AV55 One Way 54MM Roller Type Backstop Clutch Bearing 0

Mounting Example

AV55 One Way 54MM Roller Type Backstop Clutch Bearing 1

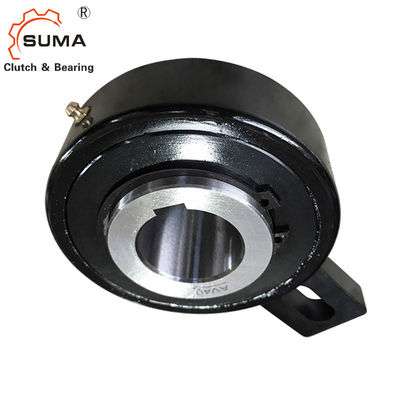

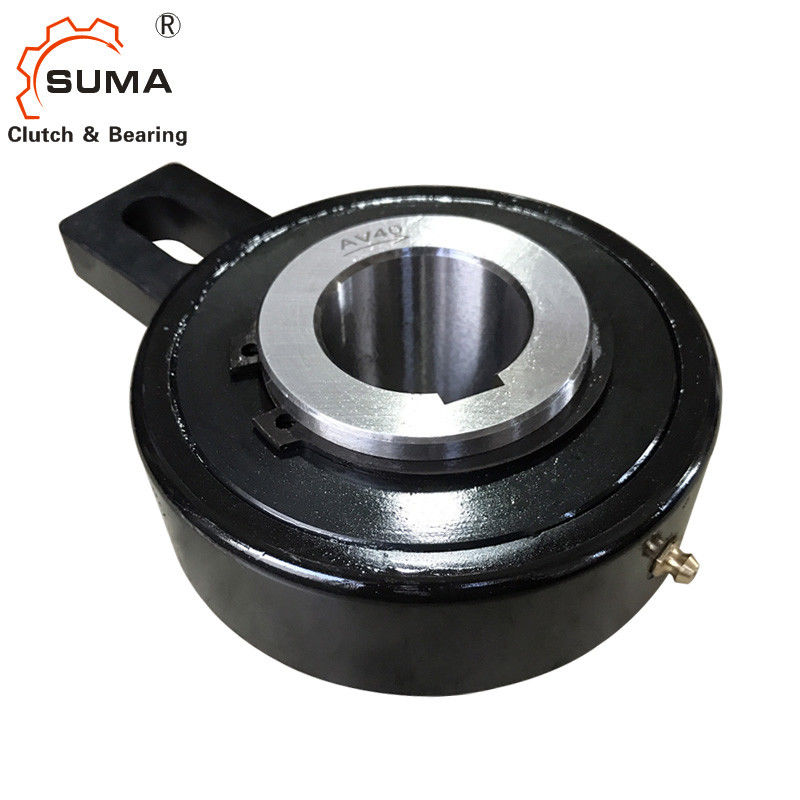

Pictures
 AV55 One Way 54MM Roller Type Backstop Clutch Bearing 2

AV55 One Way 54MM Roller Type Backstop Clutch Bearing 3
