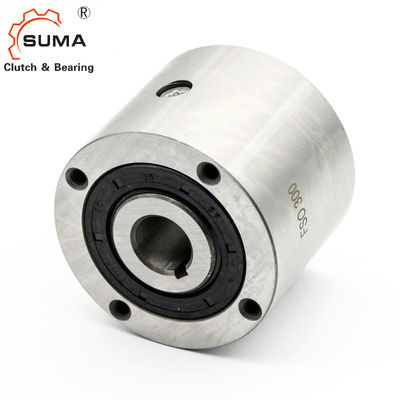

FSO300 HPI300 Backstop Freewheel Clutch One Way Roller Bearing

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: FSO300 HPI300
Minimum Order Quantity: 1
Price: USD92-USD110 PER PIECE
Packaging Details: Carton Box / Wooden Box
Delivery Time: 10-15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,Paypal
Product Name: One Way Bearing Sprag FSO300 HPI300 Torque Capacity: 379 Nm
Bore Range: 12-19mm Outer Diameter: 76.2mm
Thickness: 63.5mm Weight: 1.6KG
Warranty: 1 Year Port: Shanghai , Ningbo
High Light:

Backstop one way roller bearing

,

FSO300 one way roller bearing

,

HPI300 freewheel clutch bearing

FSO300 HPI300 Backstop Clutch One Way Bearing Sprag





Lubrication



Types FSO and HPI are oil lubricated and use standard shaft lip seals.

Type FSO-GR is grease lubricated and can be equipped with contact free labyrinth seals.



Type HPI is specially designed for high speed indexing applications.





Features



Types FSO, FSO-GR, and HPI 300 to 700 are sprag type freewheels self-contained, sealed and bearing supported, using two ball bearings.



Dimensions and Capacities

FSO300 HPI300 Backstop Freewheel Clutch  One Way Roller Bearing 0

Type Size

Torque

TKN1

[Nm]

Overrunning speeds

[min-1]

                                     DIMENSION ( MM ) Lubricant Weight Torque Drag
FSO FSO-GR HPI

FSO

nmax2)

FSO-GR

nmax3)

dH7-bxh

d4)

min-max

A

B

-0.05

C E F G z J K L f FSO FSO..GR HPI [kg] TR [Ncm]
300 379 3000/900 3600/900 15-5x5 12...19 63.5 76.2 60.45 1.6 28.58 66.67 4 M8 13 M6 0.8 7 10 14 1.6 18
400 407 2800/850 3600/850 18-6x6 12...22 69.85 88.9 68.07 1.6 30 73 4 M8 13 M6 0.8 10 20 20 2.7 27
500 1621 2500/800 3000/800 30-8x7 19...33 88.9 107.95 85.73 1.6 45 92 4 M8 16 M6 1.5 22 35 35 4.8 31
600 3105 2200/750 2400/750 45-14x9 24...57 95.25 136.525 92.2 1.6 63.5 120.6 6 M8 16 M6 1.6 52 84 84 8.6 62
700 6900 1600/450 2000/450 60-18x11 48...82 127 180.975 123.85 1.6 90 158.75 8* M10* 20 M6 1.6 168 280 280 19 156





NOTES



1) T max = 2 × T KN » Refer to Selection page 10 to 13
2) Inner race/outer raceg
3) Inner race/outer race labyrinth seal
4) Inch bore available on request
5) Only for oversize bore
Size 600 > 50 mm
Size 700 > 75 mm
*) 6 holes equally spaced at 60° plus 2 extra-holes at 180° » Refer to mounting and maintenance instructions



Mounting and Coupling

FSO300 HPI300 Backstop Freewheel Clutch  One Way Roller Bearing 1

Pictures

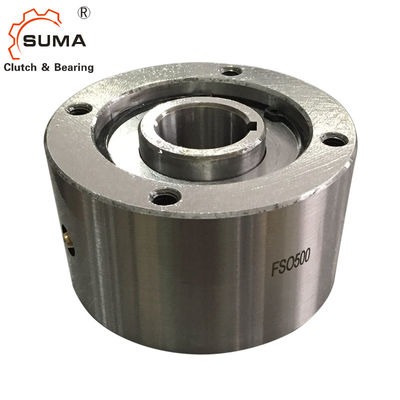

FSO300 HPI300 Backstop Freewheel Clutch  One Way Roller Bearing 2

FSO300 HPI300 Backstop Freewheel Clutch  One Way Roller Bearing 3



FSO300 HPI300 Backstop Freewheel Clutch  One Way Roller Bearing 4FSO300 HPI300 Backstop Freewheel Clutch  One Way Roller Bearing 5
