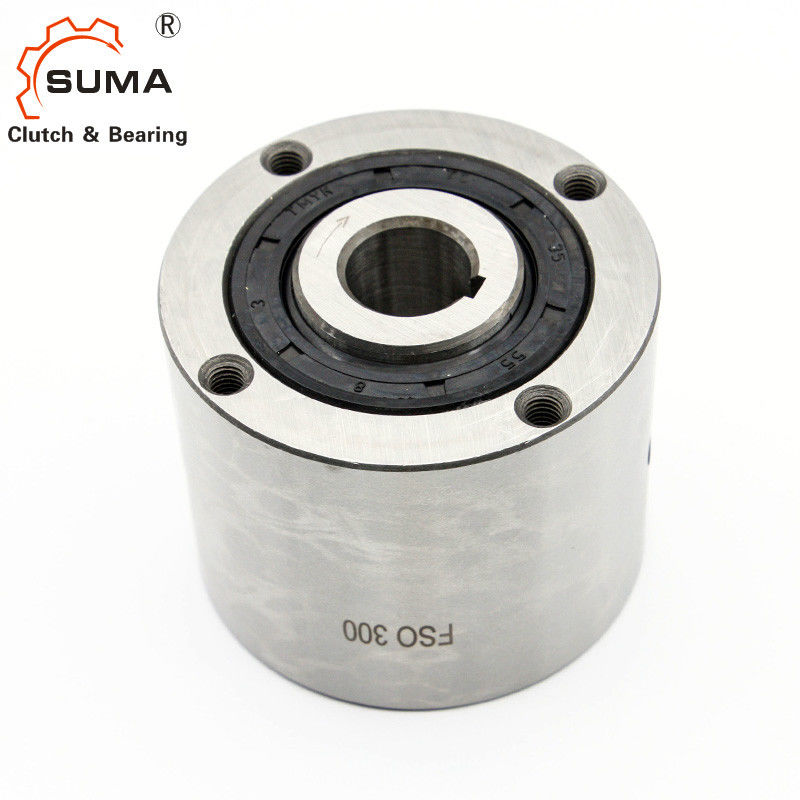

FSO300 HPI300 Backstop Freewheel Clutch One Way Roller Bearing

Name: FSO300 HPI300 Backstop Freewheel Clutch One Way Roller Bearing
Brand: SUMA
SKU: FSO300 HPI300
Price: 92 USD
Availability: InStock
Rating: 4.6 (129 reviews)

Place of Origin	CHINA
Brand Name	SUMA
Certification	ISO SGS
Model Number	FSO300 HPI300

Product Details

Product Name:

One Way Bearing Sprag FSO300 HPI300

Torque Capacity:

379 Nm

Bore Range:

12-19mm

Outer Diameter:

76.2mm

Thickness:

63.5mm

Weight:

1.6KG

Warranty:

1 Year

Port:

Shanghai , Ningbo

MOQ:

High Light:

Backstop one way roller bearing

FSO300 one way roller bearing

HPI300 freewheel clutch bearing

Payment & Shipping Terms

Minimum Order Quantity

5pcs

Price

USD92-USD110 PER PIECE

Packaging Details

Carton Box / Wooden Box

Delivery Time

10-15 Days

Payment Terms

L/C, D/A, D/P, T/T, Western Union,Paypal

Product Description

FSO300 HPI300 Backstop Clutch One Way Bearing Sprag

Lubrication

Types FSO and HPI are oil lubricated and use standard shaft lip seals.

Type FSO-GR is grease lubricated and can be equipped with contact free labyrinth seals.

Type HPI is specially designed for high speed indexing applications.

Features

Types FSO, FSO-GR, and HPI 300 to 700 are sprag type freewheels self-contained, sealed and bearing supported, using two ball bearings.

Dimensions and Capacities

FSO300 HPI300 Backstop Freewheel Clutch One Way Roller Bearing 0

Type	Size	Torque T_KN¹ [Nm]	Overrunning speeds [min^-1]		DIMENSION ( MM )													Lubricant			Weight	Torque Drag
FSO FSO-GR HPI		Torque T_KN¹ [Nm]	FSO n_max²⁾	FSO-GR n_max³⁾	dH7-bxh	d4) min-max	A	B -0.05	C	E	F	G	z	J	K	L	f	FSO	FSO..GR	HPI	[kg]	T_R [Ncm]
	300	379	3000/900	3600/900	15-5x5	12...19	63.5	76.2	60.45	1.6	28.58	66.67	4	M8	13	M6	0.8	7	10	14	1.6	18
	400	407	2800/850	3600/850	18-6x6	12...22	69.85	88.9	68.07	1.6	30	73	4	M8	13	M6	0.8	10	20	20	2.7	27
	500	1621	2500/800	3000/800	30-8x7	19...33	88.9	107.95	85.73	1.6	45	92	4	M8	16	M6	1.5	22	35	35	4.8	31
	600	3105	2200/750	2400/750	45-14x9	24...57	95.25	136.525	92.2	1.6	63.5	120.6	6	M8	16	M6	1.6	52	84	84	8.6	62
	700	6900	1600/450	2000/450	60-18x11	48...82	127	180.975	123.85	1.6	90	158.75	8*	M10*	20	M6	1.6	168	280	280	19	156

NOTES

1) T max = 2 × T KN » Refer to Selection page 10 to 13
2) Inner race/outer raceg
3) Inner race/outer race labyrinth seal
4) Inch bore available on request
5) Only for oversize bore
Size 600 > 50 mm
Size 700 > 75 mm
*) 6 holes equally spaced at 60° plus 2 extra-holes at 180° » Refer to mounting and maintenance instructions

Mounting and Coupling

FSO300 HPI300 Backstop Freewheel Clutch One Way Roller Bearing 1

Pictures

FSO300 HPI300 Backstop Freewheel Clutch One Way Roller Bearing 2

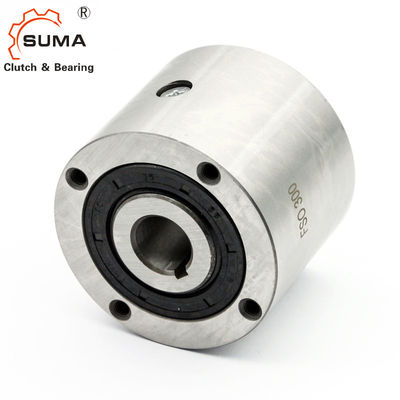

FSO300 HPI300 Backstop Freewheel Clutch One Way Roller Bearing 3

FSO300 HPI300 Backstop Freewheel Clutch One Way Roller Bearing 4
